55BED (2005)
ELECTRICAL 3

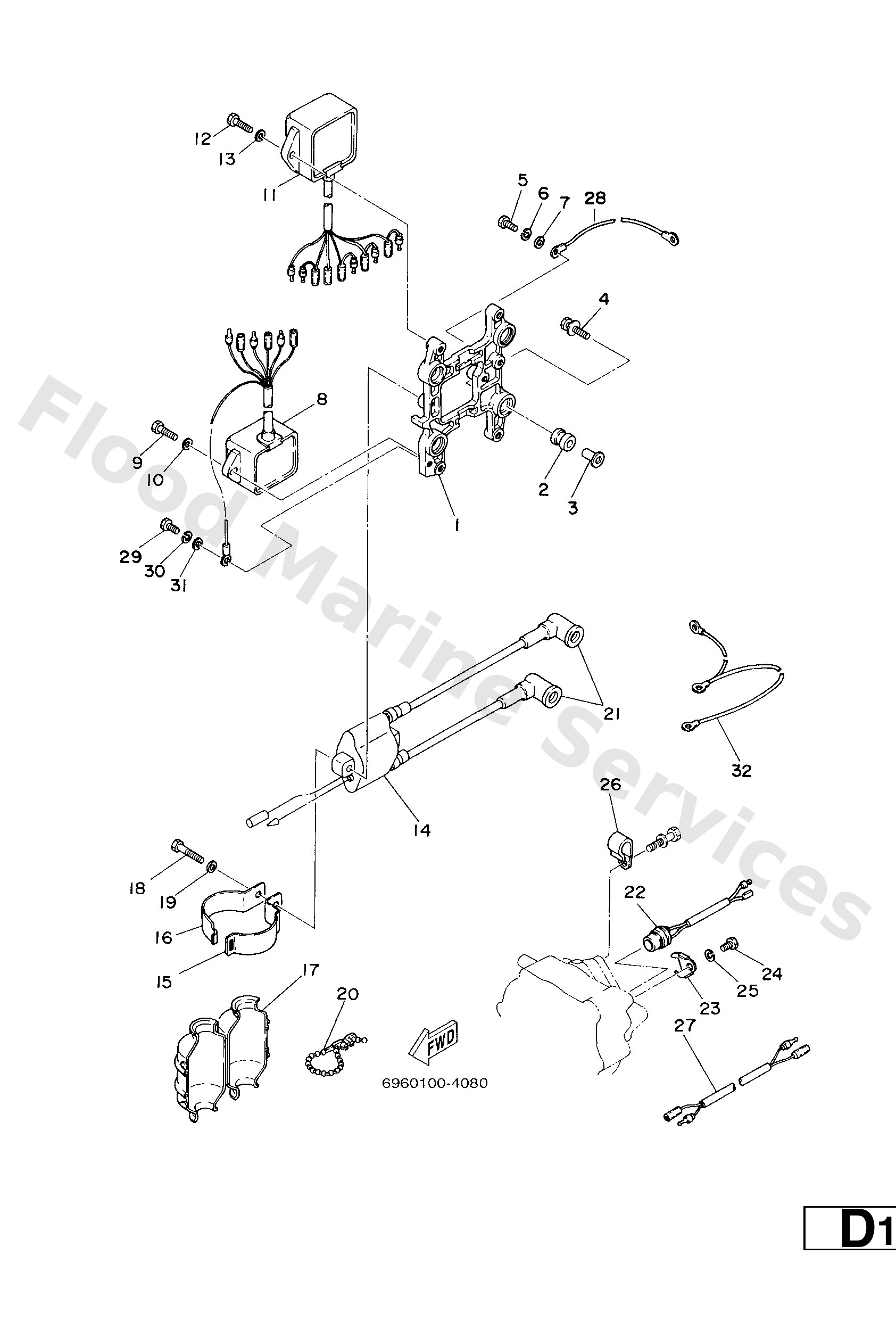

Diagram: ELECTRICAL 3
Parts List
Reference
Description
Price
1
696855420094
Bracket
Loading…
↗
2
6A08231700
Damper, ignition coil
Loading…
↗
3
6244254200
Collar
Loading…
↗
4
9011906M59
Bolt, with washer
Loading…
↗
5
9701306012
Bolt(gh1)
Loading…
↗
6
9290306100
Washer(6a1)
Loading…
↗
7
9290306600
Washer, plain (646)
Loading…
↗
8
6968554012
C.d.i. unit assembly
Loading…
↗
9
9701306020
Bolt(62y)
Loading…
↗
11
6968559010
Control unit ass'y
Loading…
↗
14
6968557011
Ignition coil assembly
Loading…
↗
15
6968144300
Clamp 1
Loading…
↗
16
6968144400
Clamp 2
Loading…
↗
17
6968191600
Cover, terminal
Loading…
↗
18
9709506030
Bolt(jf7)
Loading…
↗
19
9299506600
Washer, plain (646)
Loading…
↗
20
9046420M04
Clamp
Loading…
↗
21
6638237001
Plug cap assembly
Loading…
↗
21
6G18237021
FOR CAR
Plug cap assembly
Loading…
↗
22
6888256000
Thermo switch assembly
Loading…
↗
23
6638258800
Plate
Loading…
↗
24
9701306010
Bolt(63v)
Loading…
↗
26
9046506M86
Clamp
Loading…
↗
27
6968253100
Wire, Lead
Loading…
↗
28
6628251900
Wire, earth lead
Loading…
↗
32
6978251900
Wire,earth lead
Loading…
↗
