E115AWH (2003)
ELECTRICAL 3

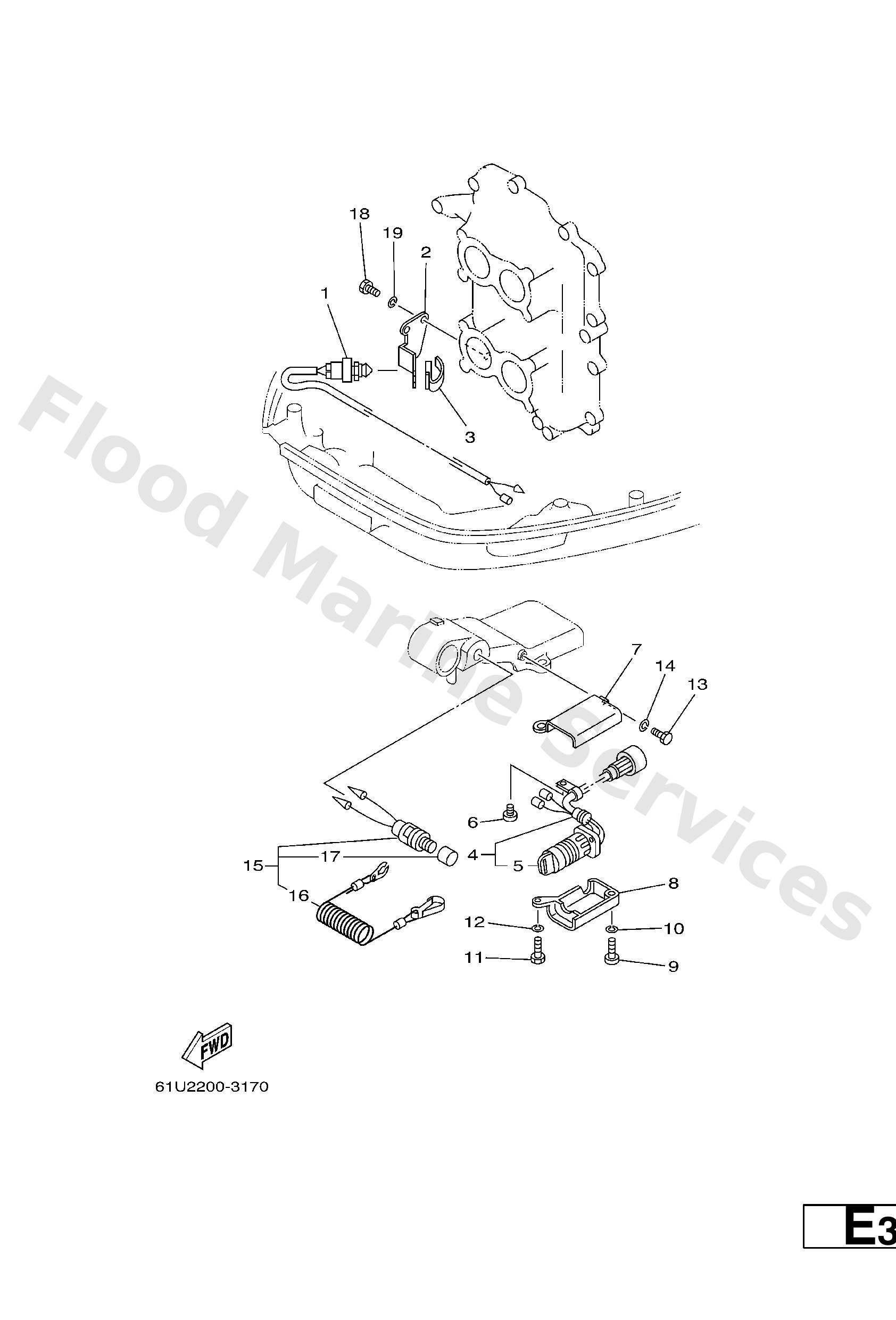

Diagram: ELECTRICAL 3
Parts List
Reference
Description
Price
1
688−82540−11
Neutral switch assembly
Loading…
↗
2
6E5−82554−00
Stay, neutral switch
Loading…
↗
3
663−82555−01
Plate
Loading…
↗
4
63D−82510−10
Main switch assembly
Loading…
↗
5
676−82577−00
Cap, key
Loading…
↗
6
97885−06012
Screw, pan head(62j)
Loading…
↗
7
697−8252E−01−4D
15 −
Loading…
↗
8
697−8252F−01−4D
Cover, main switch 2
Loading…
↗
9
97880−06025
Screw, pan head(6b0)
Loading…
↗
10
92990−06100
Washer(6a1)
Loading…
↗
11
97013−06030
Bolt
Loading…
↗
12
92903−06100
Washer(6a1)
Loading…
↗
13
97013−06020
Bolt(62y)
Loading…
↗
15
69W−82575−00
Engine stop switch assembly
Loading…
↗
16
682−82556−00
Lanyard, stop switch
Loading…
↗
17
689−8257Y−00
Cap
Loading…
↗
18
97095−06016
Bolt, hexagon deep recess
Loading…
↗
19
92995−06100
Washer(6a1)
Loading…
↗
