E48CMH (2003)
ELECTRICAL 3

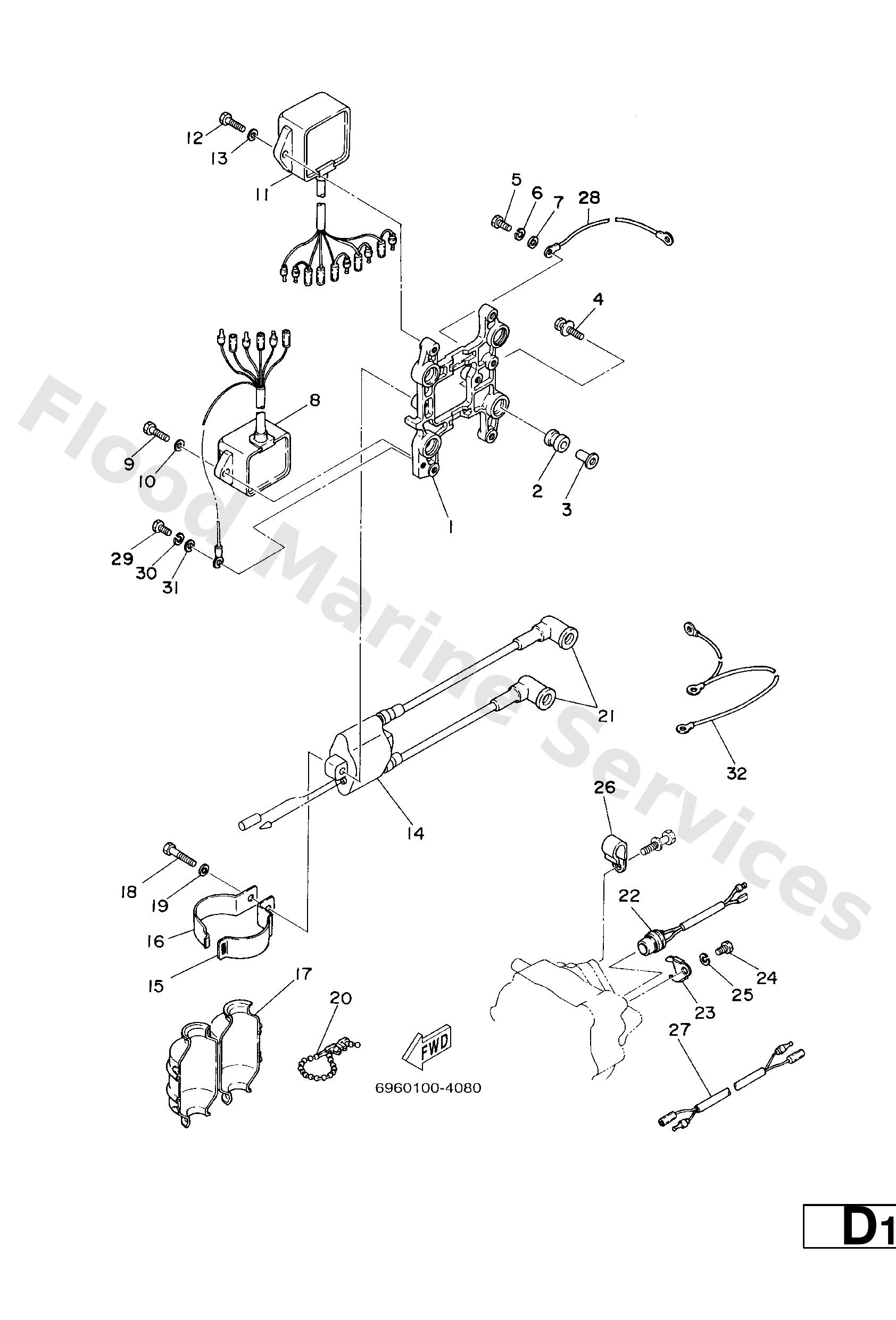

Diagram: ELECTRICAL 3
Parts List
Reference
Description
Price
1
696−85542−00−94
Bracket
Loading…
↗
2
6A0−82317−00
Damper, ignition coil
Loading…
↗
3
624−42542−00
Collar
Loading…
↗
4
90119−06M59
Bolt, with washer
Loading…
↗
5
97013−06012
Bolt(gh1)
Loading…
↗
6
92903−06100
Washer(6a1)
Loading…
↗
7
92903−06600
Washer, plain (646)
Loading…
↗
8
696−85540−11
C.d.i. unit assembly
Loading…
↗
9
97013−06020
Bolt(62y)
Loading…
↗
11
696−85590−10
Control unit ass'y
Loading…
↗
14
696−85570−11
Ignition coil assembly
Loading…
↗
15
696−81443−00
Clamp 1
Loading…
↗
16
696−81444−00
Clamp 2
Loading…
↗
17
696−81916−00
Cover, terminal
Loading…
↗
18
97095−06030
Bolt(jf7)
Loading…
↗
19
92995−06600
Washer, plain (646)
Loading…
↗
20
90464−20M04
Clamp
Loading…
↗
21
663−82370−01
Plug cap assembly
Loading…
↗
21
6G1−82370−21
FOR CARIB
Plug cap assembly
Loading…
↗
22
688−82560−00
Thermo switch assembly
Loading…
↗
23
663−82588−00
Plate
Loading…
↗
24
97013−06010
Bolt(63v)
Loading…
↗
26
90465−06M86
Clamp
Loading…
↗
27
696−82531−00
Wire, Lead
Loading…
↗
28
662−82519−00
Wire, earth lead
Loading…
↗
32
697−82519−00
Wire,earth lead
Loading…
↗
