F100DET (2011)
ELECTRICAL 3

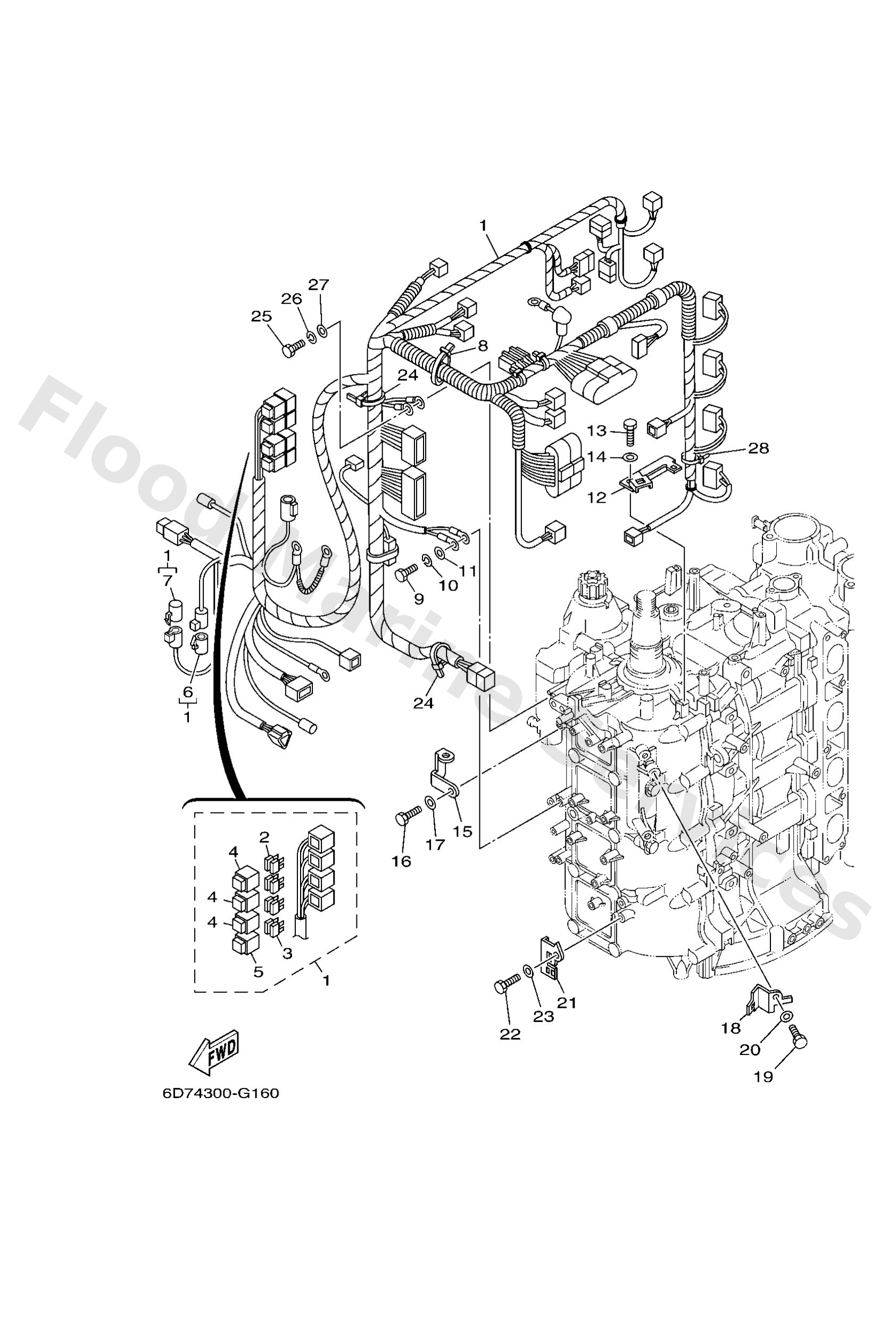

Diagram: ELECTRICAL 3
Parts List
Reference
Description
Price
1
6D88259030
Wire harness assembly
Loading…
↗
2
67F8215100
Fuse
Loading…
↗
3
67F8215110
Fuse
Loading…
↗
4
67F8215B10
Cap (yellow)
Loading…
↗
5
67F8215B20
Cap (green)
Loading…
↗
6
6P28258200
Cap 1 (female)
Loading…
↗
7
6P28258210
Cap 1 (male)
Loading…
↗
8
9046476001
Clamp
Loading…
↗
9
9709506016
Bolt, hexagon deep recess
Loading…
↗
10
9299506100
Washer(6a1)
Loading…
↗
11
9299506600
Washer, plain (646)
Loading…
↗
12
6D88258801
Plate
Loading…
↗
13
9709506012
Bolt(gh1)
Loading…
↗
15
6D88258101
Stay, cord clamp
Loading…
↗
16
9709506014
Bolt(gj3)
Loading…
↗
18
6D88238901
Plate 2
Loading…
↗
21
6D88239801
Plate 3
Loading…
↗
24
9046513M18
Clamp
Loading…
↗
28
9046513M11
Clamp (6e5)
Loading…
↗
