F150BET (2014)
ELECTRICAL 3

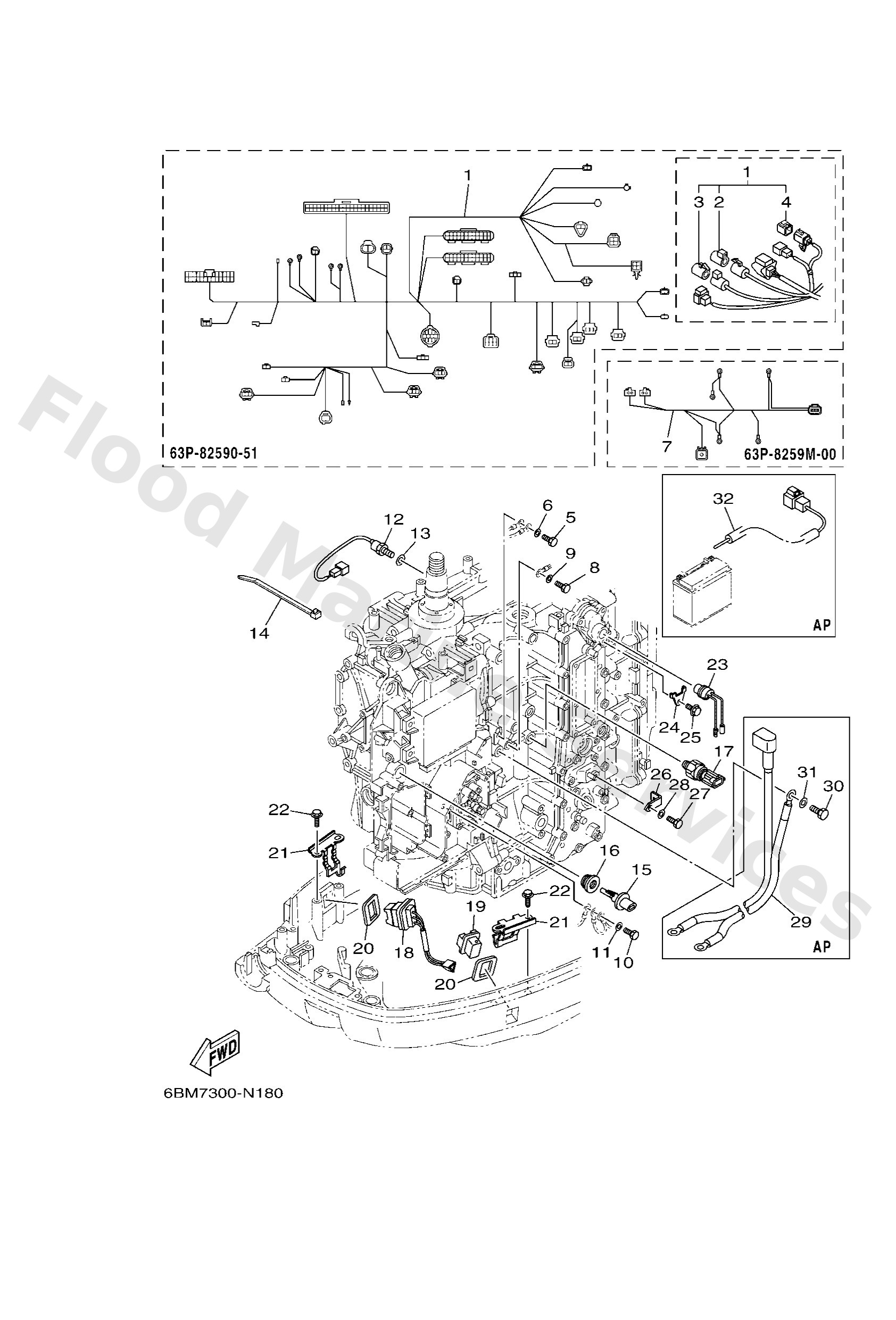

Diagram: ELECTRICAL 3
Parts List
Reference
Description
Price
1
63P8259051
Wire harness assembly
Loading…
↗
2
6DA8258200
Cap 1 (female)
Loading…
↗
3
6DA8258210
Cap 1 (male)
Loading…
↗
4
6Y88258211
White cap 1 (4pin)
Loading…
↗
5
9709506016
Bolt, hexagon deep recess
Loading…
↗
6
9299506600
Washer, plain (646)
Loading…
↗
7
63P8259M00
Wire harness assembly 2
Loading…
↗
10
9709506012
Bolt(gh1)
Loading…
↗
12
61A8579000
Thermosensor assembly
Loading…
↗
13
9299010600
Washer, plate
Loading…
↗
14
9046511M10
Clamp
Loading…
↗
15
63P8588600
Sensor, air temperature
Loading…
↗
16
63P1443500
Grommet
Loading…
↗
17
6AW8365100
Sender, oil pressure
Loading…
↗
18
69J8256300
Trim & tilt switch assembly
Loading…
↗
19
69J4272301
Cover, bottom
Loading…
↗
20
69J8258700
Gasket
Loading…
↗
21
63P8361401
Bracket
Loading…
↗
22
9010906M86
Bolt
Loading…
↗
23
6P28256001
Thermo switch assembly
Loading…
↗
24
6E98258800
Plate
Loading…
↗
25
9010906M80
Bolt
Loading…
↗
26
63P8366P01
Bracket 4
Loading…
↗
29
63P8210501
AP
Battery cable
Loading…
↗
30
9709508016
AP
Bolt, hexagon deep recess
Loading…
↗
31
9299508600
AP
Washer, plain (663)
Loading…
↗
32
68F8194902
AP
Wire, lead
Loading…
↗
