Yamaha Outboard Parts - ELECTRICAL 3 - F15CMH (2014) | Flood Marine

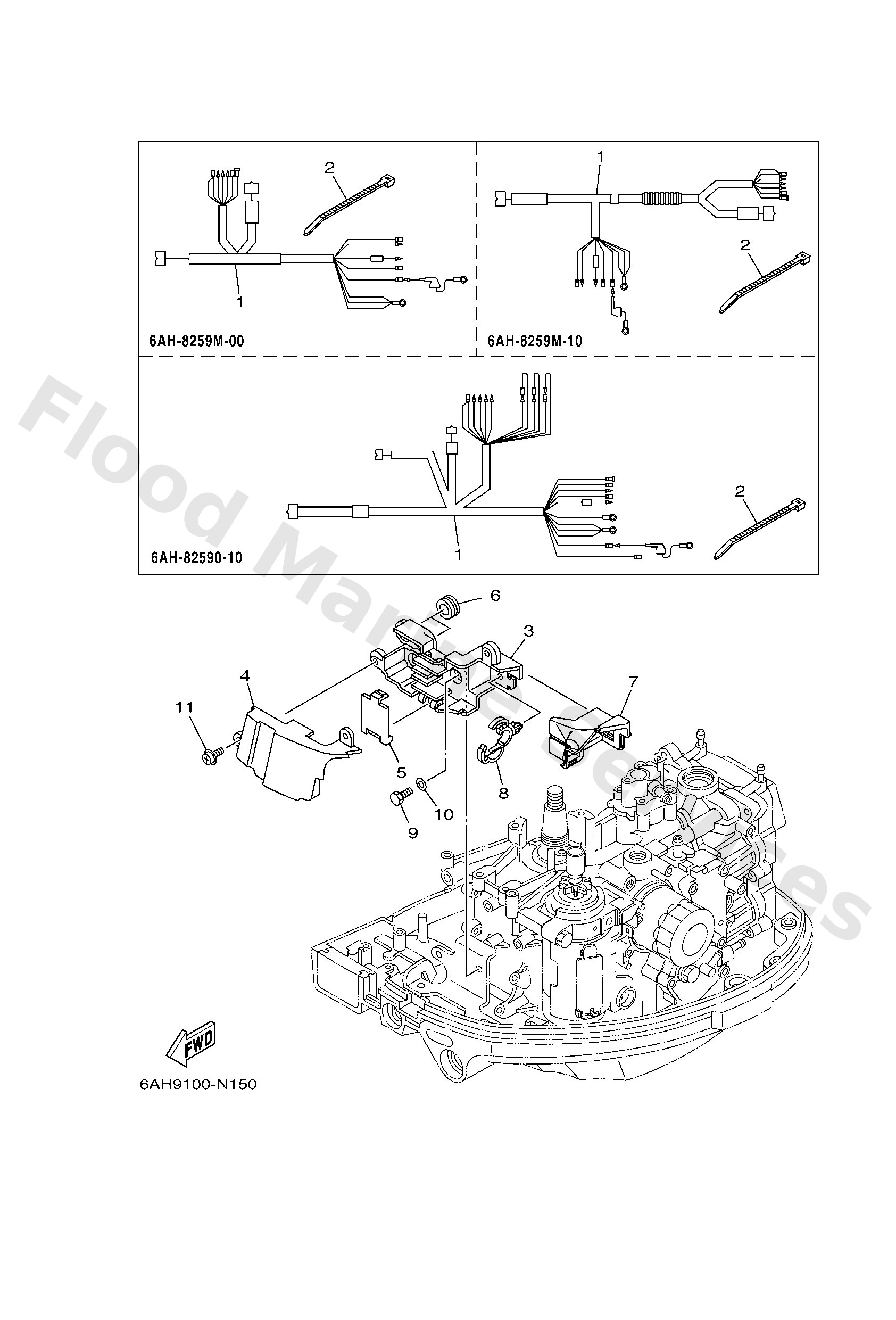

Diagram: ELECTRICAL 3

Diagram

Parts List

Reference
Description
Price


1
6AH8259M10
Wire harness & extension wire
Loading…

↗
1
6AH8259M00
Wire harness & extension wire
Loading…

↗
1
6AH8259010
Wire harness & extension wire
Loading…

↗
2
9046513M18
Clamp
Loading…

↗
3
6AH8552A00
Housing
Loading…

↗
4
6AH8552E00
Cover, case
Loading…

↗
5
6AH8553700
Cover
Loading…

↗
6
9048019368
Grommet(75v)
Loading…

↗
7
6AH8554700
Damper
Loading…

↗
8
9046420181
Clamp(4ap)
Loading…

↗
9
9709506014
Bolt(gj3)
Loading…

↗
10
9299506600
Washer, plain (646)
Loading…

↗
11
9798506214
Screw, with washer
Loading…

↗
