F175CET (2018)
ELECTRICAL 3

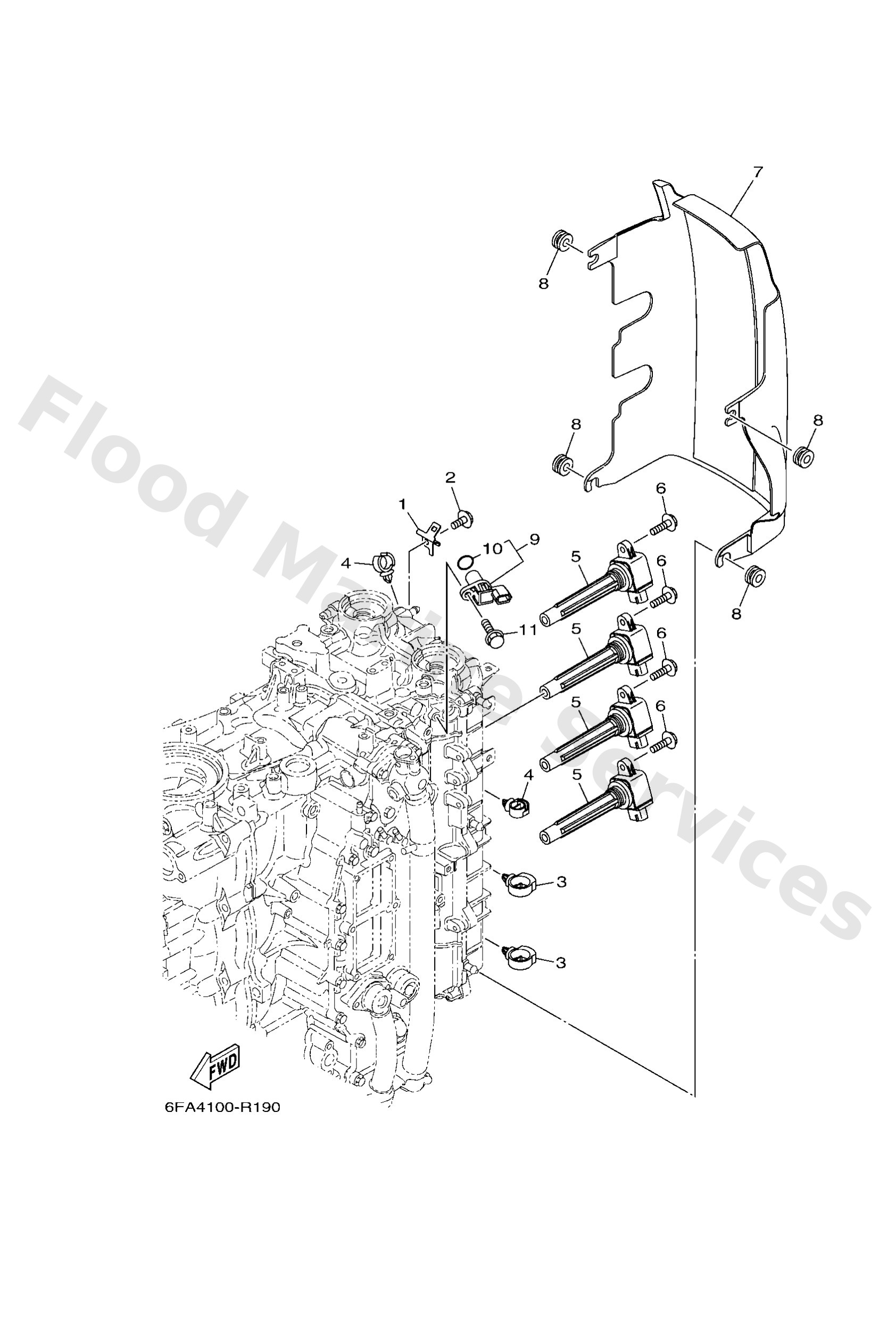

Diagram: ELECTRICAL 3
Parts List
Reference
Description
Price
1
6D88238901
Plate 2
Loading…
↗
2
9589506012
Bolt, flange deep recess
Loading…
↗
3
9046420181
Clamp(4ap)
Loading…
↗
4
9046413249
Clamp
Loading…
↗
5
6CB8231000
Ignition coil assembly
Loading…
↗
6
9589506025
Bolt, flange deep recess
Loading…
↗
7
6DA8231400
Cover, ignition coil
Loading…
↗
8
9048012314
Grommet(3aa)
Loading…
↗
9
6P28589600
Sensor, cam position
Loading…
↗
10
6P28507500
O-ring
Loading…
↗
11
9759506520
Bolt(7u8)
Loading…
↗
