F20DET (2011)
ELECTRICAL 3

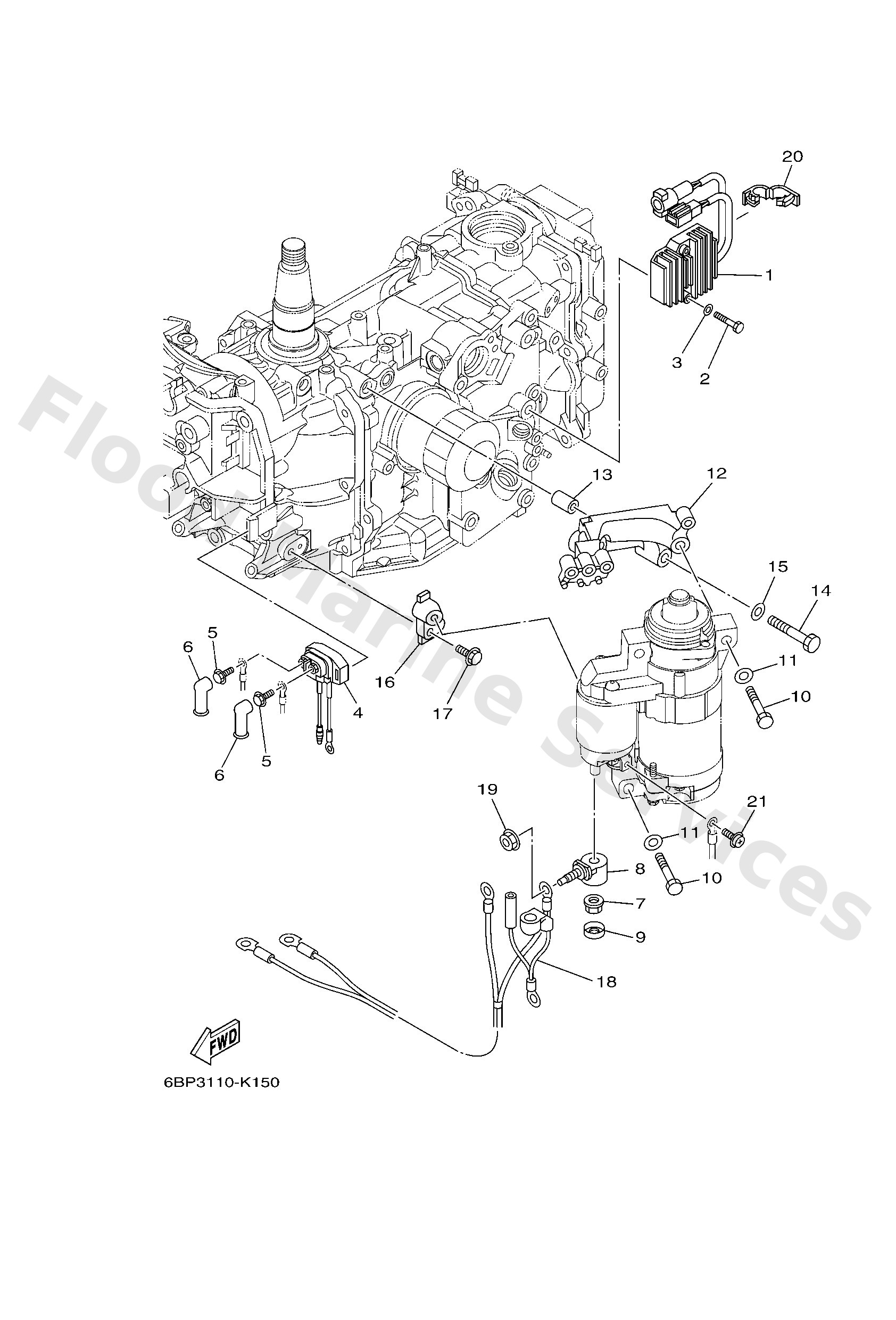

Diagram: ELECTRICAL 3
Parts List
Reference
Description
Price
1
6BL8196000
Rectifier & regulator assembly
Loading…
↗
2
9709506040
Bolt (682)
Loading…
↗
3
9299506600
Washer, plain (646)
Loading…
↗
4
68T8194000
Starter relay assembly
Loading…
↗
5
9759506610
Bolt, hexagon w/w deep recess
Loading…
↗
6
6G58211910
Cover, lead wire
Loading…
↗
7
6BL8182A00
Nut
Loading…
↗
8
6BL8192500
Terminal
Loading…
↗
9
6BL8183X00
Cap, terminal
Loading…
↗
10
9701308045
Bolt
Loading…
↗
11
9290308600
Washer, plain (663)
Loading…
↗
12
6BL8182200
Bracket, starting motor
Loading…
↗
13
9959010114
Pin, dowel
Loading…
↗
16
6BL8182300
Stay, starting motor
Loading…
↗
17
9757506520
Bolt, hexagon w/w deep recess
Loading…
↗
18
6BL8210500
Battery cable
Loading…
↗
19
9017908003
Nut
Loading…
↗
20
9046418001
Clamp
Loading…
↗
21
9015905M12
Screw, with washer(6t4)
Loading…
↗
