F20GMH (2022)
ELECTRICAL 3

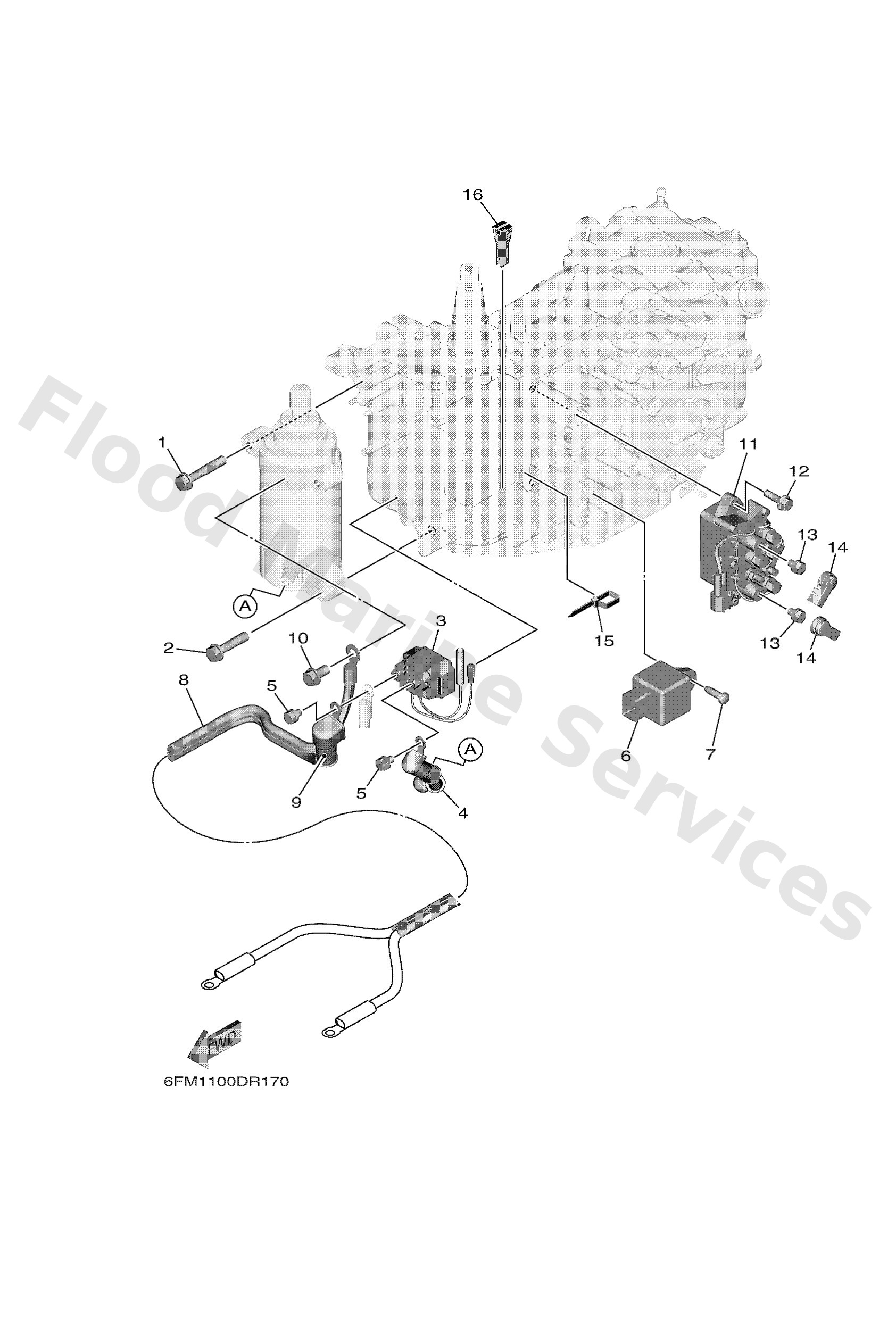

Diagram: ELECTRICAL 3
Parts List
Reference
Description
Price
1
9751308545
Bolt, with washer
Loading…
↗
2
9751308535
Bolt, with washer
Loading…
↗
3
6FM8194000
Starter relay assembly
Loading…
↗
4
6AH8211701
Wire, lead
Loading…
↗
5
97E9506610
Bolt, hexagon w/w deep recess
Loading…
↗
6
68V8195000
Relay assembly
Loading…
↗
7
9778060620
Screw, tapping(6k8)
Loading…
↗
8
6FM8210501
Battery cable (l: 2.0m)
Loading…
↗
9
6P28211900
Cover, lead wire
Loading…
↗
10
97E9508516
Bolt, hexagon w/w deep recess
Loading…
↗
11
63P8195000
Relay assembly
Loading…
↗
12
95D9506020
Bolt, flange deep recess
Loading…
↗
14
6P28183X00
Cap, terminal
Loading…
↗
15
9046513M11
Clamp (6e5)
Loading…
↗
16
67F2812A00
Puller, fuse
Loading…
↗
