F225BET (2024)
ELECTRICAL 3

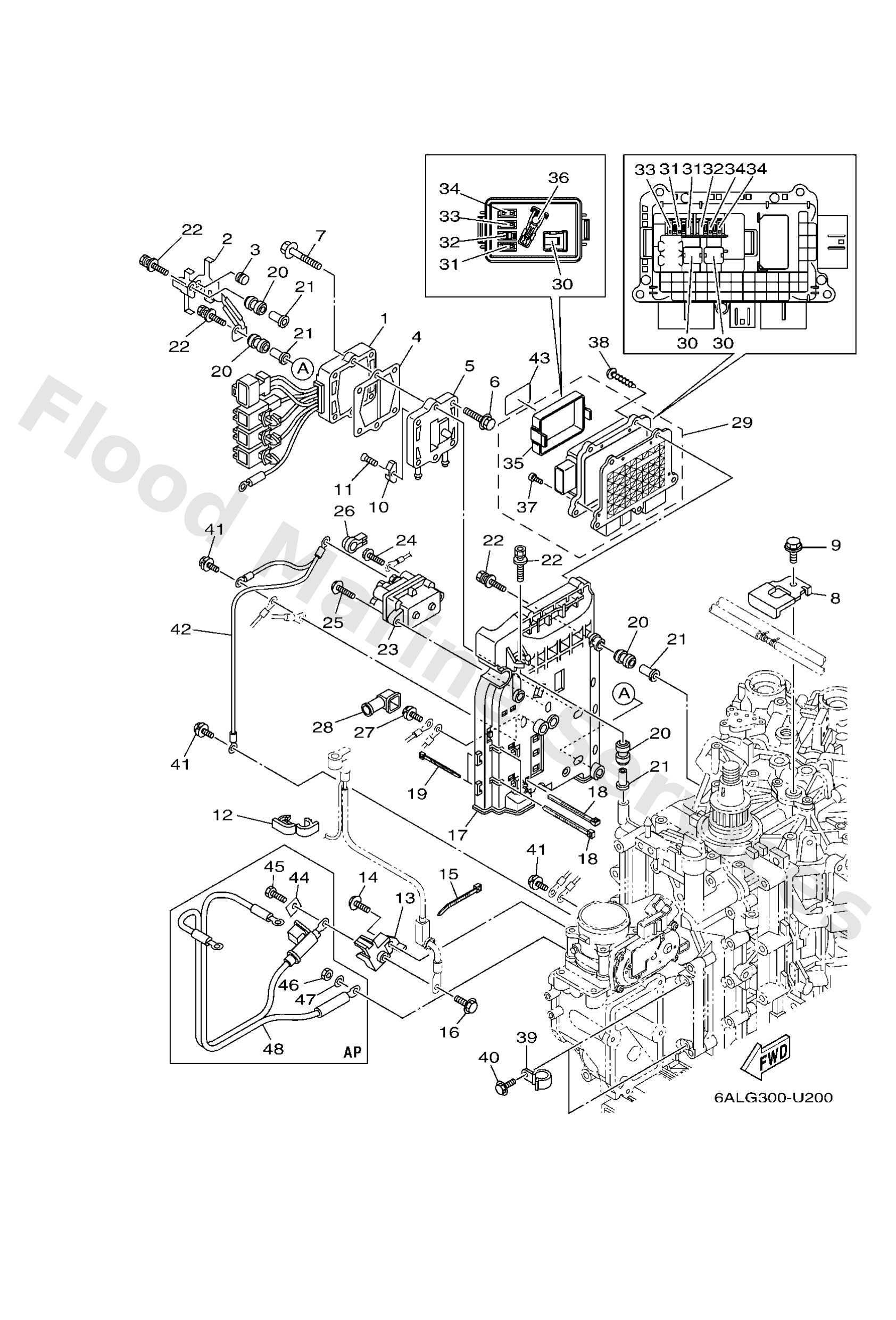

Diagram: ELECTRICAL 3
Parts List
Reference
Description
Price
1
6P28196012
Rectifier & regulator assembly
Loading…
↗
2
6P28161410
Protector
Loading…
↗
3
2D11473701
Damper, muffler
Loading…
↗
4
60V81975A0
Plate, rectifier fitting
Loading…
↗
5
6P281972009S
Cover, rectifier
Loading…
↗
6
9011906MA3
Bolt, with washer
Loading…
↗
7
9011906MA5
Bolt, with washer
Loading…
↗
8
6P21249100
Clamp 1
Loading…
↗
9
97E9506512
Bolt, hexagon w/w deep recess
Loading…
↗
10
6E51132500
Anode
Loading…
↗
11
9878004015
Screw, flat head(ga5)
Loading…
↗
12
9046418004
Clamp
Loading…
↗
13
6P28192501
Terminal
Loading…
↗
14
97E9508520
Bolt, hexagon w/w deep recess
Loading…
↗
15
9046511M52
Clamp(6e7)
Loading…
↗
16
97E9508516
Bolt, hexagon w/w deep recess
Loading…
↗
17
6P28194810
Bracket
Loading…
↗
19
9046514M66
Clamp
Loading…
↗
20
6A08231701
Damper, ignition coil
Loading…
↗
21
9038706119
Collar
Loading…
↗
22
9011906294
Bolt, with washer
Loading…
↗
23
63P8195000
Relay assembly
Loading…
↗
24
97E9506610
Bolt, hexagon w/w deep recess
Loading…
↗
25
9751306525
Bolt, with washer(61b)
Loading…
↗
26
6P28183X00
Cap, terminal
Loading…
↗
27
97E9506616
Bolt, hexagon w/w deep recess
Loading…
↗
28
6P28211900
Cover, lead wire
Loading…
↗
29
6DA8217012
Fuse box assembly
Loading…
↗
30
6CB8215141
Fuse (60a)
Loading…
↗
31
6CB8215100
Fuse (10a)
Loading…
↗
32
6CB8215110
Fuse (15a)
Loading…
↗
33
6CB8215120
Fuse (20a)
Loading…
↗
34
6CB8215130
Fuse (30a)
Loading…
↗
35
6CB8554410
Cover
Loading…
↗
36
6CB2812A00
Puller, fuse
Loading…
↗
37
6P28211300
Screw (m3)
Loading…
↗
38
9778050620
Screw, tapping
Loading…
↗
39
9046208026
Clamp
Loading…
↗
40
97E9506516
Bolt, hexagon w/w deep recess
Loading…
↗
42
6P28259M10
Wire harness assembly 2
Loading…
↗
43
6DA8191911
Graphic, regulator
Loading…
↗
44
6P28192300
AP
Washer
Loading…
↗
45
97D9508016
AP
Bolt, hexagon deep recess
Loading…
↗
46
9533308600
AP
Nut(6l2)
Loading…
↗
47
9290308100
AP
Ybs67-8 washer, spring
Loading…
↗
48
6P28210503
AP
Wire harness
Loading…
↗
