F250NSB2 (2024)
ELECTRICAL 3

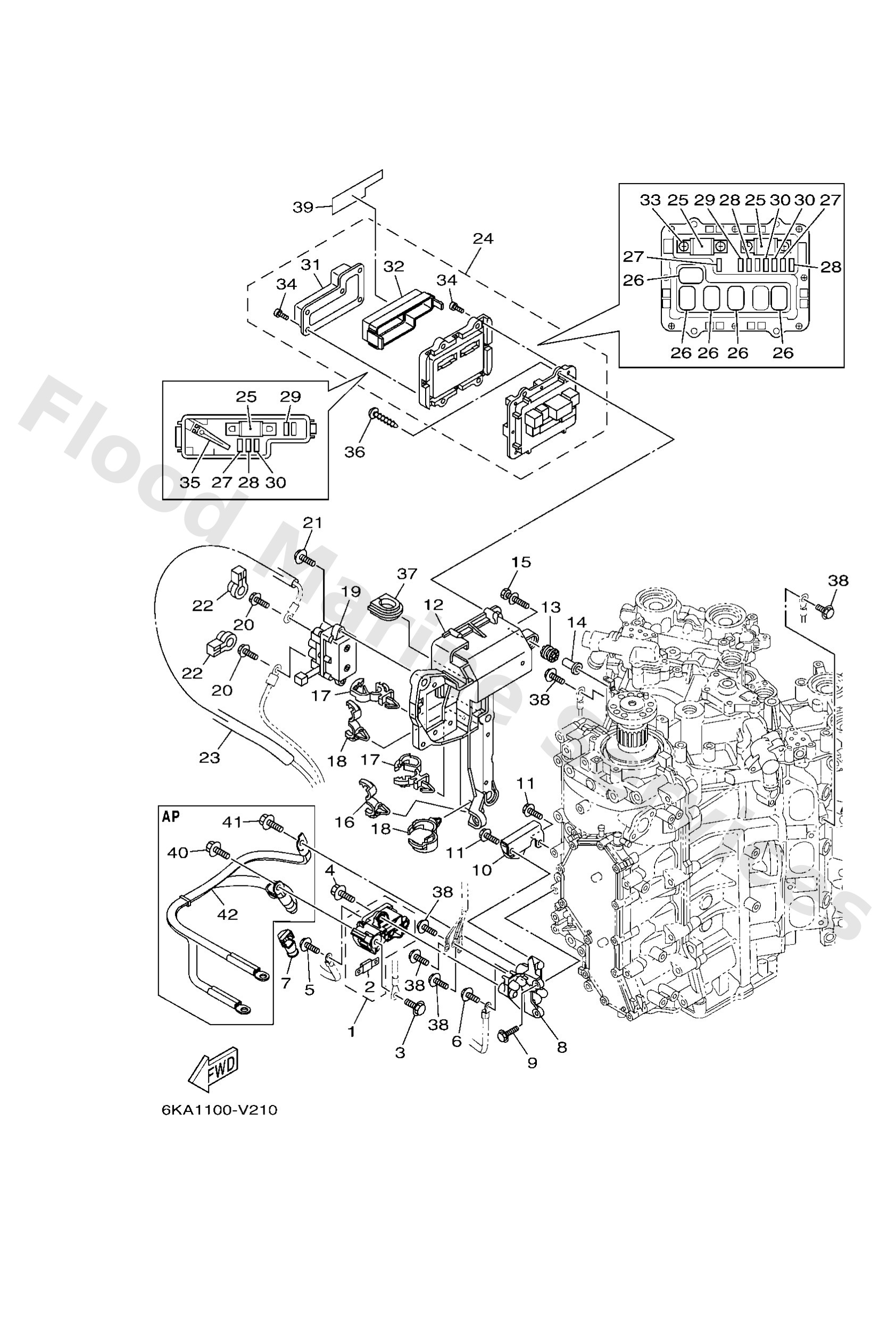

Diagram: ELECTRICAL 3
Parts List
Reference
Description
Price
1
6KA8192000
Terminal assembly
Loading…
↗
2
6GR8215100
Fuse (100a)
Loading…
↗
3
95D9508016
Bolt, flange deep recess
Loading…
↗
4
95D9508020
Bolt, flange deep recess
Loading…
↗
5
97E9506516
Bolt, hexagon w/w deep recess
Loading…
↗
7
6GR8211900
Cover, lead wire
Loading…
↗
8
6KA8192900
Bracket, terminal
Loading…
↗
9
95D9506020
Bolt, flange deep recess
Loading…
↗
10
6KA8258800
Plate
Loading…
↗
11
95D9506016
Bolt, flange deep recess
Loading…
↗
12
6CB8194802
Bracket
Loading…
↗
13
64J8551601
Spacer
Loading…
↗
14
69M4275801
Collar
Loading…
↗
15
9011906293
Bolt, with washer
Loading…
↗
16
9046413249
Clamp
Loading…
↗
17
9046412183
Clamp(jn2)
Loading…
↗
18
9046420181
Clamp(4ap)
Loading…
↗
19
6AW8195000
Relay assembly
Loading…
↗
20
97E9506610
Bolt, hexagon w/w deep recess
Loading…
↗
21
9751306520
Bolt, with washer(61b)
Loading…
↗
22
6P28183X00
Cap, terminal
Loading…
↗
23
9044615006
Hose
Loading…
↗
24
6CE8217011
Fuse box assembly
Loading…
↗
25
6CE8215100
Fuse (100a)
Loading…
↗
26
6AW8195A00
Relay assembly
Loading…
↗
27
67F8215140
Fuse (10a)
Loading…
↗
28
67F8215150
Fuse (15a)
Loading…
↗
29
67F8215100
Fuse
Loading…
↗
30
67F8215110
Fuse
Loading…
↗
31
6CB8163910
Cover
Loading…
↗
32
6CB8554400
Case
Loading…
↗
33
68F8284600
Screw, pan head (m5)
Loading…
↗
34
6P28211300
Screw (m3)
Loading…
↗
35
67F2812A00
Puller, fuse
Loading…
↗
36
9778050620
Screw, tapping
Loading…
↗
37
6P28133601
Grommet
Loading…
↗
39
6CE8191921
Graphic, regulator
Loading…
↗
40
97E9508516
AP
Bolt, hexagon w/w deep recess
Loading…
↗
42
6KA8210500
AP
Wire harness
Loading…
↗
