F300XCB (2025)
ELECTRICAL 3

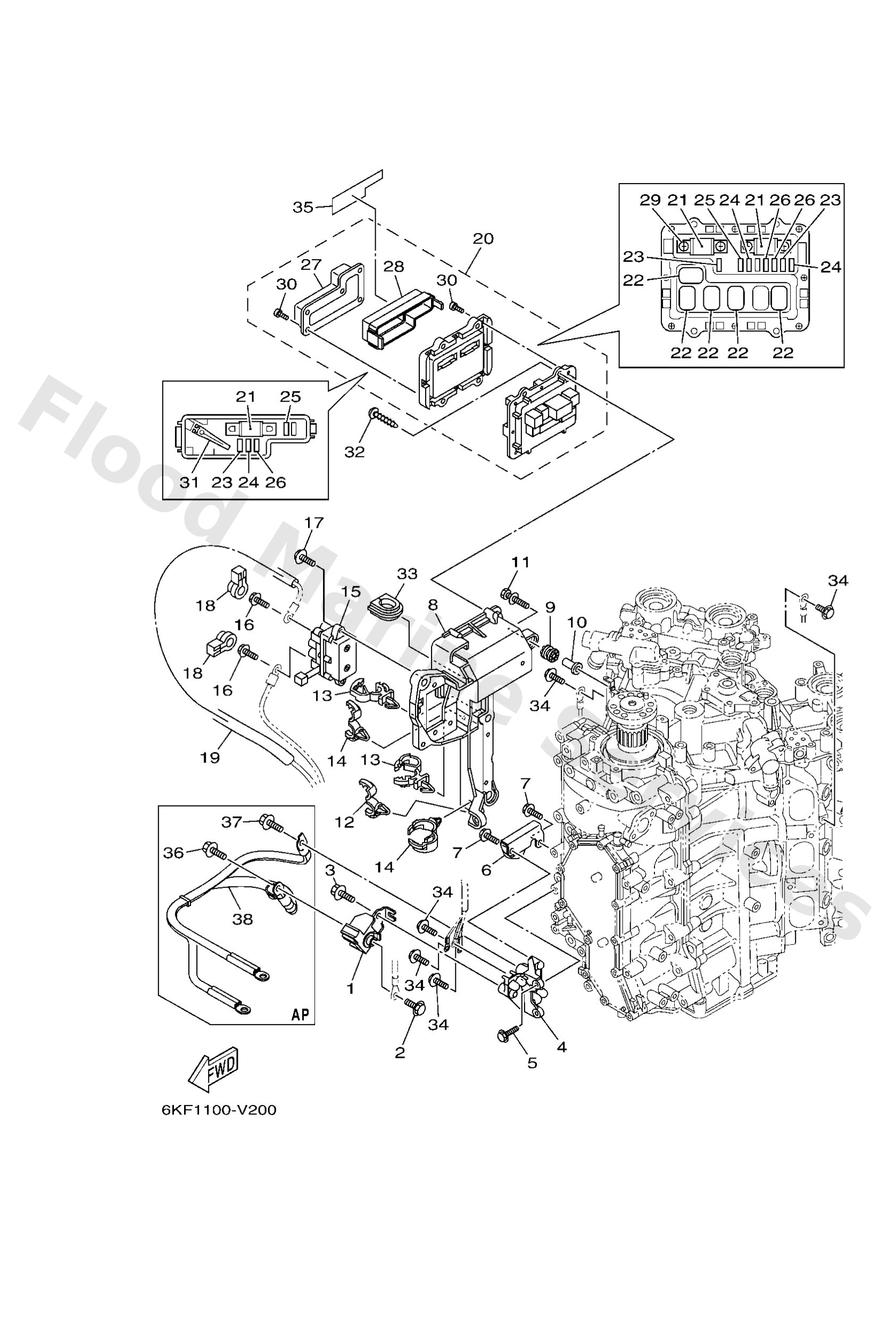

Diagram: ELECTRICAL 3
Parts List
Reference
Description
Price
1
6KF8192500
Terminal
Loading…
↗
2
95D9508016
Bolt, flange deep recess
Loading…
↗
3
9581408020
Bolt, flange(4hm)
Loading…
↗
4
6KA8192900
Bracket, terminal
Loading…
↗
5
95D9506020
Bolt, flange deep recess
Loading…
↗
6
6KA8258800
Plate
Loading…
↗
7
95D9506016
Bolt, flange deep recess
Loading…
↗
8
6CB8194802
Bracket
Loading…
↗
9
64J8551601
Spacer
Loading…
↗
10
69M4275801
Collar
Loading…
↗
11
9011906293
Bolt, with washer
Loading…
↗
12
9046413249
Clamp
Loading…
↗
13
9046412183
Clamp(jn2)
Loading…
↗
14
9046420181
Clamp(4ap)
Loading…
↗
15
6AWW819510
Relay assembly
Loading…
↗
16
97E9506610
Bolt, hexagon w/w deep recess
Loading…
↗
17
9751306520
Bolt, with washer(61b)
Loading…
↗
18
6P28183X00
Cap, terminal
Loading…
↗
19
9044615006
Hose
Loading…
↗
20
6CE8217011
Fuse box assembly
Loading…
↗
21
6CE8215100
Fuse (100a)
Loading…
↗
22
6AW8195A00
Relay assembly
Loading…
↗
23
67F8215140
Fuse (10a)
Loading…
↗
24
67F8215150
Fuse (15a)
Loading…
↗
25
67F8215100
Fuse
Loading…
↗
26
67F8215110
Fuse
Loading…
↗
27
6CB8163910
Cover
Loading…
↗
28
6CB8554400
Case
Loading…
↗
29
68F8284600
Screw, pan head (m5)
Loading…
↗
30
6P28211300
Screw (m3)
Loading…
↗
31
67F2812A00
Puller, fuse
Loading…
↗
32
9778050620
Screw, tapping
Loading…
↗
33
6P28133601
Grommet
Loading…
↗
34
97E9506516
Bolt, hexagon w/w deep recess
Loading…
↗
35
6CE8191921
Graphic, regulator
Loading…
↗
36
97E9508516
AP
Bolt, hexagon w/w deep recess
Loading…
↗
38
6KA8210500
AP
Wire harness
Loading…
↗
