F40FED (2014)
ELECTRICAL 3

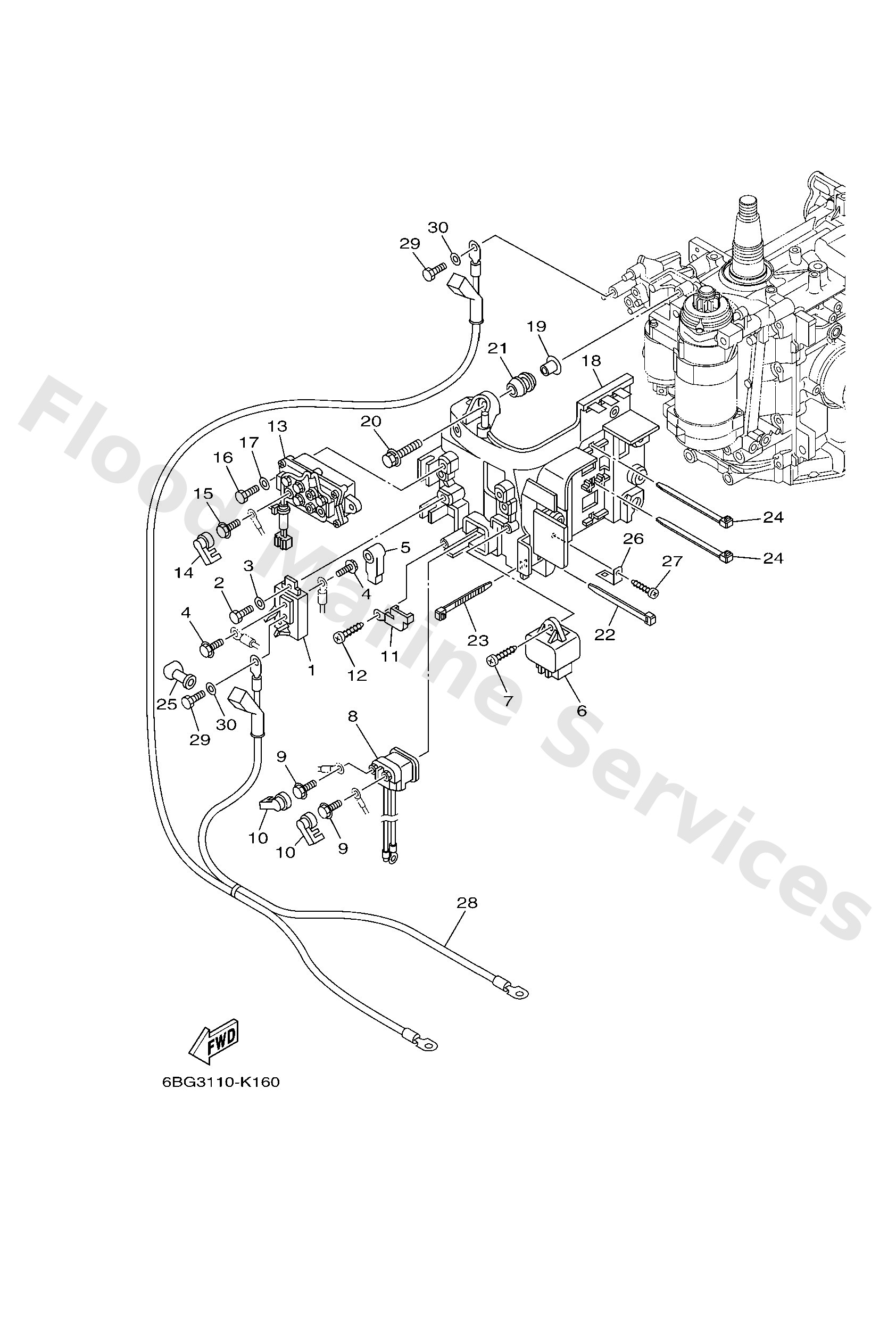

Diagram: ELECTRICAL 3
Parts List
Reference
Description
Price
1
6BG8192500
Terminal
Loading…
↗
29
9709506016
AP
Bolt, hexagon deep recess
Loading…
↗
30
9299506600
AP
Washer, plain (646)
Loading…
↗
4
9759506610
Bolt, hexagon w/w deep recess
Loading…
↗
5
6828211901
Cover, lead wire
Loading…
↗
6
60E8195000
Relay assembly
Loading…
↗
7
9778060620
Screw, tapping(6k8)
Loading…
↗
8
6AW8194A00
Relay
Loading…
↗
10
6P28183X00
Cap, terminal
Loading…
↗
11
68F8195300
Stay, relay
Loading…
↗
13
63P8195000
Relay assembly
Loading…
↗
16
9709506020
Bolt(7u8)
Loading…
↗
18
6BG8194800
Bracket
Loading…
↗
19
9038706119
Collar
Loading…
↗
20
9011906M59
Bolt, with washer
Loading…
↗
21
6A08231700
Damper, ignition coil
Loading…
↗
22
9046513M24
Band, switch cord
Loading…
↗
23
9046513M39
Clamp(6e8)
Loading…
↗
24
9046514M66
Clamp
Loading…
↗
25
6G58211900
Cover, lead wire
Loading…
↗
26
68V8554800
Holder
Loading…
↗
28
6BG8210501
AP
Battery cable
Loading…
↗
