F40FED (2022)
ELECTRICAL 3

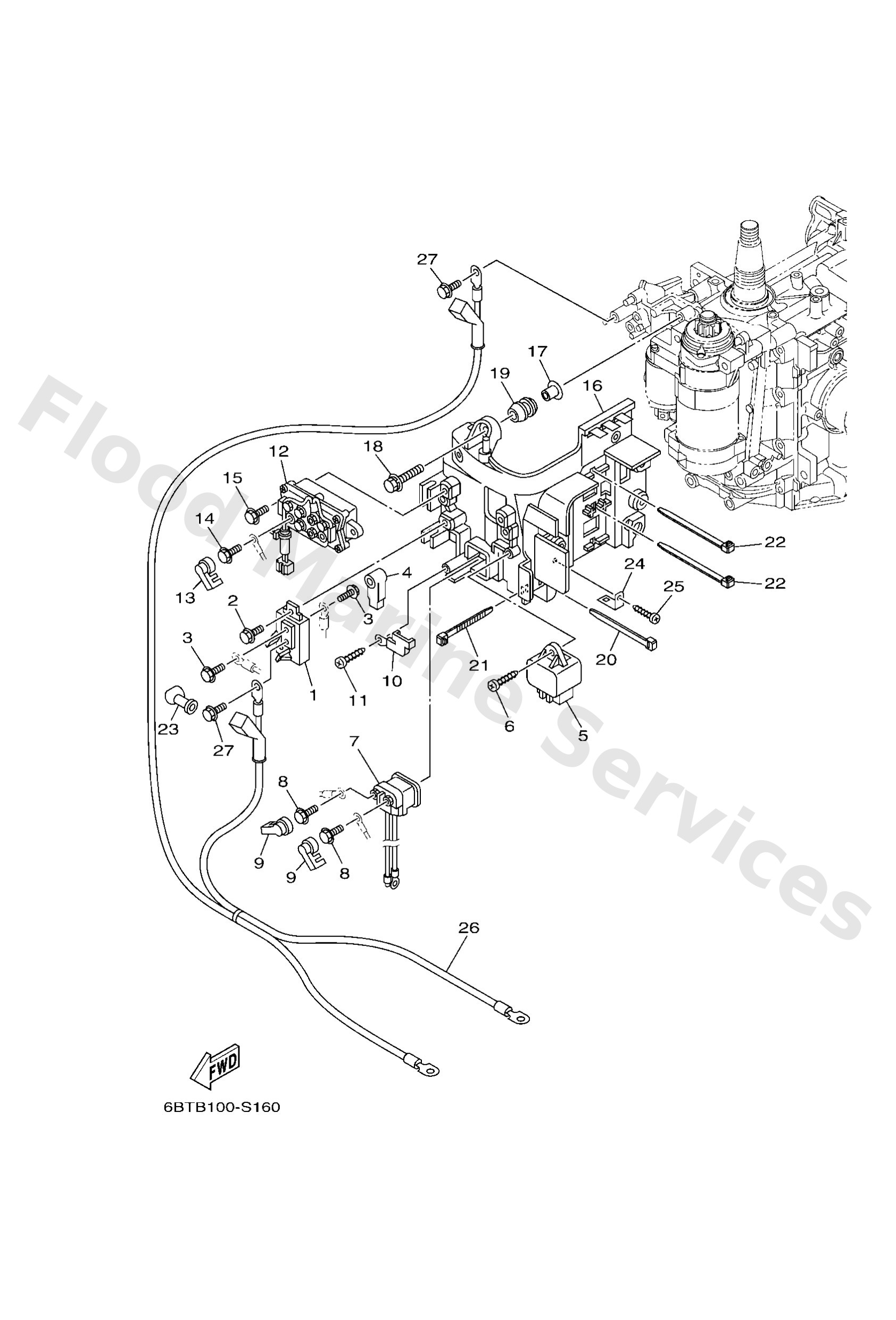

Diagram: ELECTRICAL 3
Parts List
Reference
Description
Price
1
6BG8192500
Terminal
Loading…
↗
27
97E9506516
AP
Bolt, hexagon w/w deep recess
Loading…
↗
3
97E9506610
Bolt, hexagon w/w deep recess
Loading…
↗
4
6828211901
Cover, lead wire
Loading…
↗
5
60E8195000
Relay assembly
Loading…
↗
6
9778060620
Screw, tapping(6k8)
Loading…
↗
7
6AW8194A00
Relay
Loading…
↗
9
6P28183X00
Cap, terminal
Loading…
↗
10
68F8195300
Stay, relay
Loading…
↗
12
63P8195000
Relay assembly
Loading…
↗
15
97E9506520
Bolt, hexagon w/w deep recess
Loading…
↗
16
6BG8194801
Bracket
Loading…
↗
17
9038706119
Collar
Loading…
↗
18
95D9506025
Bolt, flange deep recess
Loading…
↗
19
6A08231701
Damper, ignition coil
Loading…
↗
20
9046513M24
Band, switch cord
Loading…
↗
21
9046513M39
Clamp(6e8)
Loading…
↗
22
9046514M66
Clamp
Loading…
↗
23
6G58211900
Cover, lead wire
Loading…
↗
24
68V8554801
Holder
Loading…
↗
26
6BG8210502
AP
Battery cable
Loading…
↗
