F40MHD (2005)
ELECTRICAL 3

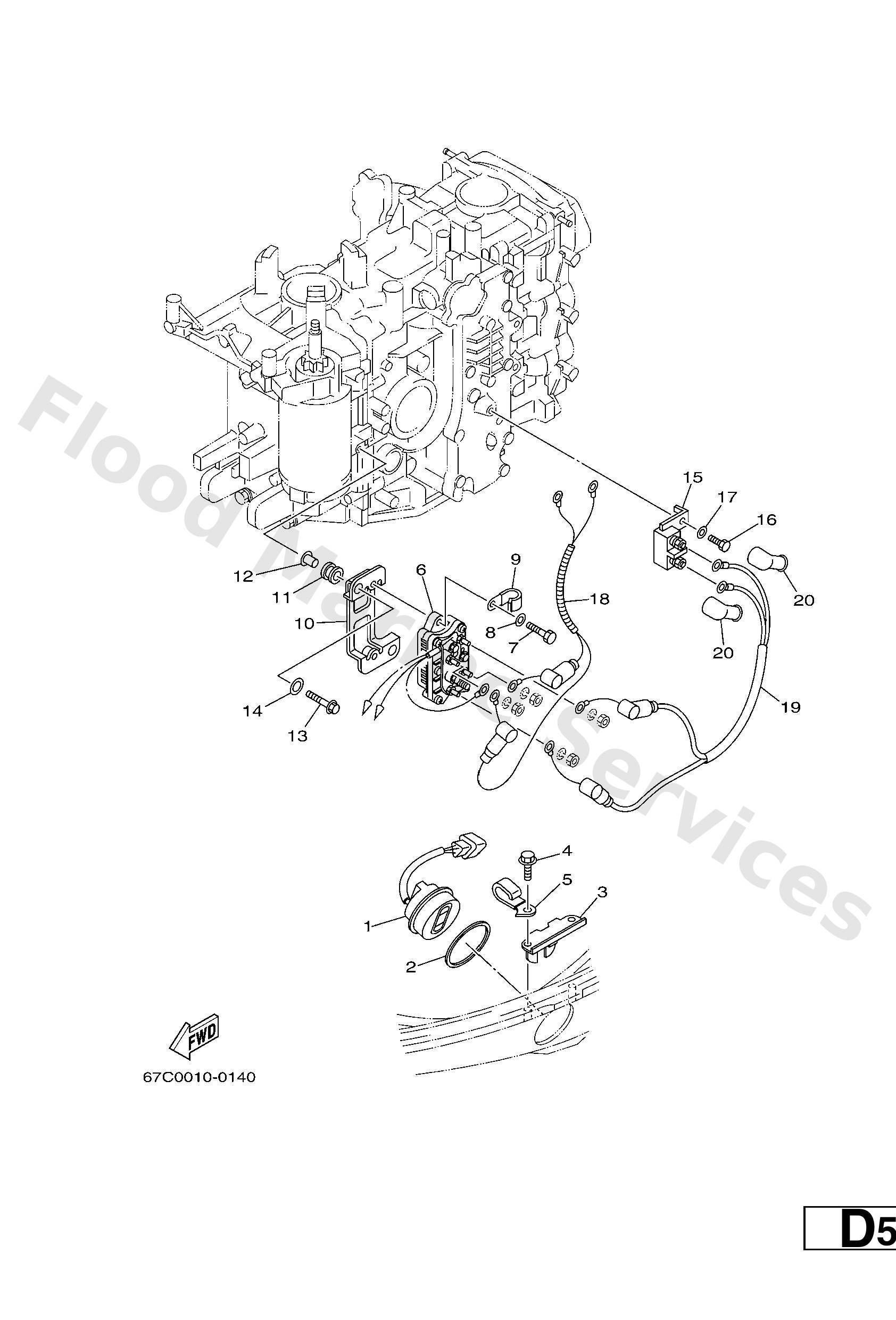

Diagram: ELECTRICAL 3
Parts List
Reference
Description
Price
1
63D8256310
Trim & tilt switch assembly
Loading…
↗
2
6E58258700
Gasket
Loading…
↗
3
62Y8361400
Bracket
Loading…
↗
4
9010906M86
Bolt
Loading…
↗
5
9046506M88
Clamp
Loading…
↗
6
6H18195000
Relay aasy
Loading…
↗
7
9709506020
Bolt(7u8)
Loading…
↗
8
9299506600
Washer, plain (646)
Loading…
↗
9
9046508M75
Clamp
Loading…
↗
10
67C8194800
Bracket
Loading…
↗
11
6A08231700
Damper, ignition coil
Loading…
↗
12
6244254200
Collar
Loading…
↗
13
9589506030
Bolt, flange deep recess
Loading…
↗
14
9020112M16
Washer, plate (679)
Loading…
↗
15
6H58192000
Terminal assembly
Loading…
↗
16
9709506012
Bolt(gh1)
Loading…
↗
18
67C8194900
Wire, lead
Loading…
↗
19
67C8194910
Wire, lead
Loading…
↗
20
6G58211900
Cover, lead wire
Loading…
↗
