F50HED (2018)
ELECTRICAL 3

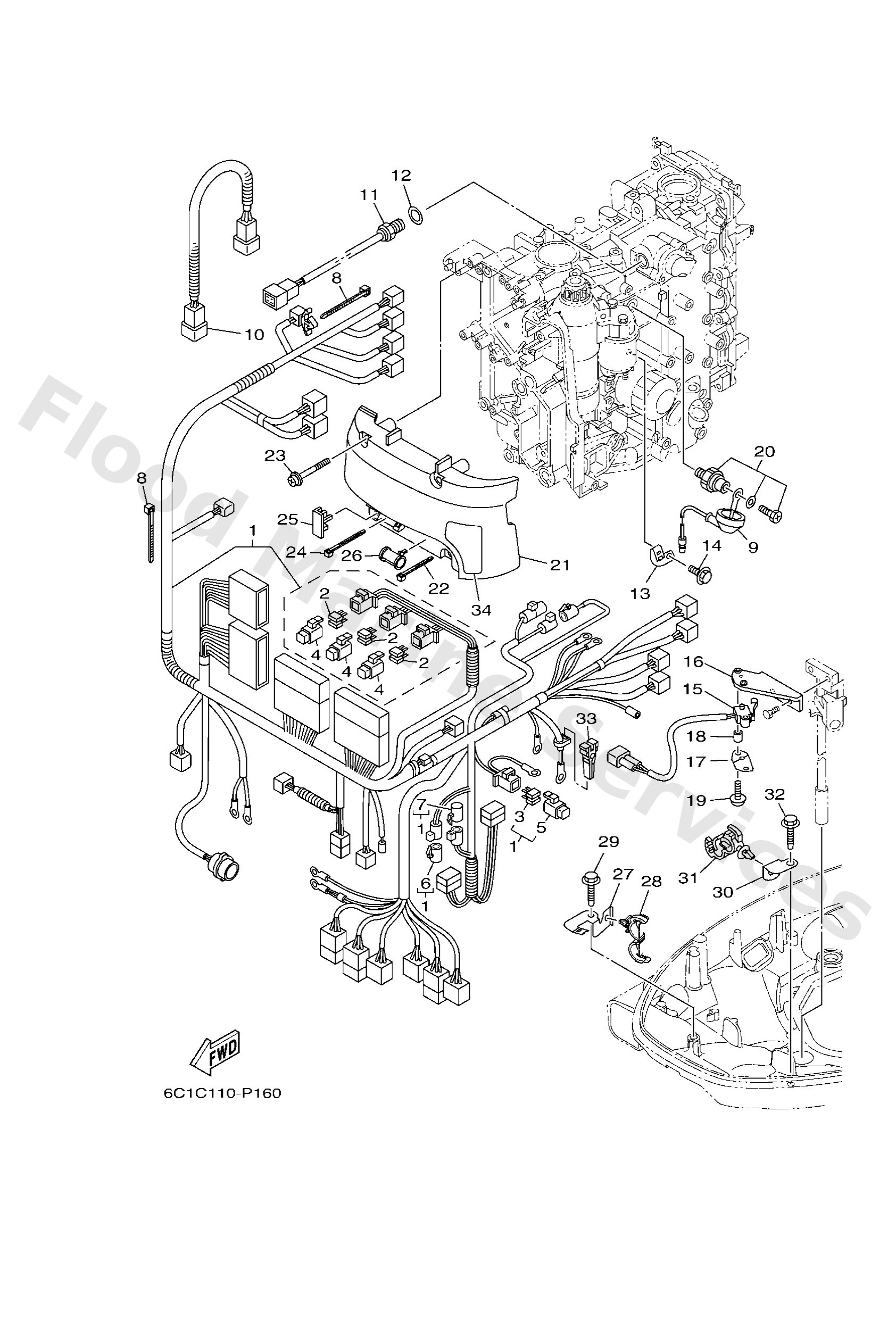

Diagram: ELECTRICAL 3
Parts List
Reference
Description
Price
1
6C582590D1
FOR TILT LIMIT
Wire harness assembly
Loading…
↗
1
6C582590B0
Wire harness assembly
Loading…
↗
2
67F8215100
Fuse
Loading…
↗
3
67F8215110
Fuse
Loading…
↗
4
67F8215B10
Cap (yellow)
Loading…
↗
5
67F8215B20
Cap (green)
Loading…
↗
6
6DA8258200
FOR 6C5-82590-D1
Cap 1 (female)
Loading…
↗
7
6DA8258210
FOR 6C5-82590-D1
Cap 1 (male)
Loading…
↗
8
9046513M11
Clamp (6e5)
Loading…
↗
9
68V8131500
Lead wire assembly
Loading…
↗
10
6C58255300
Extension, wire lead
Loading…
↗
11
6CJ8579000
Thermosensor assembly
Loading…
↗
12
9043014115
Gasket (663)
Loading…
↗
13
6C58238810
Plate
Loading…
↗
14
9759506514
Bolt(gj3)
Loading…
↗
15
60V8259F00
Switch assembly
Loading…
↗
16
6CJ8255400
Stay, neutral switch
Loading…
↗
17
61A8258801
Plate
Loading…
↗
18
9038704001
Collar
Loading…
↗
19
9798504116
Screw, with washer(61b)
Loading…
↗
20
64J8250400
Oil pressure switch assembly
Loading…
↗
21
6C58194200
Cover
Loading…
↗
22
9046513M39
Clamp(6e8)
Loading…
↗
23
9015906M14
Screw, with washer(6r3)
Loading…
↗
24
9046513M24
Band, switch cord
Loading…
↗
25
6C58217600
Damper
Loading…
↗
26
6C58252R00
Damper
Loading…
↗
27
6BG4281101
Stay
Loading…
↗
28
9046418205
Clamp(4tr)
Loading…
↗
29
9010906M86
Bolt
Loading…
↗
30
63P4275600
Stay, clamp
Loading…
↗
31
9046412183
Clamp(jn2)
Loading…
↗
33
67F2812A00
Puller, fuse
Loading…
↗
34
6C58191900
Graphic, regulator
Loading…
↗
