F50THA (2002)
ELECTRICAL 3

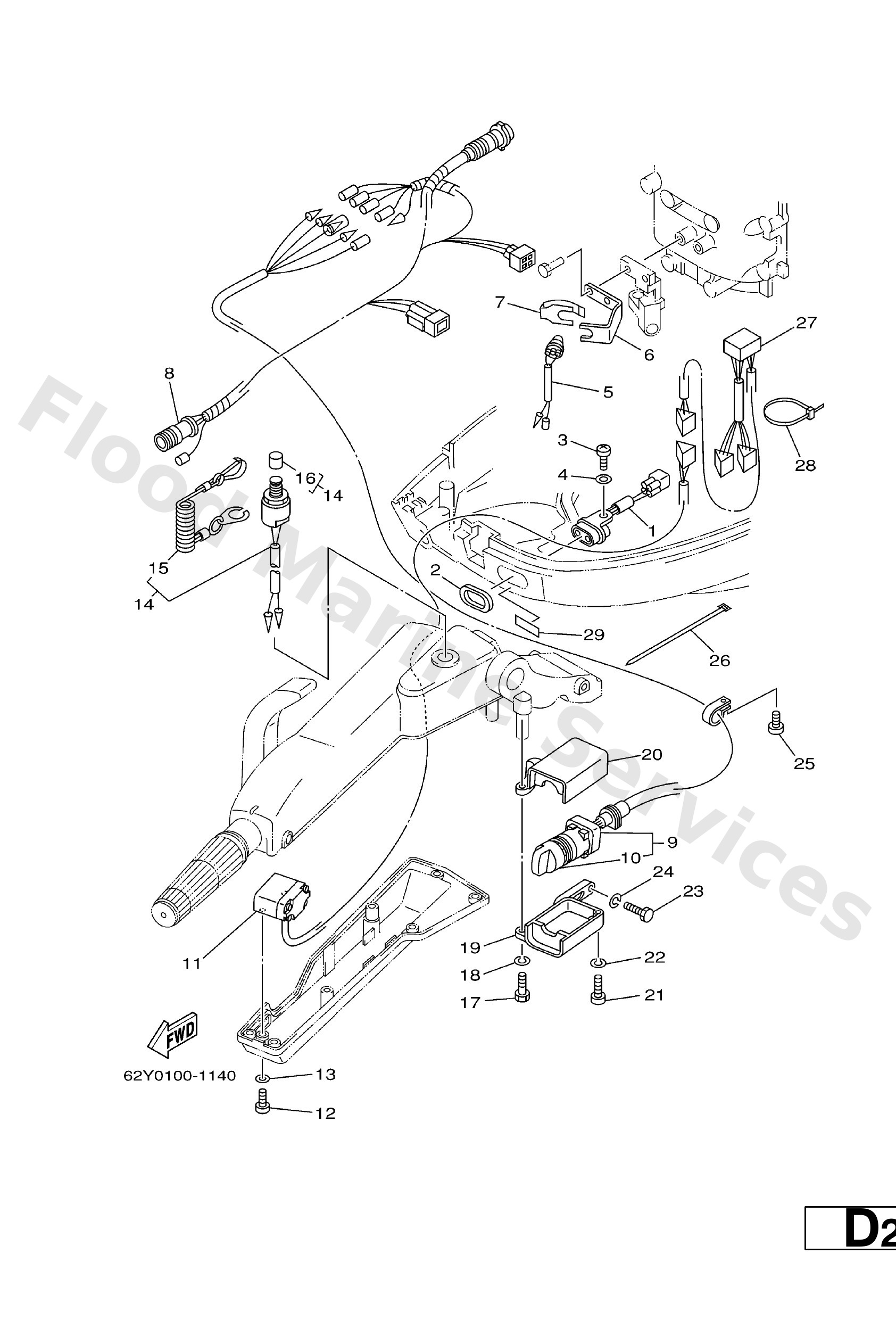

Diagram: ELECTRICAL 3
Parts List
Reference
Description
Price
1
62Y8430100
FOR OCEANIA
Pilot light assembly 1
Loading…
↗
2
6H48358900
FOR OCEANIA
Gasket
Loading…
↗
3
9788006014
FOR OCEANIA
Screw, pan head(6h2)
Loading…
↗
4
9299006600
FOR OCEANIA
Washer, plain (646)
Loading…
↗
5
6F58254000
Neutral switch assembly
Loading…
↗
6
62Y8255400
Stay, neutral switch
Loading…
↗
7
62Y8255510
Damper, Main Switch 1
Loading…
↗
8
6H28258601
FOR CANADA
Extension, Wire Harness
Loading…
↗
9
6H58251001
FOR CANADA
Main Switch assembly
Loading…
↗
9
6H38251012
FOR OCEANIA
Main Switch assembly
Loading…
↗
10
6768257700
Cap, key
Loading…
↗
11
67G8256300
Trim & tilt switch assembly
Loading…
↗
12
9788506016
Screw, pan head(6b0)
Loading…
↗
13
9299506600
Washer, plain (646)
Loading…
↗
14
63D8257500
Engine stop switch assembly
Loading…
↗
15
6828255600
Lanyard, stop switch
Loading…
↗
16
6898257Y00
Cap
Loading…
↗
17
9709506025
Bolt
Loading…
↗
18
9299506100
Washer(6a1)
Loading…
↗
21
9788506025
Screw, pan head(6b0)
Loading…
↗
23
9709506020
Bolt(7u8)
Loading…
↗
25
9788506012
Screw, pan head(62j)
Loading…
↗
26
9046513M36
Clamp(6h4)
Loading…
↗
27
63D8372800
-
Loading…
↗
28
9046513M24
Band, switch cord
Loading…
↗
29
6H48541510
FOR OCEANIA
Mark, signal lamp
Loading…
↗
