F70AET (2020)
ELECTRICAL 3

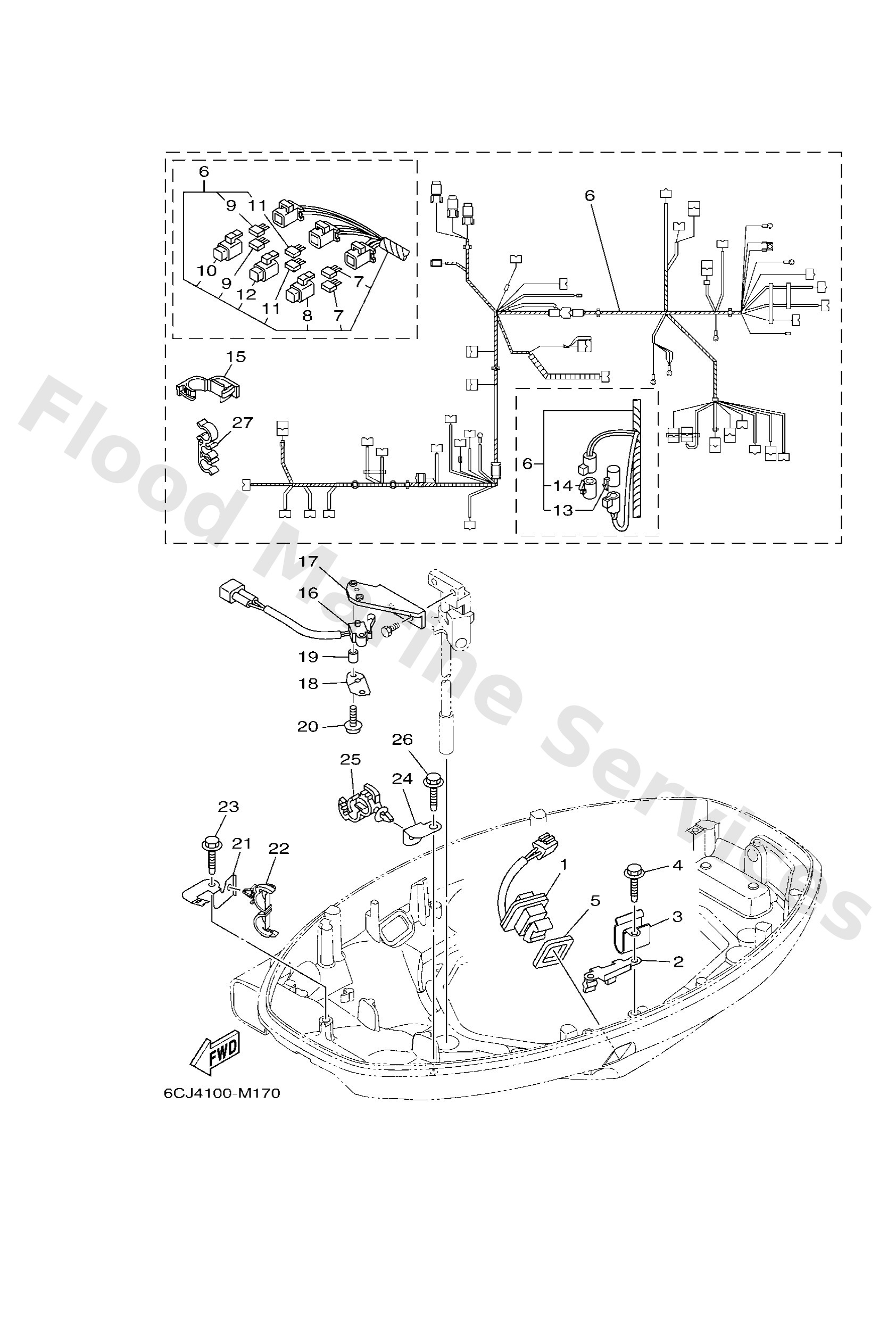

Diagram: ELECTRICAL 3
Parts List
Reference
Description
Price
1
69J8256301
Trim & tilt switch assembly
Loading…
↗
2
6BG8361400
Bracket
Loading…
↗
3
9046508M89
Clamp
Loading…
↗
4
9010906M86
Bolt
Loading…
↗
5
69J8258700
Gasket
Loading…
↗
6
6CJ8259012
FOR TILT LIMIT
Wire harness assembly
Loading…
↗
7
67F8215100
Fuse
Loading…
↗
8
67F8215B10
Cap (yellow)
Loading…
↗
9
67F8215110
Fuse
Loading…
↗
10
67F8215B20
Cap (green)
Loading…
↗
11
5JJ8215110
Fuse (15a)
Loading…
↗
12
67F8215B00
Cap (black)
Loading…
↗
13
6DA8258200
Cap 1 (female)
Loading…
↗
14
6DA8258210
Cap 1 (male)
Loading…
↗
15
9046418004
Clamp
Loading…
↗
16
60V8259F00
Switch assembly
Loading…
↗
17
6CJ8255400
Stay, neutral switch
Loading…
↗
18
61A8258801
Plate
Loading…
↗
19
9038704001
Collar
Loading…
↗
20
9798504116
Screw, with washer(61b)
Loading…
↗
21
6BG4281101
Stay
Loading…
↗
22
9046418205
Clamp(4tr)
Loading…
↗
24
63P4275600
Stay, clamp
Loading…
↗
25
9046412183
Clamp(jn2)
Loading…
↗
27
9046415008
Clamp
Loading…
↗
