Yamaha Outboard Parts - ELECTRICAL 3 - F80B (2023) | Flood Marine
New Search
Parts
New Outboards
Home
F80B (2023)
ELECTRICAL 3

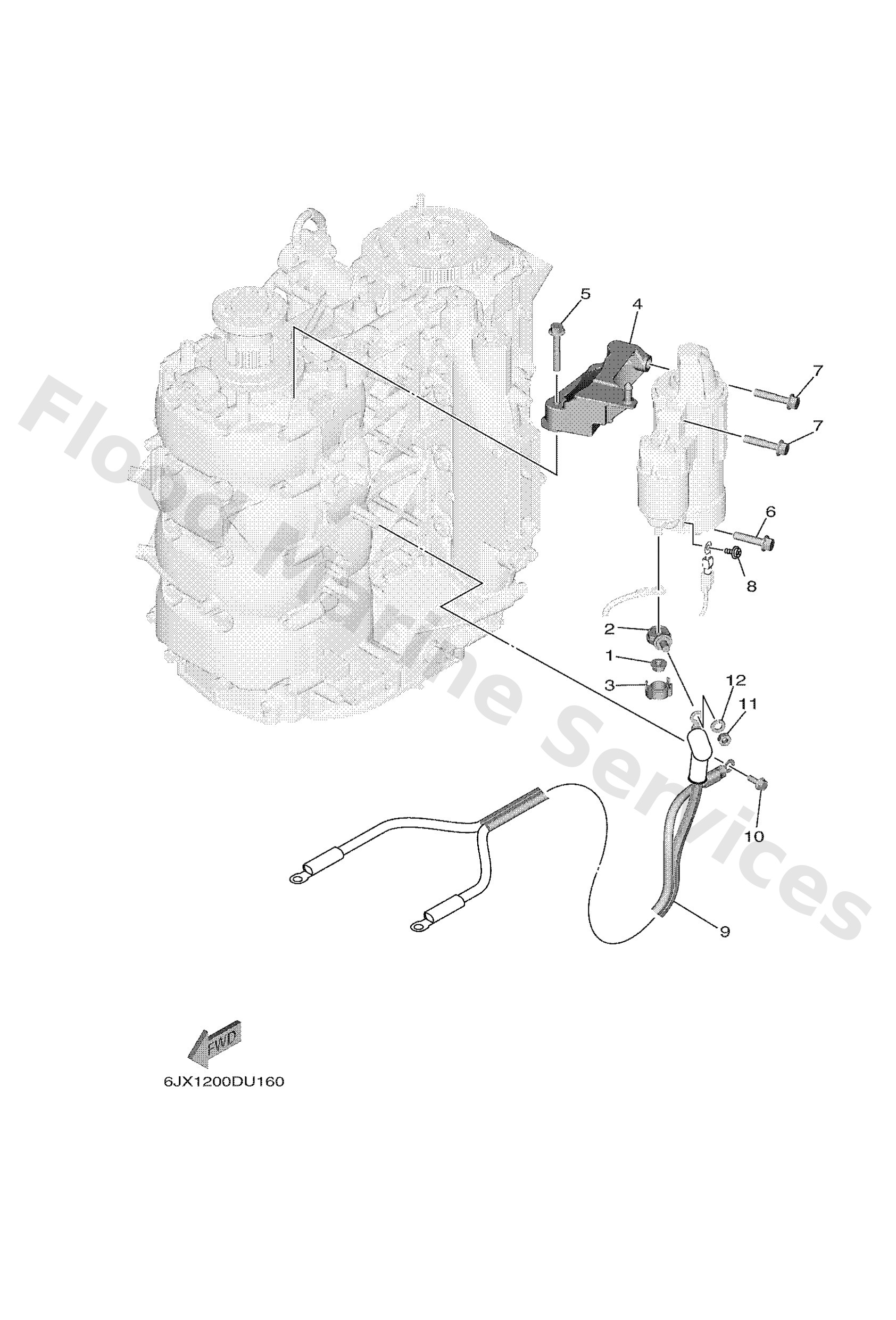

Diagram: ELECTRICAL 3
Parts List
Reference
Description
Price
1
9017908003
Nut
Loading…
↗
2
60V8192500
Terminal
Loading…
↗
3
68F8258200
Cover, wire harness
Loading…
↗
4
6FP8182210
Bracket, starting motor
Loading…
↗
5
9581208050
Bolt, flange
Loading…
↗
6
9581708040
Bolt, flange
Loading…
↗
7
9010508248
Bolt, flange
Loading…
↗
8
9798504308
Screw, with washer
Loading…
↗
9
68V8210502
AP
Battery cable
Loading…
↗
10
9010506M14
AP
Bolt (6e0)
Loading…
↗
11
9533308600
AP
Nut(6l2)
Loading…
↗
12
9290308100
AP
Ybs67-8 washer, spring
Loading…
↗
