F80BET (2017)
ELECTRICAL 3

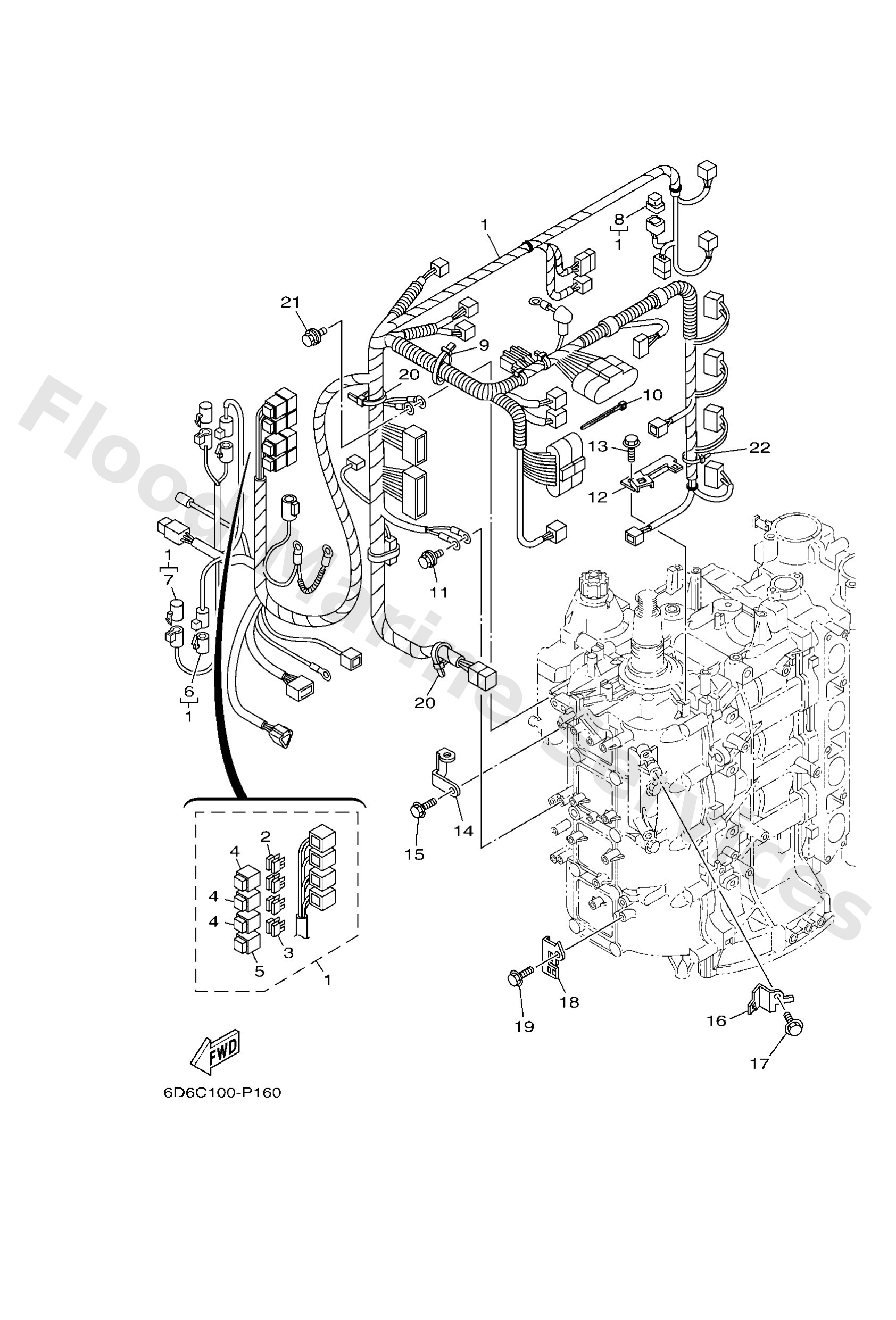

Diagram: ELECTRICAL 3
Parts List
Reference
Description
Price
1
6D88259061
FOR TILT LIMIT
Wire harness assembly
Loading…
↗
2
67F8215100
Fuse
Loading…
↗
3
67F8215110
Fuse
Loading…
↗
4
67F8215B10
Cap (yellow)
Loading…
↗
5
67F8215B20
Cap (green)
Loading…
↗
6
6DA8258200
Cap 1 (female)
Loading…
↗
7
6DA8258210
Cap 1 (male)
Loading…
↗
8
6Y88258211
White cap 1 (4pin)
Loading…
↗
9
9046476001
Clamp
Loading…
↗
10
9046513M97
Clamp
Loading…
↗
11
9759506616
Bolt, hexagon w/w deep recess
Loading…
↗
12
6D88258801
Plate
Loading…
↗
13
9759506512
Bolt, hexagon w/w deep recess
Loading…
↗
14
6D88258101
Stay, cord clamp
Loading…
↗
15
9759506514
Bolt(gj3)
Loading…
↗
16
6D88238901
Plate 2
Loading…
↗
18
6D88239801
Plate 3
Loading…
↗
20
9046513M18
Clamp
Loading…
↗
22
9046513M11
Clamp (6e5)
Loading…
↗
