F9.9HWH1 (2021)
ELECTRICAL 3

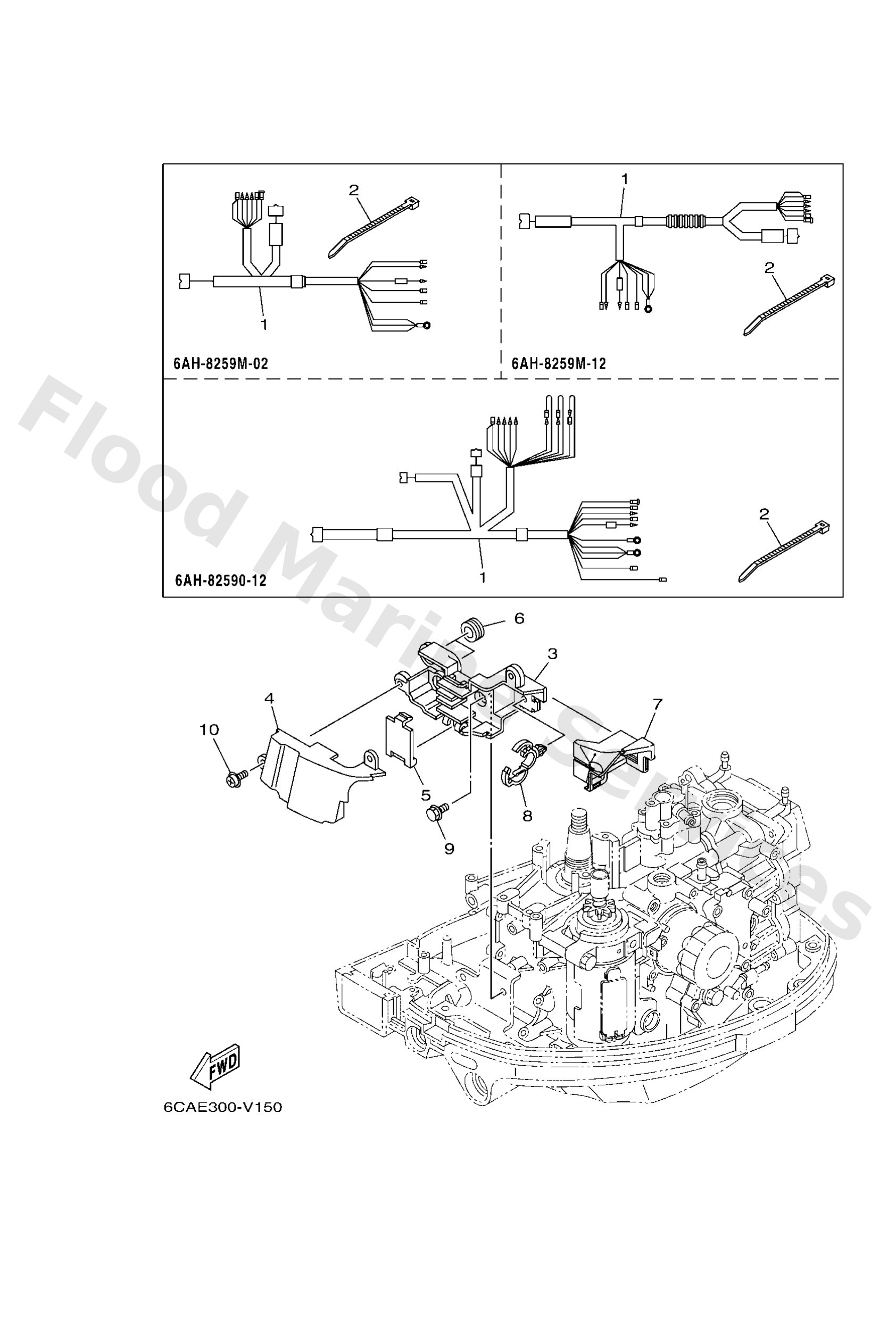

Diagram: ELECTRICAL 3
Parts List
Reference
Description
Price
1
6AH8259M12
Wire harness assembly 2
Loading…
↗
1
6AH8259M02
Wire harness assembly 2
Loading…
↗
1
6AH8259012
Wire harness assembly
Loading…
↗
2
9046513M18
Clamp
Loading…
↗
3
6AH8552A00
Housing
Loading…
↗
4
6AH8552E00
Cover, case
Loading…
↗
5
6AH8553700
Cover
Loading…
↗
6
9048019368
Grommet(75v)
Loading…
↗
7
6AH8554700
Damper
Loading…
↗
8
9046420181
Clamp(4ap)
Loading…
↗
9
97E9506514
Bolt, hexagon w/w deep recess
Loading…
↗
10
9798506214
Screw, with washer
Loading…
↗
