Yamaha Outboard Parts - ELECTRICAL 3 - FL115AET (2003) | Flood Marine

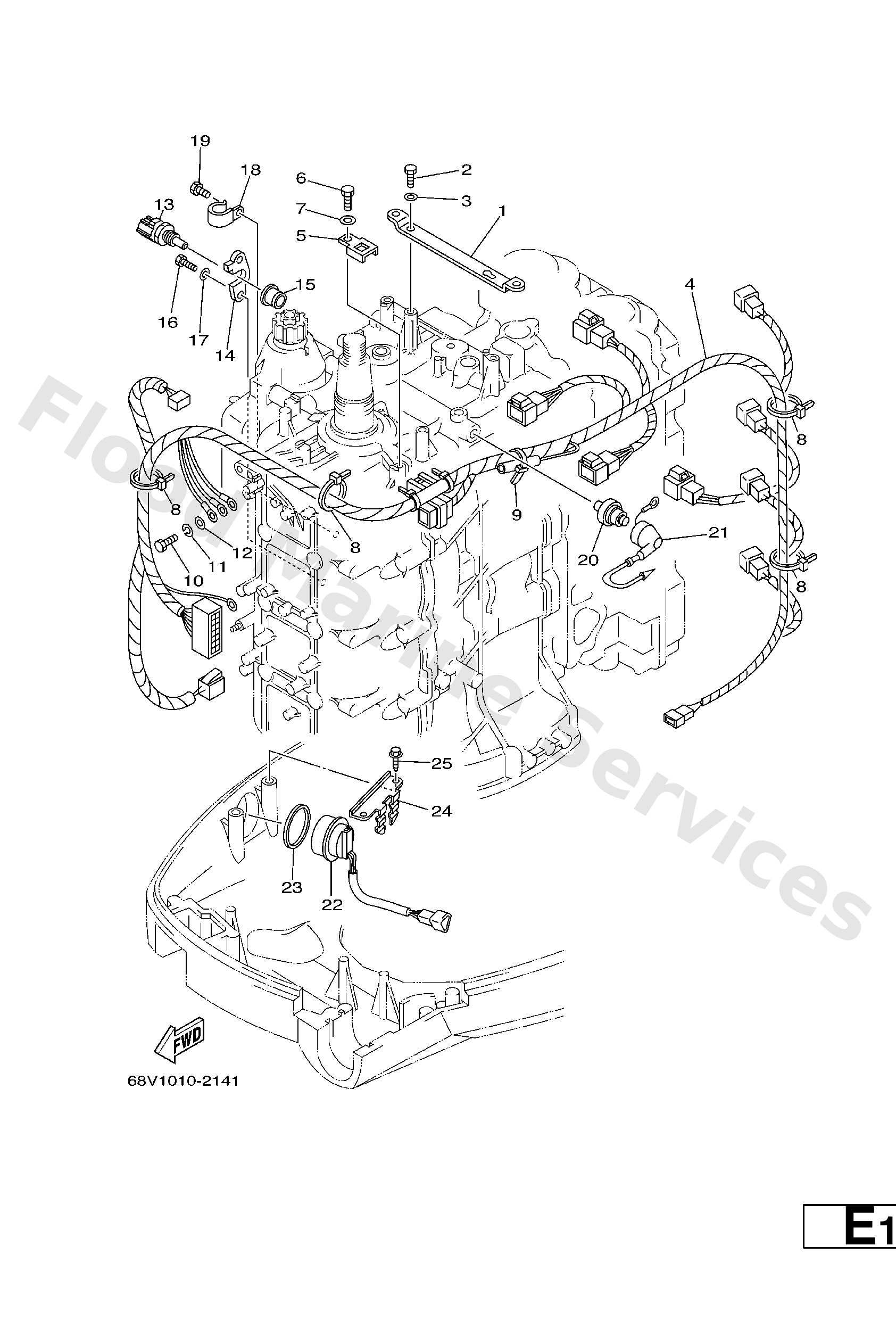

Diagram: ELECTRICAL 3

Diagram

Parts List

Reference
Description
Price


1
67F−8132G−01
Plate
Loading…

↗
2
97095−06016
Bolt, hexagon deep recess
Loading…

↗
3
92995−06600
Washer, plain (646)
Loading…

↗
4
68V−8259M−00
Wire harness assembly 2
Loading…

↗
5
68V−82588−00
15 −
Loading…

↗
6
97095−06012
Bolt(gh1)
Loading…

↗
8
90465−13M18
Clamp
Loading…

↗
9
90465−11M10
Clamp
Loading…

↗
10
97095−06020
Bolt(7u8)
Loading…

↗
11
92995−06100
Washer(6a1)
Loading…

↗
13
67F−85790−00
Thermosensor assembly
Loading…

↗
14
67F−85757−00
Retainer
Loading…

↗
15
68V−85753−00
Gasket, sender unit
Loading…

↗
18
90465−06M86
Clamp
Loading…

↗
19
97095−06010
Bolt
Loading…

↗
20
68V−82504−00
Oil pressure switch assembly
Loading…

↗
21
68V−81315−00
Lead wire assembly
Loading…

↗
22
63D−82563−10
Trim & tilt switch assembly
Loading…

↗
23
6E5−82587−00
Gasket
Loading…

↗
24
67F−83614−00
Bracket
Loading…

↗
25
90109−06M86
Bolt
Loading…

↗
