FL115AET (2005)
ELECTRICAL 3

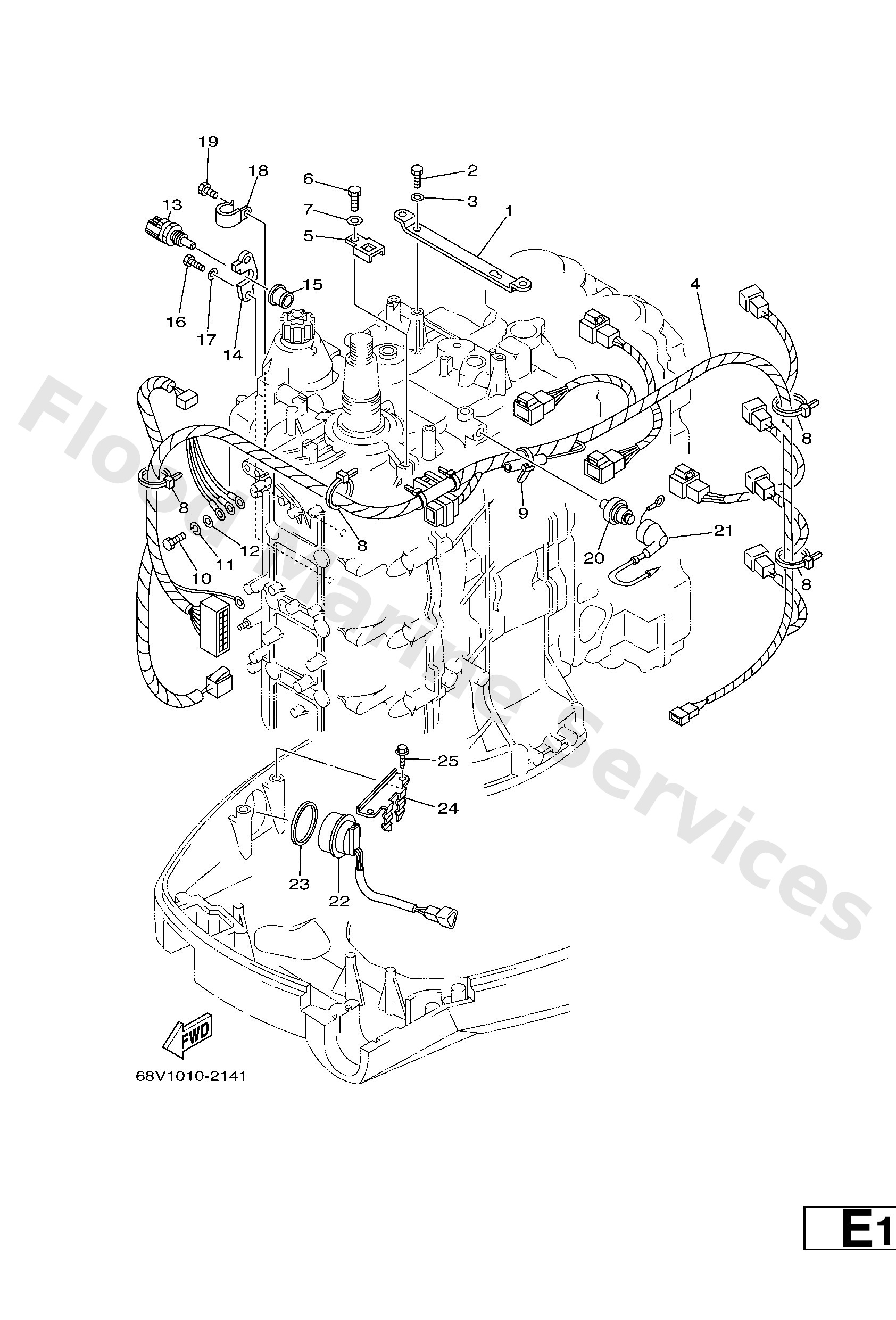

Diagram: ELECTRICAL 3
Parts List
Reference
Description
Price
1
67F8132G01
Plate
Loading…
↗
2
9709506016
Bolt, hexagon deep recess
Loading…
↗
3
9299506600
Washer, plain (646)
Loading…
↗
4
68V8259M00
Wire harness assembly 2
Loading…
↗
5
68V8258800
-
Loading…
↗
6
9709506012
Bolt(gh1)
Loading…
↗
8
9046513M18
Clamp
Loading…
↗
9
9046511M10
Clamp
Loading…
↗
10
9709506020
Bolt(7u8)
Loading…
↗
11
9299506100
Washer(6a1)
Loading…
↗
13
67F8579000
Thermosensor assembly
Loading…
↗
14
67F8575700
Retainer
Loading…
↗
15
68V8575300
Gasket, sender unit
Loading…
↗
18
9046506M86
Clamp
Loading…
↗
19
9709506010
Bolt
Loading…
↗
20
68V8250400
Oil pressure switch assembly
Loading…
↗
21
68V8131500
Lead wire assembly
Loading…
↗
22
63D8256310
Trim & tilt switch assembly
Loading…
↗
23
6E58258700
Gasket
Loading…
↗
24
67F8361400
Bracket
Loading…
↗
25
9010906M86
Bolt
Loading…
↗
