FL115AET (2007)
ELECTRICAL 3

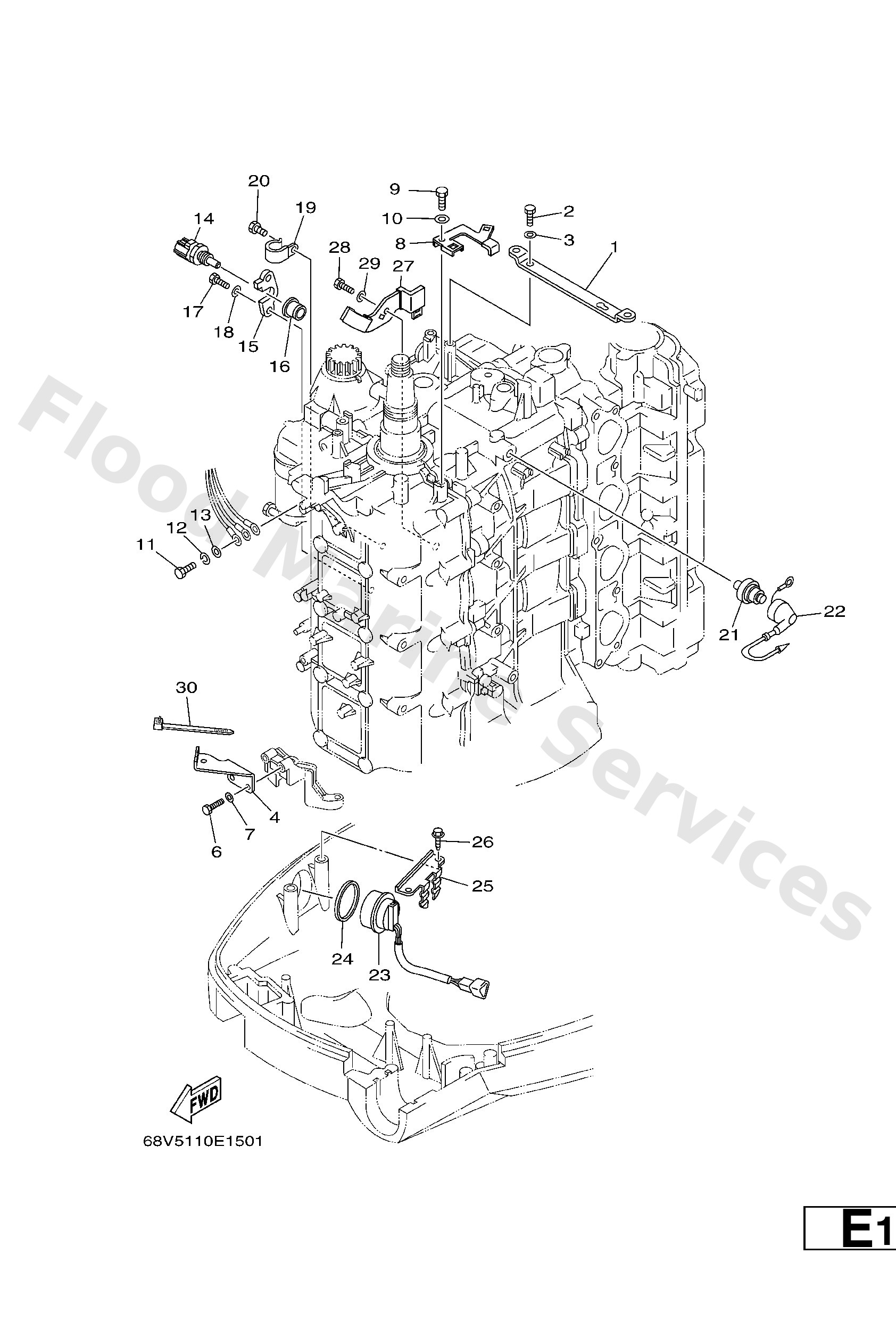

Diagram: ELECTRICAL 3
Parts List
Reference
Description
Price
1
67F8132G01
Plate
Loading…
↗
6
9709506016
Go to P/N)PE0-OM-080063
Bolt, hexagon deep recess
Loading…
↗
7
9299506600
Go to P/N)PE0-OM-080063
Washer, plain (646)
Loading…
↗
4
68V8152800
Go to P/N)PE0-OM-080063
Clamp 1
Loading…
↗
8
68V8258810
Plate
Loading…
↗
9
9709506012
Bolt(gh1)
Loading…
↗
12
9299506100
Washer(6a1)
Loading…
↗
14
67F8579000
Thermosensor assembly
Loading…
↗
15
67F8575700
Retainer
Loading…
↗
16
68V8575300
Gasket, sender unit
Loading…
↗
19
9046506M86
Clamp
Loading…
↗
20
9709506010
Bolt
Loading…
↗
21
68V8250400
Oil pressure switch assembly
Loading…
↗
22
68V8131500
Lead wire assembly
Loading…
↗
23
63D8256310
Trim & tilt switch assembly
Loading…
↗
24
6E58258700
Gasket
Loading…
↗
25
67F8361400
Bracket
Loading…
↗
26
9010906M86
Bolt
Loading…
↗
27
6D88252H00
Plate, holder
Loading…
↗
30
9046513M18
Go to P/N)PE0-OM-080063
Clamp
Loading…
↗
