FL115AET (2013)
ELECTRICAL 3

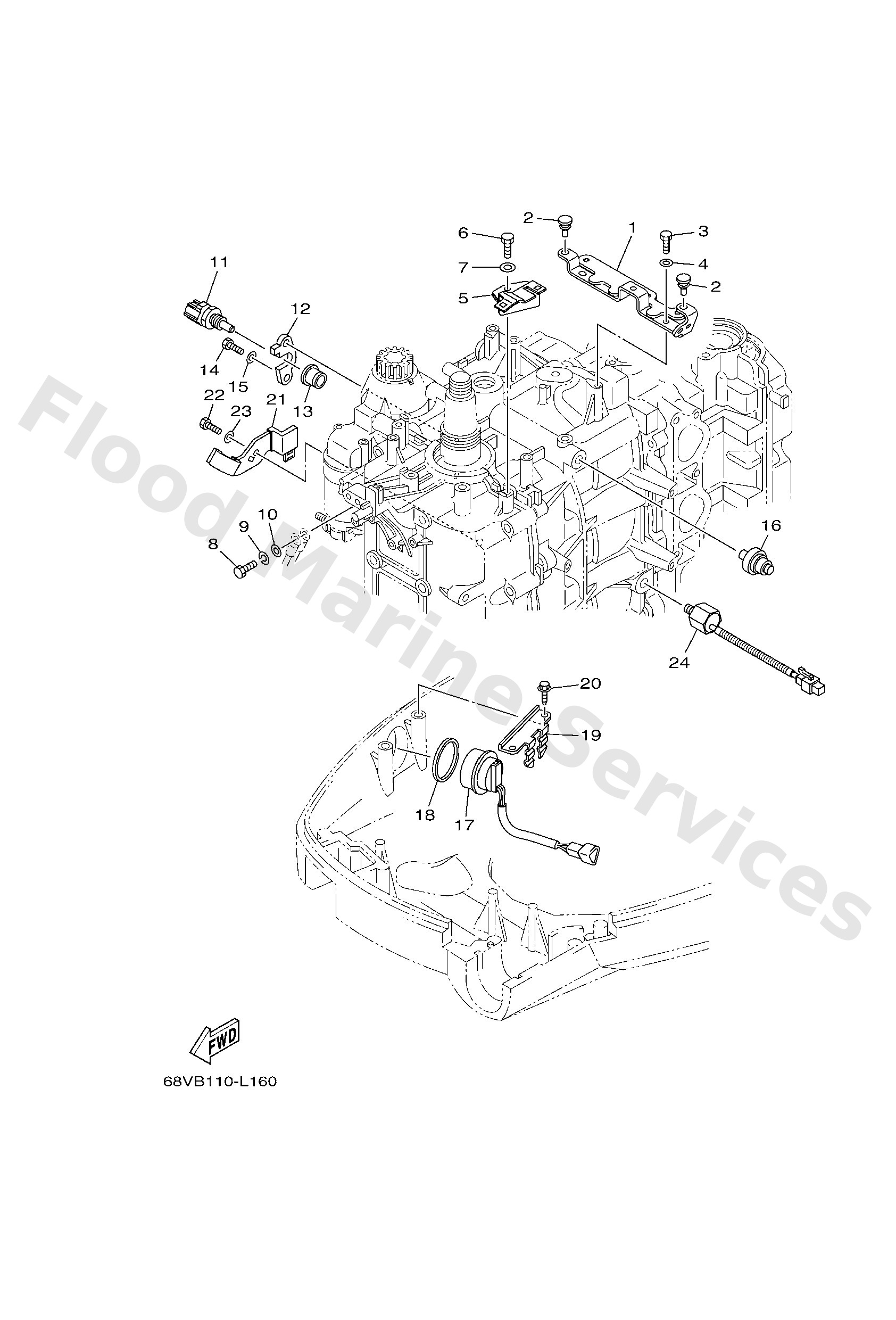

Diagram: ELECTRICAL 3
Parts List
Reference
Description
Price
1
68V8132G00
Plate
Loading…
↗
2
9048006M19
Grommet (6e3)
Loading…
↗
3
9709506016
Bolt, hexagon deep recess
Loading…
↗
4
9299506600
Washer, plain (646)
Loading…
↗
5
68V8258820
Plate
Loading…
↗
6
9709506012
Bolt(gh1)
Loading…
↗
9
9299506100
Washer(6a1)
Loading…
↗
11
67F8579000
Thermosensor assembly
Loading…
↗
12
67F8575700
Retainer
Loading…
↗
13
68V8575300
Gasket, sender unit
Loading…
↗
16
68V8250400
Oil pressure switch assembly
Loading…
↗
17
63D8256310
Trim & tilt switch assembly
Loading…
↗
18
6E58258700
Gasket
Loading…
↗
19
67F8361400
Bracket
Loading…
↗
20
9010906M86
Bolt
Loading…
↗
21
6D88252H01
Plate, holder
Loading…
↗
24
6CJ8578000
Sensor, knock
Loading…
↗
