FL115BET (2016)
ELECTRICAL 3

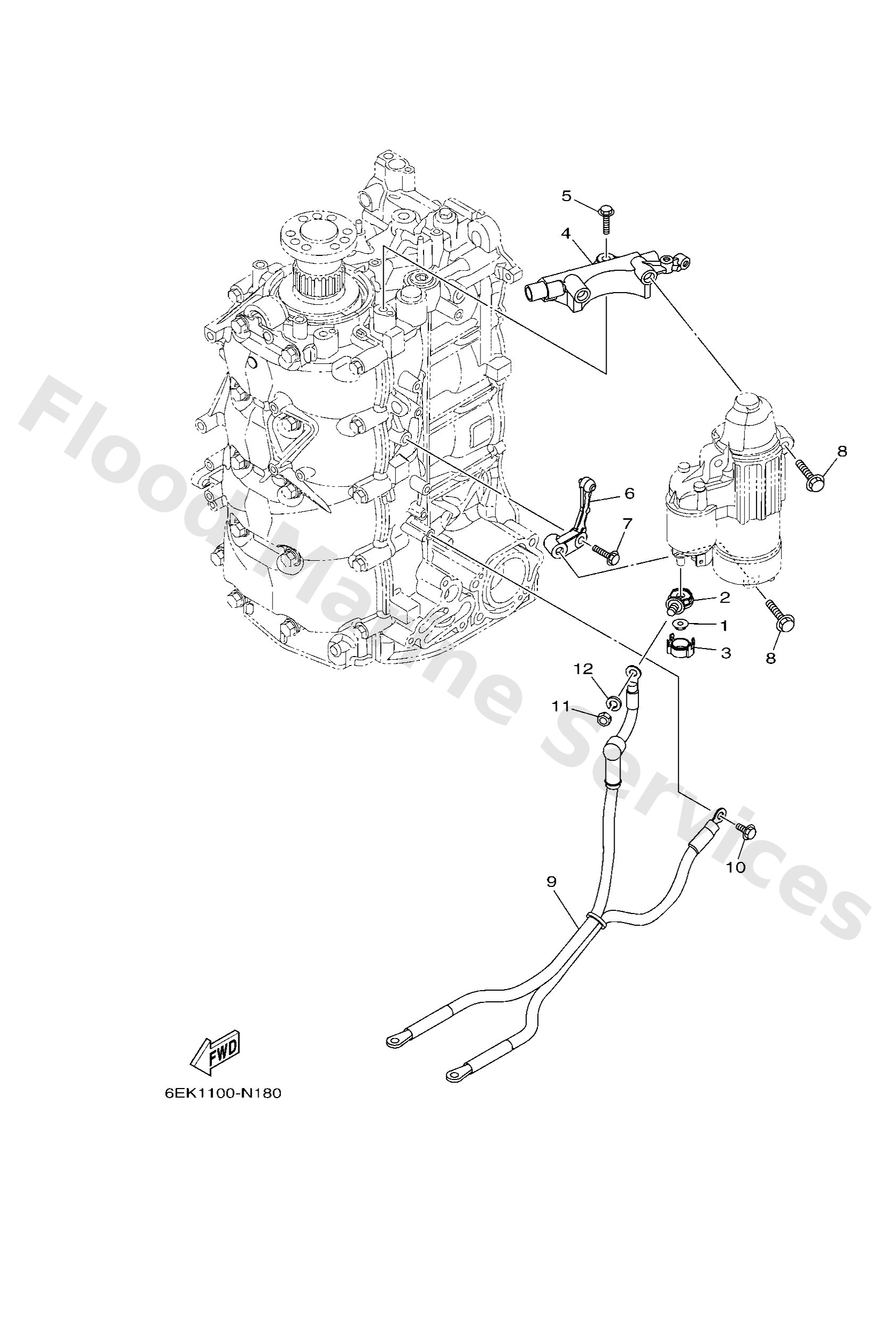

Diagram: ELECTRICAL 3
Parts List
Reference
Description
Price
1
9017908003
Nut
Loading…
↗
2
60V8192500
Terminal
Loading…
↗
3
68F8258200
Cover, wire harness
Loading…
↗
4
6EK8182200
Bracket, starting motor & bolt
Loading…
↗
5
9581208030
Bolt, flange
Loading…
↗
6
6EK8182300
Stay, starting motor
Loading…
↗
8
9010508248
Bolt, flange
Loading…
↗
9
68V8210501
AP
Battery cable
Loading…
↗
10
9010506M14
AP
Bolt (6e0)
Loading…
↗
11
9533308600
AP
Nut(6l2)
Loading…
↗
12
9290308100
AP
Ybs67-8 washer, spring
Loading…
↗
