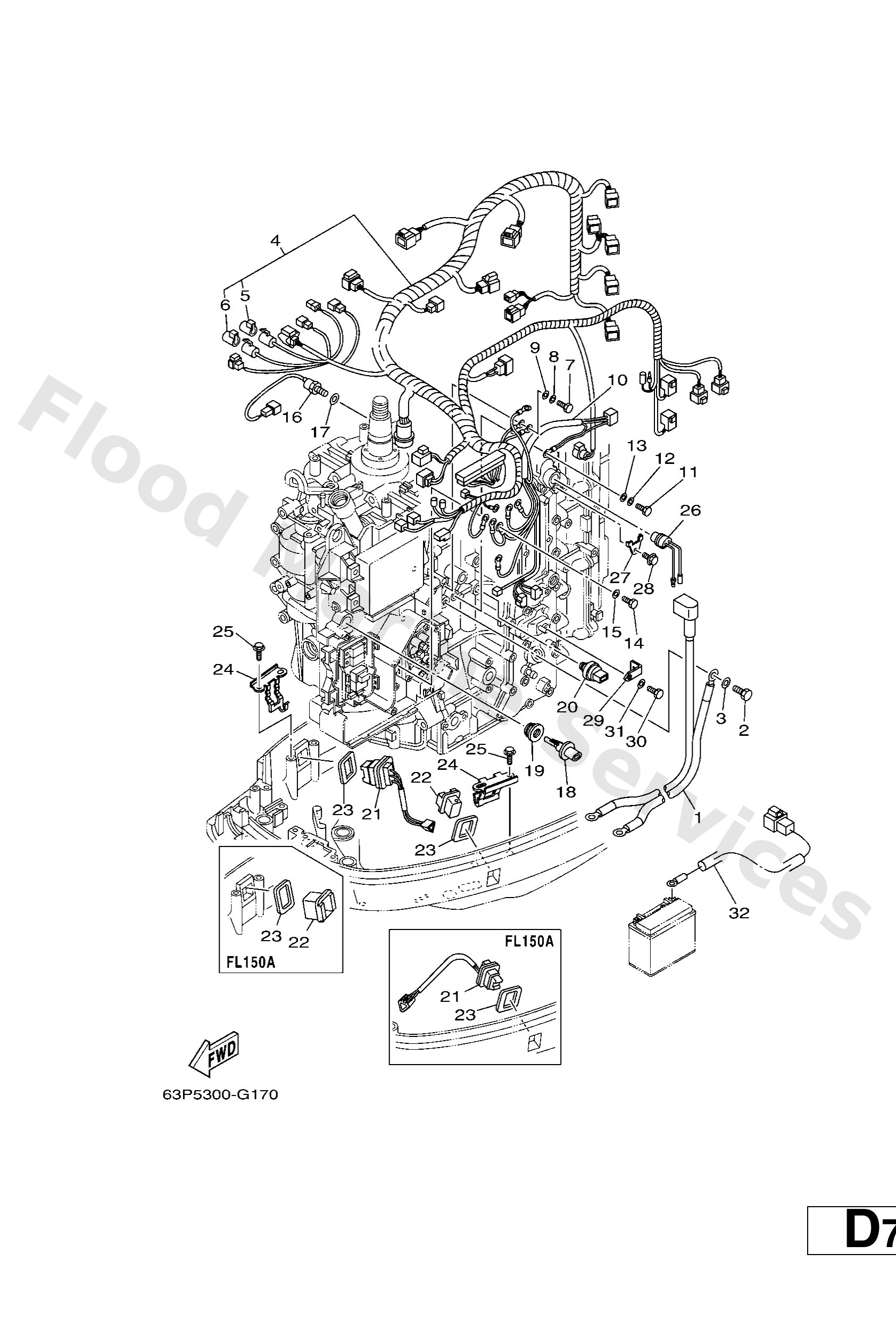

Diagram: ELECTRICAL 3

Diagram

Parts List

Reference
Description
Price


1
63P8210500
Battery cable
Loading…

↗
2
9709508016
Bolt, hexagon deep recess
Loading…

↗
3
9299508600
Washer, plain (663)
Loading…

↗
4
63P8259030
Wire harness assembly
Loading…

↗
5
6P28258200
Cap 1 (female)
Loading…

↗
6
6P28258210
Cap 1 (male)
Loading…

↗
7
9709506020
Bolt(7u8)
Loading…

↗
8
9299506100
Washer(6a1)
Loading…

↗
9
9299506600
Washer, plain (646)
Loading…

↗
10
63P8259M00
Wire harness assembly 2
Loading…

↗
14
9709506012
Bolt(gh1)
Loading…

↗
16
61A8579000
Thermosensor assembly
Loading…

↗
17
9299010600
Washer, plate
Loading…

↗
18
63P8588600
Sensor, air temperature
Loading…

↗
19
63P1443500
Grommet
Loading…

↗
20
69J8365101
Sender, oil pressure
Loading…

↗
21
69J8256300
Trim & tilt switch assembly
Loading…

↗
22
69J42723008D
Cover, bottom
Loading…

↗
23
69J8258700
Gasket
Loading…

↗
24
63P8361400
Bracket
Loading…

↗
25
9010906M86
Bolt
Loading…

↗
26
6P28256001
Thermo switch assembly
Loading…

↗
27
6E98258800
Plate
Loading…

↗
28
9010906M80
Bolt
Loading…

↗
29
63P8366P00
Bracket 4
Loading…

↗
32
68F8194900 AP
Wire, lead
Loading…

↗
