FL150DET (2017)
ELECTRICAL 3

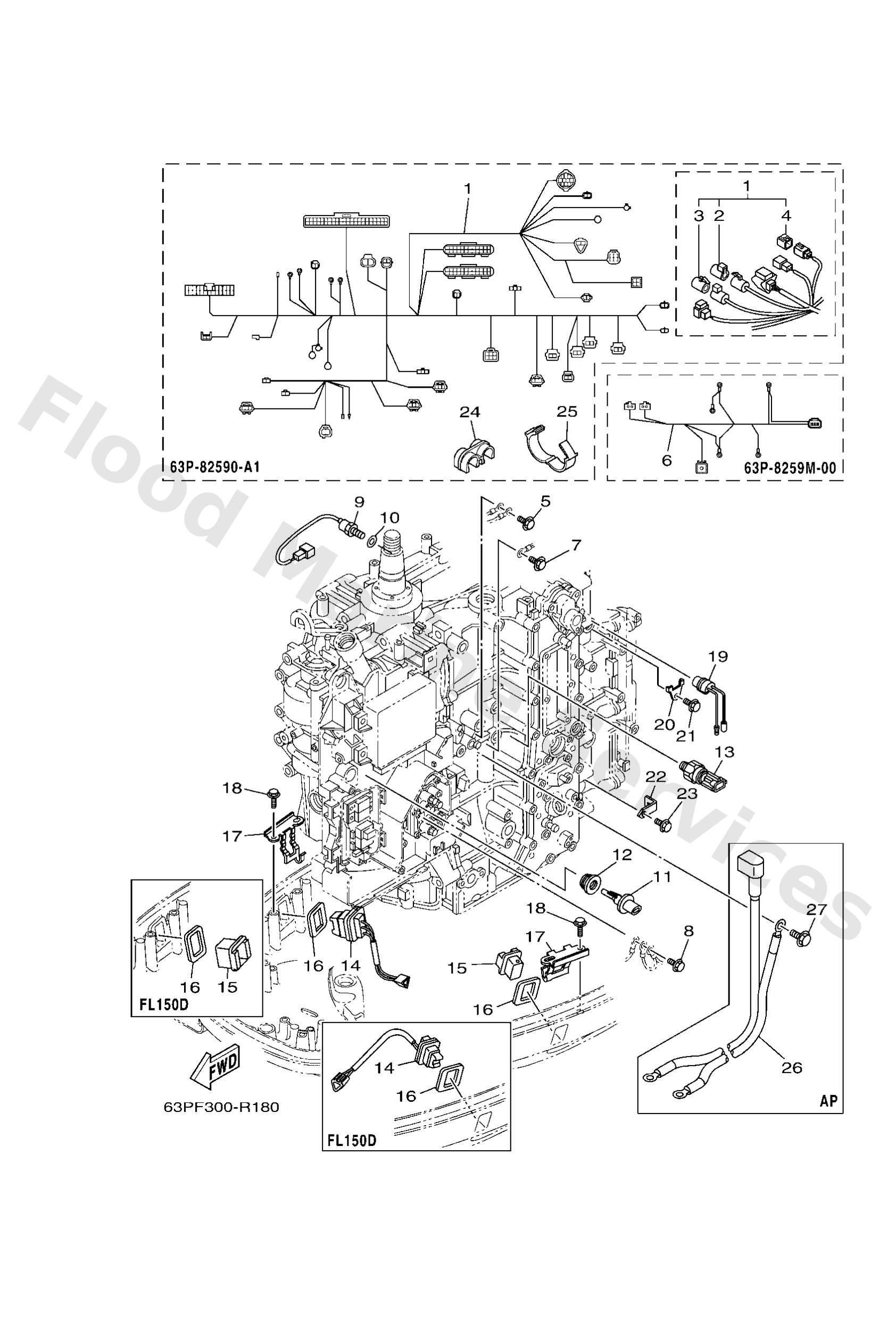

Diagram: ELECTRICAL 3
Parts List
Reference
Description
Price
1
63P82590A1
FOR TILT LIMIT
Wire harness assembly
Loading…
↗
2
6DA8258200
Cap 1 (female)
Loading…
↗
3
6DA8258210
Cap 1 (male)
Loading…
↗
4
6Y88258211
White cap 1 (4pin)
Loading…
↗
5
9759506516
Bolt, with washer(6r6)
Loading…
↗
6
63P8259M00
Wire harness assembly 2
Loading…
↗
8
9759506512
Bolt, hexagon w/w deep recess
Loading…
↗
9
61A8579000
Thermosensor assembly
Loading…
↗
10
9299010600
Washer, plate
Loading…
↗
11
63P8588600
Sensor, air temperature
Loading…
↗
12
63P1443500
Grommet
Loading…
↗
13
6AW8365100
Sender, oil pressure
Loading…
↗
14
69J8256301
Trim & tilt switch assembly
Loading…
↗
15
69J4272301
Cover, bottom
Loading…
↗
16
69J8258700
Gasket
Loading…
↗
17
63P8361401
Bracket
Loading…
↗
18
9010906M86
Bolt
Loading…
↗
19
6P28256001
Thermo switch assembly
Loading…
↗
20
6E98258800
Plate
Loading…
↗
21
9010906M80
Bolt
Loading…
↗
22
63P8366P01
Bracket 4
Loading…
↗
24
9046412224
Clamp(4pe)
Loading…
↗
25
9046426001
Clamp
Loading…
↗
26
6DA8210501
AP
Wire harness
Loading…
↗
27
9759508516
AP
Bolt, hexagon w/w deep recess
Loading…
↗
