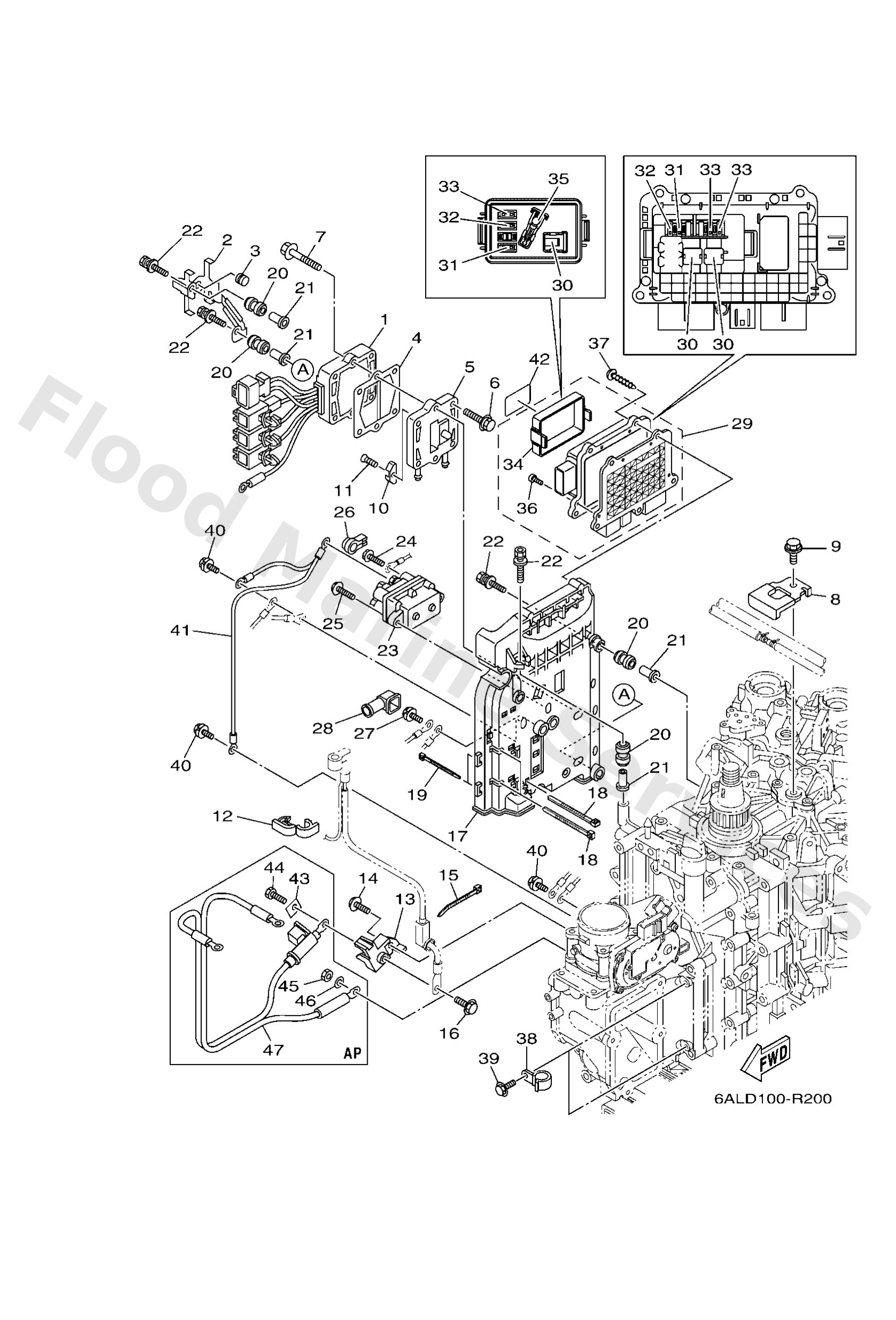

Diagram: ELECTRICAL 3

Diagram

Parts List

Reference
Description
Price


1
6P28196011
Rectifier & regulator assembly
Loading…

↗
2
6P28161410
Protector
Loading…

↗
3
2D11473700
Damper, muffler
Loading…

↗
4
60V81975A0
Plate, rectifier fitting
Loading…

↗
5
6P281972009S
Cover, rectifier
Loading…

↗
6
9011906MA3
Bolt, with washer
Loading…

↗
7
9011906MA5
Bolt, with washer
Loading…

↗
8
6P21249100
Clamp 1
Loading…

↗
9
97E9506512
Bolt, hexagon w/w deep recess
Loading…

↗
10
6E51132500
Anode
Loading…

↗
11
9878004015
Screw, flat head(ga5)
Loading…

↗
12
9046418004
Clamp
Loading…

↗
13
6P28192501
Terminal
Loading…

↗
14
97E9508520
Bolt, hexagon w/w deep recess
Loading…

↗
15
9046513M18
Clamp
Loading…

↗
16
97E9508516
Bolt, hexagon w/w deep recess
Loading…

↗
17
6P28194810
Bracket
Loading…

↗
19
9046514M66
Clamp
Loading…

↗
20
6A08231700
Damper, ignition coil
Loading…

↗
21
9038706119
Collar
Loading…

↗
22
9011906M95
Bolt, with washer
Loading…

↗
23
63P8195000
Relay assembly
Loading…

↗
24
97E9506610
Bolt, hexagon w/w deep recess
Loading…

↗
25
9751306525
Bolt, with washer(61b)
Loading…

↗
26
6P28183X00
Cap, terminal
Loading…

↗
27
97E9506616
Bolt, hexagon w/w deep recess
Loading…

↗
28
6P28211900
Cover, lead wire
Loading…

↗
29
6P28217020
Fuse box assembly
Loading…

↗
30
6CB8215140
Fuse (60a)
Loading…

↗
31
6CB8215100
Fuse (10a)
Loading…

↗
32
6CB8215120
Fuse (20a)
Loading…

↗
33
6CB8215130
Fuse (30a)
Loading…

↗
34
6CB8554410
Cover
Loading…

↗
35
6CB2812A00
Puller, fuse
Loading…

↗
36
6P28211300
Screw (m3)
Loading…

↗
37
9778050620
Screw, tapping
Loading…

↗
38
9046208026
Clamp
Loading…

↗
39
97E9506516
Bolt, hexagon w/w deep recess
Loading…

↗
41
6P28259M10
Wire harness assembly 2
Loading…

↗
42
6P28191950
Graphic, regulator
Loading…

↗
43
6P28192300 AP
Washer
Loading…

↗
44
97D9508016 AP
Bolt, hexagon deep recess
Loading…

↗
45
9533308600 AP
Nut(6l2)
Loading…

↗
46
9290308100 AP
Ybs67-8 washer, spring
Loading…

↗
47
6P28210502 AP
Wire harness
Loading…

↗
