Yamaha Outboard Parts - ELECTRICAL 3 - FL225BET (2007) | Flood Marine

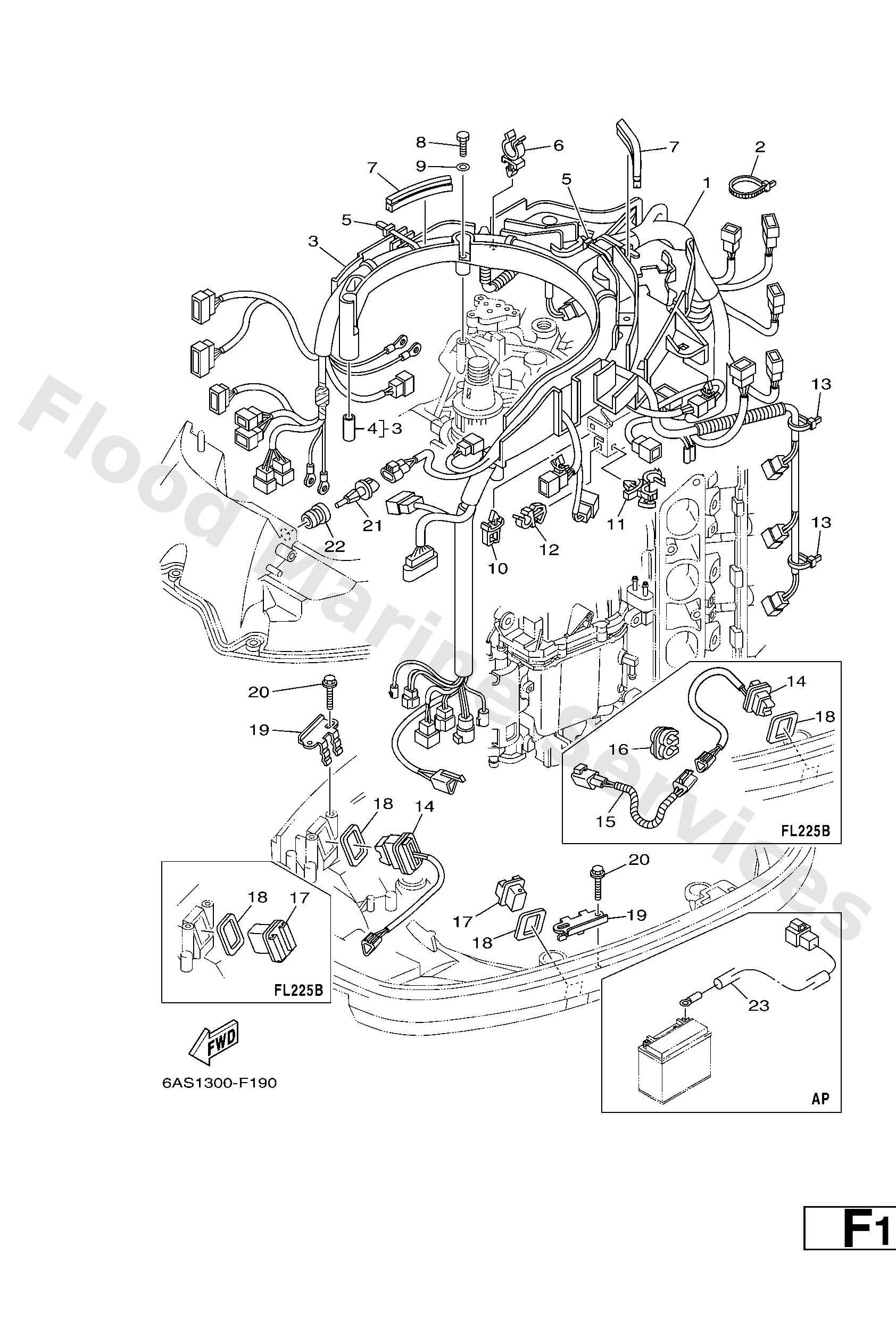

Diagram: ELECTRICAL 3

Diagram

Parts List

Reference
Description
Price


1
6P28259030
Wire Harness assembly
Loading…

↗
2
9046514M66
Clamp
Loading…

↗
3
6P28258900
Protecter, wire harness
Loading…

↗
4
9038706M26
Collar(61n)
Loading…

↗
6
9046419M45
Clamp(65j)
Loading…

↗
7
6P28572200
Insulator
Loading…

↗
8
9709506035
Bolt(j52)
Loading…

↗
9
9299506600
Washer, plain (646)
Loading…

↗
10
9046406001
Clamp
Loading…

↗
11
9046418246
Clamp(4tr)
Loading…

↗
12
9046408051
Clamp (26h)
Loading…

↗
13
9046513M18
Clamp
Loading…

↗
14
69J8256300
Trim & tilt switch assembly
Loading…

↗
15
6P38255300
Extension, wire lead
Loading…

↗
16
9046410M57
Clamp
Loading…

↗
17
69J42723008D
Cover, bottom
Loading…

↗
18
69J8258700
Gasket
Loading…

↗
19
69J8361410
Bracket
Loading…

↗
20
9010906M86
Bolt
Loading…

↗
21
63P8588600
Sensor, air temperature
Loading…

↗
22
63P1443500
Grommet
Loading…

↗
23
69J8194901 AP
Wire, lead (isolator, 3.8m )
Loading…

↗
