FL225HET (2018)
ELECTRICAL 3

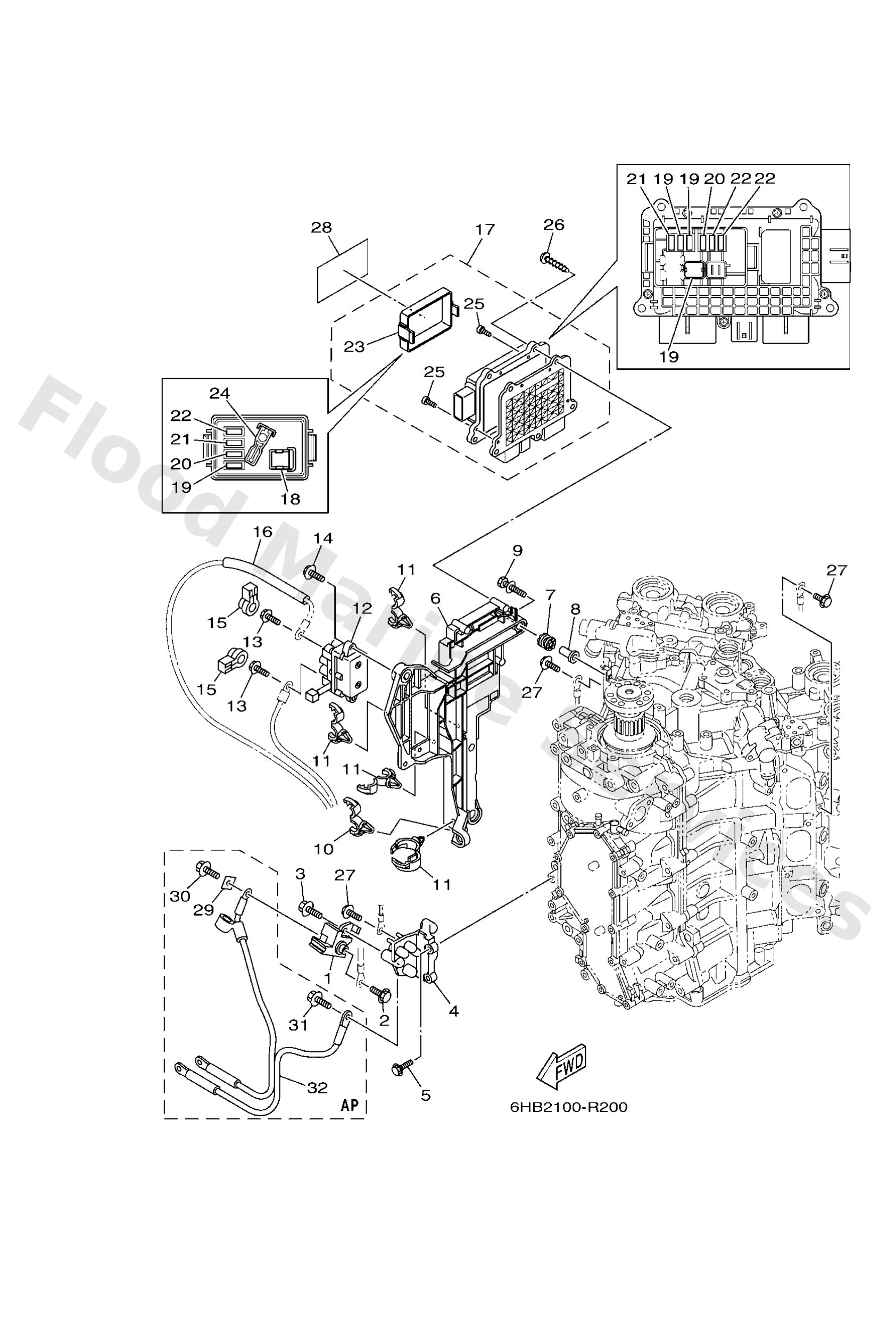

Diagram: ELECTRICAL 3
Parts List
Reference
Description
Price
1
6P28192501
Terminal
Loading…
↗
30
9589508016
AP
Bolt, flange deep recess
Loading…
↗
3
9581408020
Bolt, flange(4hm)
Loading…
↗
4
6CB8192900
Bracket, terminal
Loading…
↗
5
9589506020
Bolt, flange(jk3)
Loading…
↗
6
6CB8194810
Bracket
Loading…
↗
7
64J8551600
Spacer
Loading…
↗
8
69M4275801
Collar
Loading…
↗
9
9011906M56
Bolt, with washer
Loading…
↗
10
9046413249
Clamp
Loading…
↗
11
9046420181
Clamp(4ap)
Loading…
↗
12
63P8195000
Relay assembly
Loading…
↗
13
9759506610
Bolt, hexagon w/w deep recess
Loading…
↗
14
9751306520
Bolt, with washer(61b)
Loading…
↗
15
6P28183X00
Cap, terminal
Loading…
↗
16
9044615003
Hose
Loading…
↗
17
6CB8217010
Fuse box assembly
Loading…
↗
18
6CB8215140
Fuse (60a)
Loading…
↗
19
6CB8215100
Fuse (10a)
Loading…
↗
20
6CB8215110
Fuse (15a)
Loading…
↗
21
6CB8215120
Fuse (20a)
Loading…
↗
22
6CB8215130
Fuse (30a)
Loading…
↗
23
6CB8554410
Cover
Loading…
↗
24
6CB2812A00
Puller, fuse
Loading…
↗
25
6P28211300
Screw (m3)
Loading…
↗
26
9778050620
Screw, tapping
Loading…
↗
27
9759506516
Bolt, with washer(6r6)
Loading…
↗
28
6CB8191930
Graphic, regulator
Loading…
↗
29
6CB8192300
AP
Washer
Loading…
↗
32
6CB8210501
AP
Wire harness
Loading…
↗
