FL250AET (2009)
ELECTRICAL 3

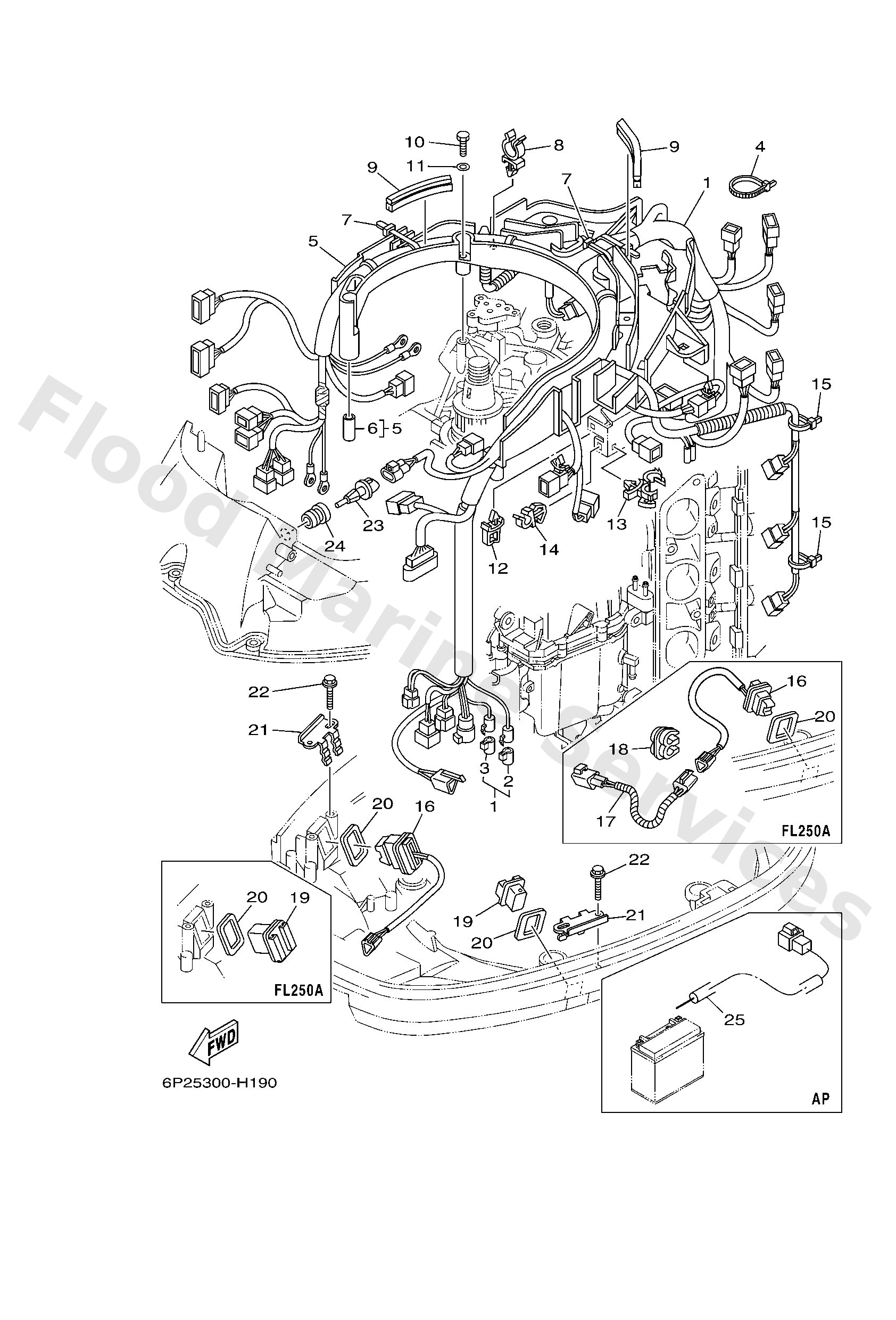

Diagram: ELECTRICAL 3
Parts List
Reference
Description
Price
1
6P28259031
Wire Harness assembly
Loading…
↗
2
6P28258200
Cap 1 (Female)
Loading…
↗
3
6P28258210
Cap 1 (Male)
Loading…
↗
4
9046514M66
Clamp
Loading…
↗
5
6P28258900
Protecter, wire harness
Loading…
↗
6
9038706M26
Collar
Loading…
↗
8
9046419M45
Clamp(65j)
Loading…
↗
9
6P28572200
Insulator
Loading…
↗
10
9709506035
Bolt
Loading…
↗
11
9299506600
10
Loading…
↗
12
9046406001
Clamp
Loading…
↗
13
9046418246
Clamp
Loading…
↗
14
9046408051
Clamp (26h)
Loading…
↗
15
9046513M18
Clamp
Loading…
↗
16
69J8256300
Trim & Tilt Switch Assy
Loading…
↗
17
6P38255300
FL250A
Extension, wire lead
Loading…
↗
18
9046410M57
FL250A
Clamp
Loading…
↗
19
69J42723008D
Cover, Bottom
Loading…
↗
20
69J8258700
Gasket
Loading…
↗
21
69J8361410
Bracket
Loading…
↗
22
9010906M86
Bolt
Loading…
↗
23
63P8588600
Sensor, Air Temperature
Loading…
↗
24
63P1443500
Grommet
Loading…
↗
25
69J8194902
AP
20
Loading…
↗
