FL300AET (2011)
ELECTRICAL 3

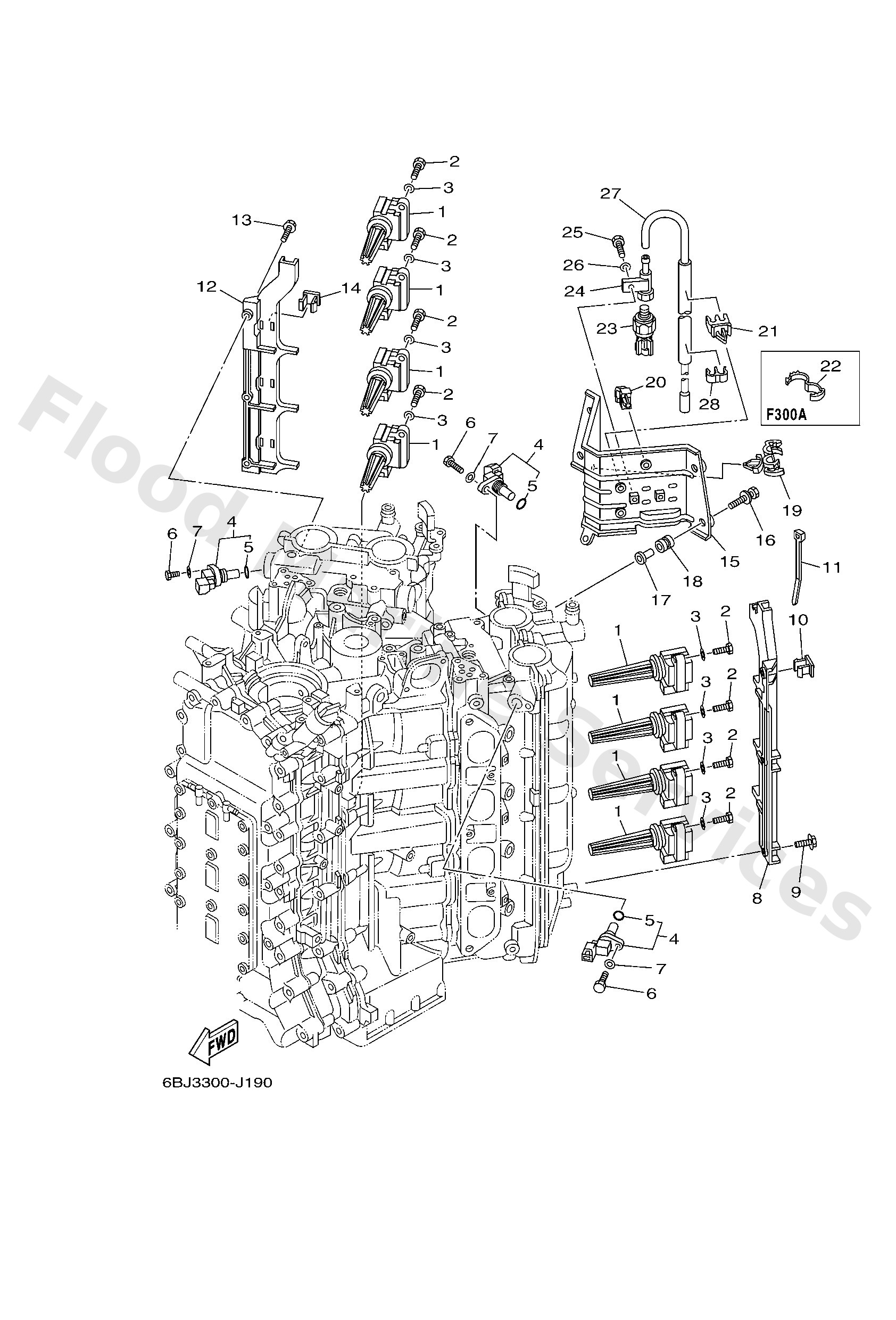

Diagram: ELECTRICAL 3
Parts List
Reference
Description
Price
1
6AW8231001
Ignition coil assembly
Loading…
↗
2
9709506025
Bolt
Loading…
↗
3
9299506600
Washer, plain (646)
Loading…
↗
4
6P28589600
Sensor, cam position
Loading…
↗
5
6P28507500
O-ring
Loading…
↗
6
9709506020
Bolt(7u8)
Loading…
↗
8
6AW8272F00
Plate, Guide 1
Loading…
↗
9
9589506014
Bolt, flange deep recess
Loading…
↗
10
6AW8236100
Clamp, Cord
Loading…
↗
11
9046511M10
Clamp
Loading…
↗
12
6AW8272F10
Plate,guide 1
Loading…
↗
14
6AW8236110
Clamp, cord
Loading…
↗
15
6AW8366G00
Bracket 3
Loading…
↗
16
9011906M35
Bolt, with washer
Loading…
↗
17
69M4275800
Collar
Loading…
↗
18
64J8551600
Spacer
Loading…
↗
19
9046418246
Clamp(4tr)
Loading…
↗
20
9046407259
Clamp
Loading…
↗
21
9046407009
Clamp
Loading…
↗
22
9046416001
F300A
Clamp
Loading…
↗
23
6AW8366B00
Sensor, water pressure
Loading…
↗
24
60V8366D00
Adaptor, input
Loading…
↗
25
9709506016
Bolt, hexagon deep recess
Loading…
↗
27
6AW8235300
Hose
Loading…
↗
28
9046407M20
Clamp(6h0)
Loading…
↗
