FL300BET (2015)
ELECTRICAL 3

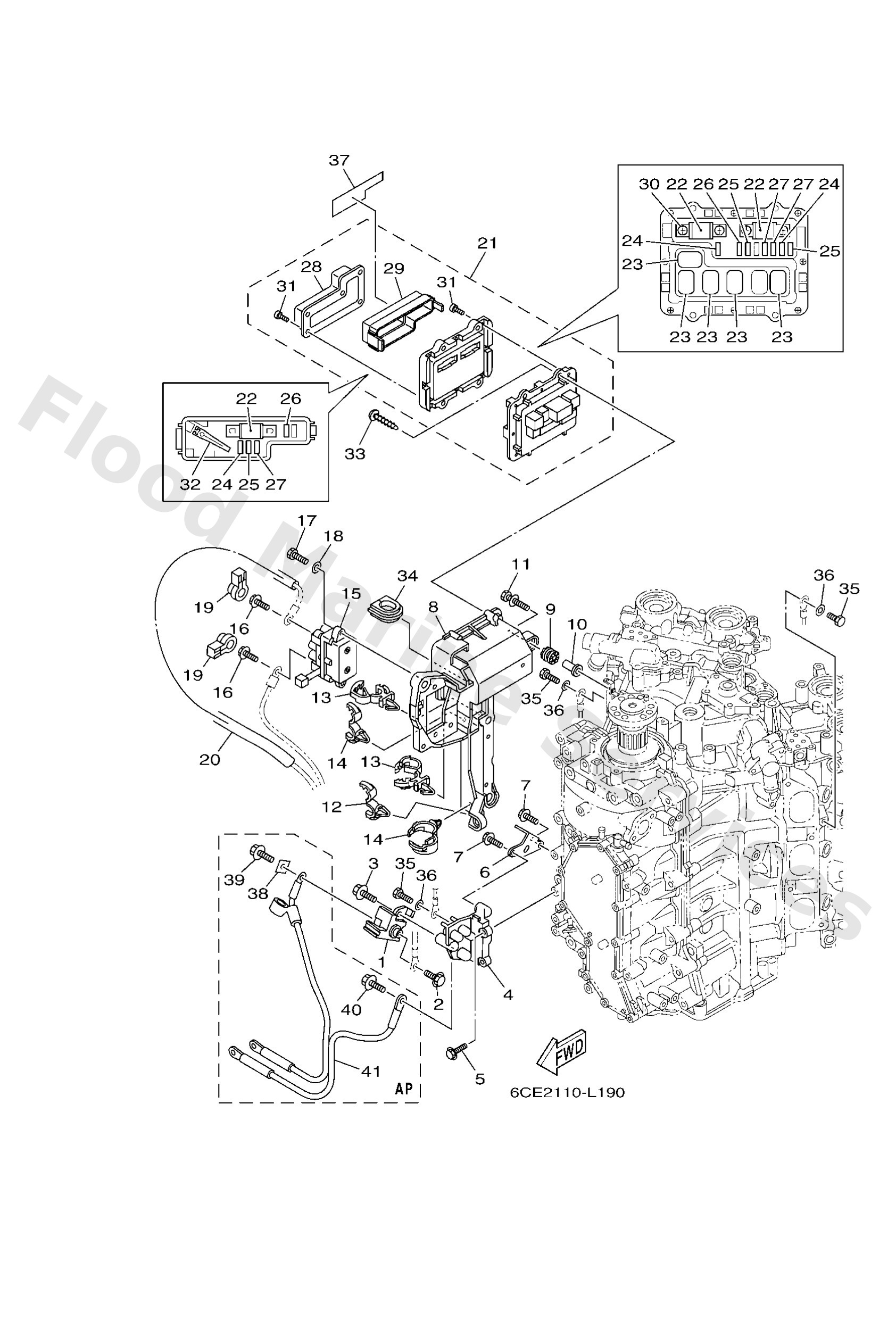

Diagram: ELECTRICAL 3
Parts List
Reference
Description
Price
1
6P28192501
Terminal
Loading…
↗
39
9589508016
AP
Bolt, flange deep recess
Loading…
↗
3
9581408020
Bolt, flange(4hm)
Loading…
↗
4
6CB8192900
Bracket, terminal
Loading…
↗
5
9589506020
Bolt, flange(jk3)
Loading…
↗
6
6CE8258800
Plate
Loading…
↗
7
9589506016
Bolt, flange deep recess
Loading…
↗
8
6CB8194801
Bracket
Loading…
↗
9
64J8551600
Spacer
Loading…
↗
10
69M4275801
Collar
Loading…
↗
11
9011906M56
Bolt, with washer
Loading…
↗
12
9046413249
Clamp
Loading…
↗
13
9046412183
Clamp(jn2)
Loading…
↗
14
9046420181
Clamp(4ap)
Loading…
↗
15
6AW8195000
Relay assembly
Loading…
↗
16
9759506610
Bolt, hexagon w/w deep recess
Loading…
↗
17
9701306020
Bolt(62y)
Loading…
↗
18
9290306600
Washer, plain (646)
Loading…
↗
19
6P28183X00
Cap, terminal
Loading…
↗
20
9044615003
Hose
Loading…
↗
21
6CE8217010
Fuse box assembly
Loading…
↗
22
6CE8215100
Fuse (100a)
Loading…
↗
23
6AW8195A00
Relay assembly
Loading…
↗
24
67F8215140
Fuse (10a)
Loading…
↗
25
67F8215150
Fuse (15a)
Loading…
↗
26
67F8215100
Fuse
Loading…
↗
27
67F8215110
Fuse
Loading…
↗
28
6CB8163910
Cover
Loading…
↗
29
6CB8554400
Case
Loading…
↗
30
68F8284600
Screw, pan head (m5)
Loading…
↗
31
6P28211300
Screw (m3)
Loading…
↗
32
67F2812A00
Puller, fuse
Loading…
↗
33
9778050620
Screw, tapping
Loading…
↗
34
6P28133600
Grommet
Loading…
↗
35
9709506016
Bolt, hexagon deep recess
Loading…
↗
36
9299506600
Washer, plain (646)
Loading…
↗
37
6CE8191920
Graphic, regulator
Loading…
↗
38
6CB8192300
AP
Washer
Loading…
↗
41
6CB8210501
AP
Wire harness
Loading…
↗
