FT25FET (2019)
ELECTRICAL 3

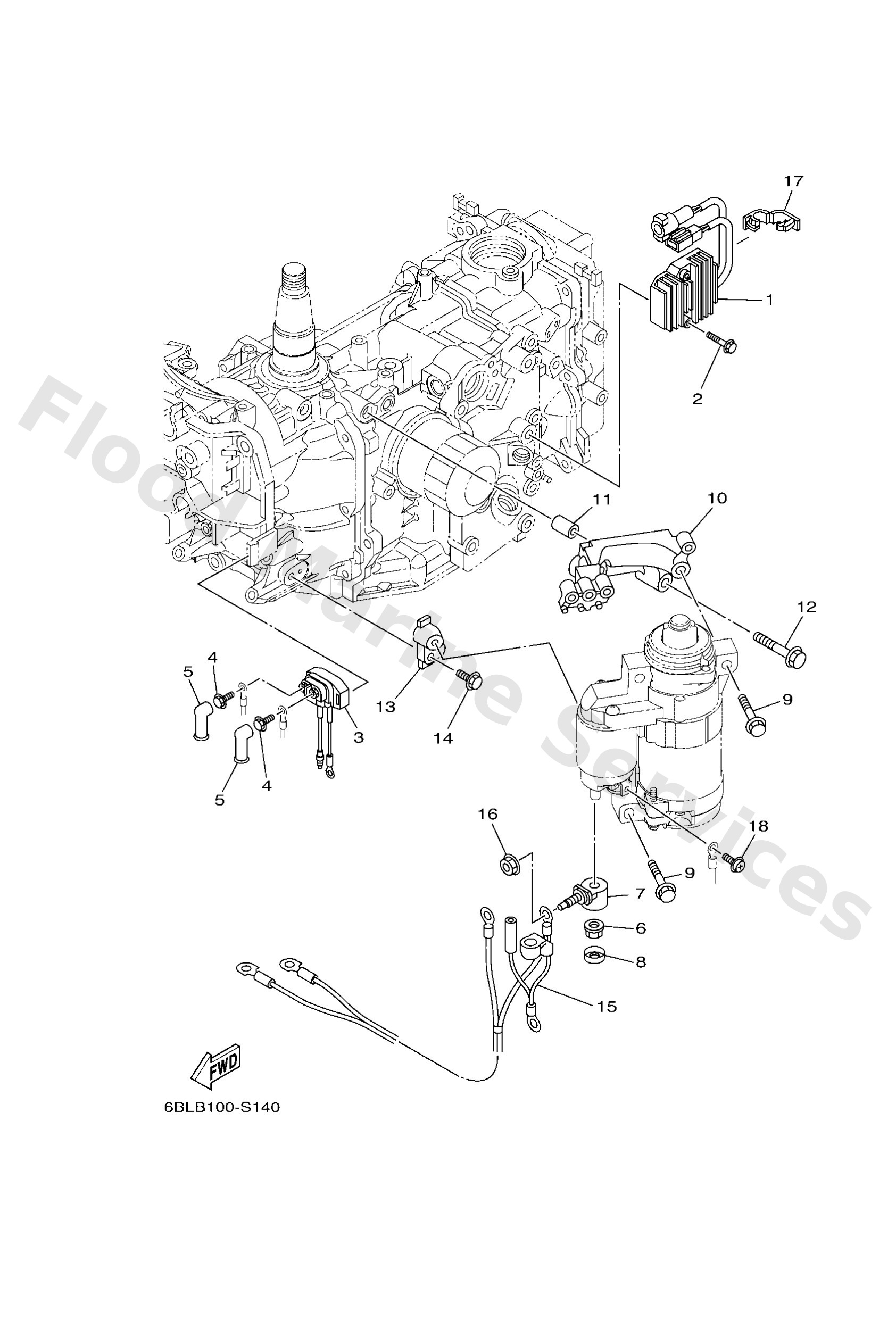

Diagram: ELECTRICAL 3
Parts List
Reference
Description
Price
1
6BL8196000
Rectifier & regulator assembly
Loading…
↗
2
97E9506540
Bolt, hexagon w/w deep recess
Loading…
↗
3
68T8194000
Starter relay assembly
Loading…
↗
4
97E9506610
Bolt, hexagon w/w deep recess
Loading…
↗
5
6G58211910
Cover, lead wire
Loading…
↗
6
6BL8182A00
Nut
Loading…
↗
7
6BL8192500
Terminal
Loading…
↗
8
6BL8183X00
Cap, terminal
Loading…
↗
9
9751308545
Bolt, with washer
Loading…
↗
10
6BL8182200
Bracket, starting motor
Loading…
↗
11
9953010114
Pin, dowel(3vd)
Loading…
↗
13
6BL8182300
Stay, starting motor
Loading…
↗
14
97E7506520
Bolt, hexagon w/w deep recess
Loading…
↗
15
6BL82105U1
Battery cable
Loading…
↗
16
9017908003
Nut
Loading…
↗
17
9046418004
Clamp
Loading…
↗
18
9015905M12
Screw, with washer(6t4)
Loading…
↗
