FT50GET (2007)
ELECTRICAL 3

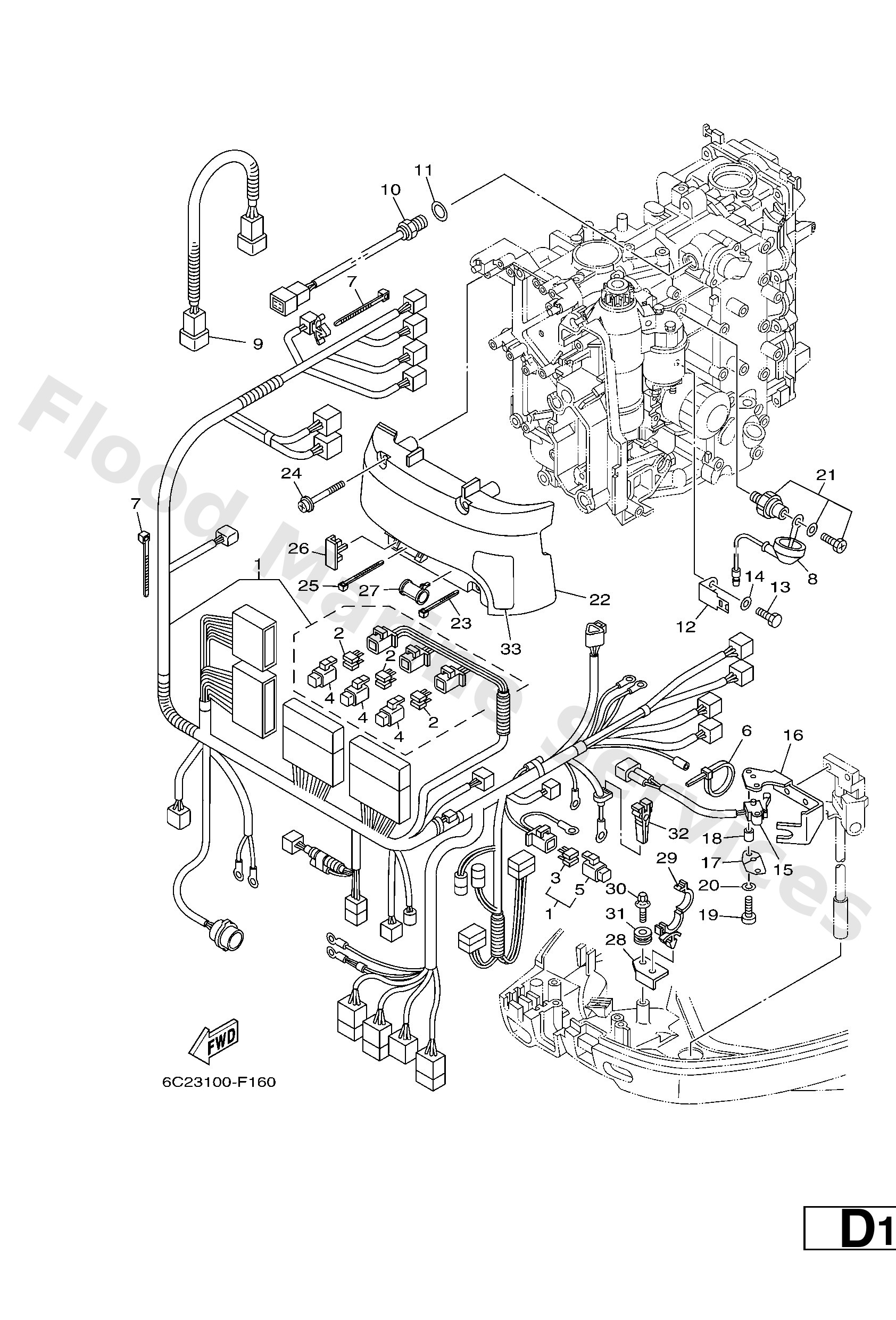

Diagram: ELECTRICAL 3
Parts List
Reference
Description
Price
1
6C58259040
Wire harness assembly
Loading…
↗
2
67F8215100
Fuse
Loading…
↗
3
67F8215110
Fuse
Loading…
↗
4
67F8215B10
Cap (yellow)
Loading…
↗
5
67F8215B20
Cap (green)
Loading…
↗
6
9046513M24
Band, switch cord
Loading…
↗
7
9046513M11
Clamp (6e5)
Loading…
↗
8
68V8131500
Lead wire assembly
Loading…
↗
9
6C58255300
Extension, wire lead
Loading…
↗
10
6C58579000
Thermosensor assembly
Loading…
↗
11
9043014115
Gasket (663)
Loading…
↗
12
6C58238800
Plate
Loading…
↗
13
9709506014
Bolt(gj3)
Loading…
↗
14
9299506600
Washer, plain (646)
Loading…
↗
15
60V8259F00
Switch assembly
Loading…
↗
16
6C58255401
Stay, neutral switch
Loading…
↗
17
61A8258801
Plate
Loading…
↗
18
9038704001
Collar
Loading…
↗
19
9788504016
Screw, panhead (796)
Loading…
↗
20
9299504100
Ybs67-4 washer, spring
Loading…
↗
21
64J8250400
Oil pressure switch assembly
Loading…
↗
22
6C58194200
Cover
Loading…
↗
23
9046513M39
Clamp(6e8)
Loading…
↗
24
9015906M14
Screw, with washer(6r3)
Loading…
↗
26
6C58217600
Damper
Loading…
↗
27
6C58252R00
Damper
Loading…
↗
28
6C54281100
Stay
Loading…
↗
29
9046418007
Clamp
Loading…
↗
30
9011906077
Bolt, with washer
Loading…
↗
31
9048013598
Grommet(4hc)
Loading…
↗
32
67F2812A00
Puller, fuse
Loading…
↗
33
6C58191900
Graphic, regulator
