Yamaha Outboard Parts - ELECTRICAL 3 - FT60DET (2005) | Flood Marine

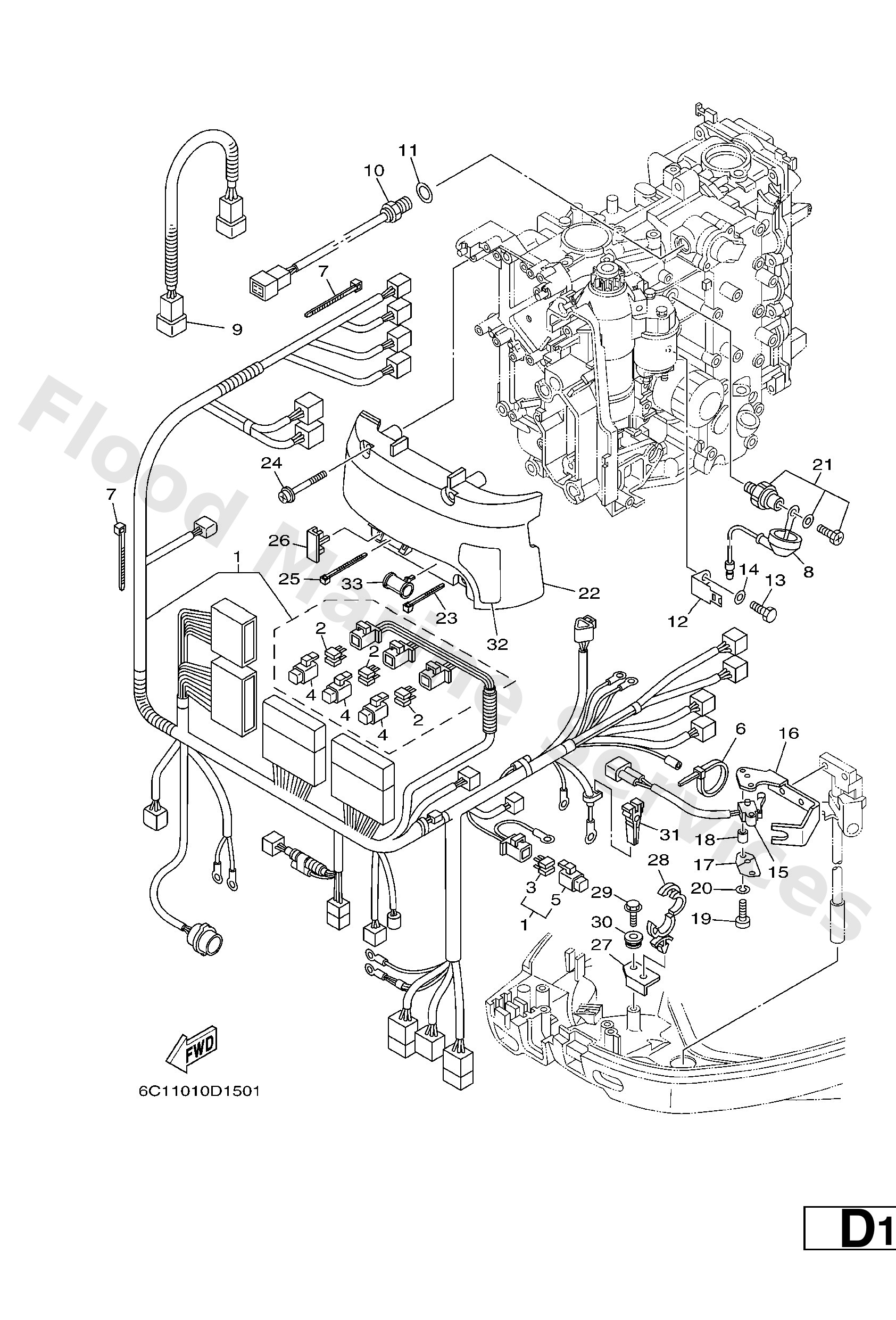

Diagram: ELECTRICAL 3

Diagram

Parts List

Reference
Description
Price


1
6C58259010
Wire Harness assembly
Loading…

↗
2
67F8215100
Fuse
Loading…

↗
3
67F8215110
Fuse
Loading…

↗
4
67F8215B10
Cap (yellow)
Loading…

↗
5
67F8215B20
Cap (green)
Loading…

↗
6
9046513M24
Band, switch cord
Loading…

↗
7
9046513M11
Clamp (6e5)
Loading…

↗
8
68V8131500
Lead wire assembly
Loading…

↗
9
6C58255300
Extension, wire lead
Loading…

↗
10
6C58579000
Thermosensor assembly
Loading…

↗
11
9043014115
Gasket (663)
Loading…

↗
12
6C58238800
Plate
Loading…

↗
13
9709506014
Bolt(gj3)
Loading…

↗
14
9299506600
Washer, plain (646)
Loading…

↗
15
60V8259F00
Switch assembly
Loading…

↗
16
6C58255400
Stay, neutral switch
Loading…

↗
17
61A8258801
Plate
Loading…

↗
18
9038704001
Collar
Loading…

↗
19
9788504016
Screw, panhead (796)
Loading…

↗
20
9299504100
Ybs67-4 washer, spring
Loading…

↗
21
64J8250400
Oil pressure switch assembly
Loading…

↗
22
6C58194200
Cover
Loading…

↗
23
9046513M39
Clamp(6e8)
Loading…

↗
24
9015906M14
Screw, with washer(6r3)
Loading…

↗
26
6C58217600
Damper
Loading…

↗
27
6C54281100
Stay
Loading…

↗
28
9046418246
Clamp(4tr)
Loading…

↗
29
9010906M80
Bolt
Loading…

↗
30
9048012072
Grommet(53y)
Loading…

↗
31
67F2812A00
Puller, fuse
Loading…

↗
32
6C58191900
Graphic, regulator
Loading…

↗
33
6C58252R00 6C2)1001728-,6C6)1001973-
Damper
Loading…

↗
