FT8GE (2016)
ELECTRICAL 3

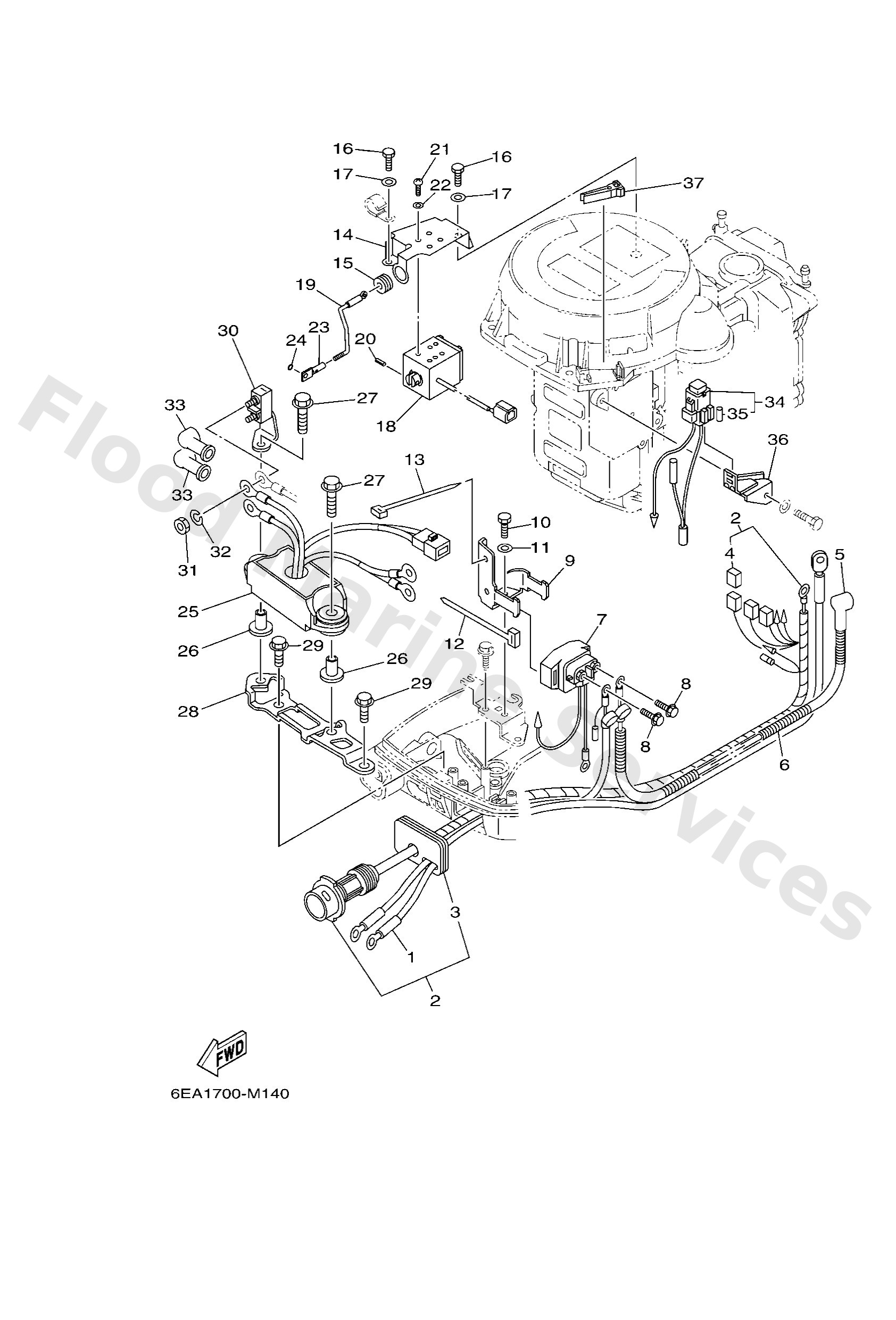

Diagram: ELECTRICAL 3
Parts List
Reference
Description
Price
1
69G8210501
Battery cable (l: 3.0m)
Loading…
↗
2
69G8259010
Wire harness assembly
Loading…
↗
3
68T4272440
Grommet
Loading…
↗
4
6N68258200
Cover, wire harness
Loading…
↗
5
6G88211700
Wire, lead
Loading…
↗
6
9044610M86
Hose
Loading…
↗
7
68T8194000
Starter relay assembly
Loading…
↗
8
9759506610
Bolt, hexagon w/w deep recess
Loading…
↗
9
68T8194501
Plate, switch fitting
Loading…
↗
10
9709506012
Bolt(gh1)
Loading…
↗
11
9299506600
Washer, plain (646)
Loading…
↗
12
9046513M11
Clamp (6e5)
Loading…
↗
14
68T8611200
Stay, solenoid
Loading…
↗
15
9048013018
Grommet (462)
Loading…
↗
18
68T8611100
Coil, solenoid
Loading…
↗
19
68T4123700
Joint, link
Loading…
↗
20
9169030010
Pin, spring (663)
Loading…
↗
21
9788004008
Screw, pan head (713)
Loading…
↗
22
9299004600
Washer, plain (646)
Loading…
↗
23
68T8611700
Hook, wire pull
Loading…
↗
24
9321003261
O-ring (663)
Loading…
↗
25
69G8195000
Relay assembly
Loading…
↗
26
9038706M03
Collar (676)
Loading…
↗
27
9011906M56
Bolt, with washer
Loading…
↗
28
69G8194801
Bracket
Loading…
↗
29
9010906M86
Bolt
Loading…
↗
30
69G8192500
Terminal
Loading…
↗
31
9017006M30
Nut(62x)
Loading…
↗
32
9020406M00
Washer, spring(62x)
Loading…
↗
33
6G58211900
Cover, lead wire
Loading…
↗
34
68T8215000
Fuse holder assembly
Loading…
↗
35
66V8215100
Fuse (10a)
Loading…
↗
36
68T8217101
Stay, fuse box
Loading…
↗
37
67F2812A00
Puller, fuse
