Z150QETO (2003)
ELECTRICAL 3

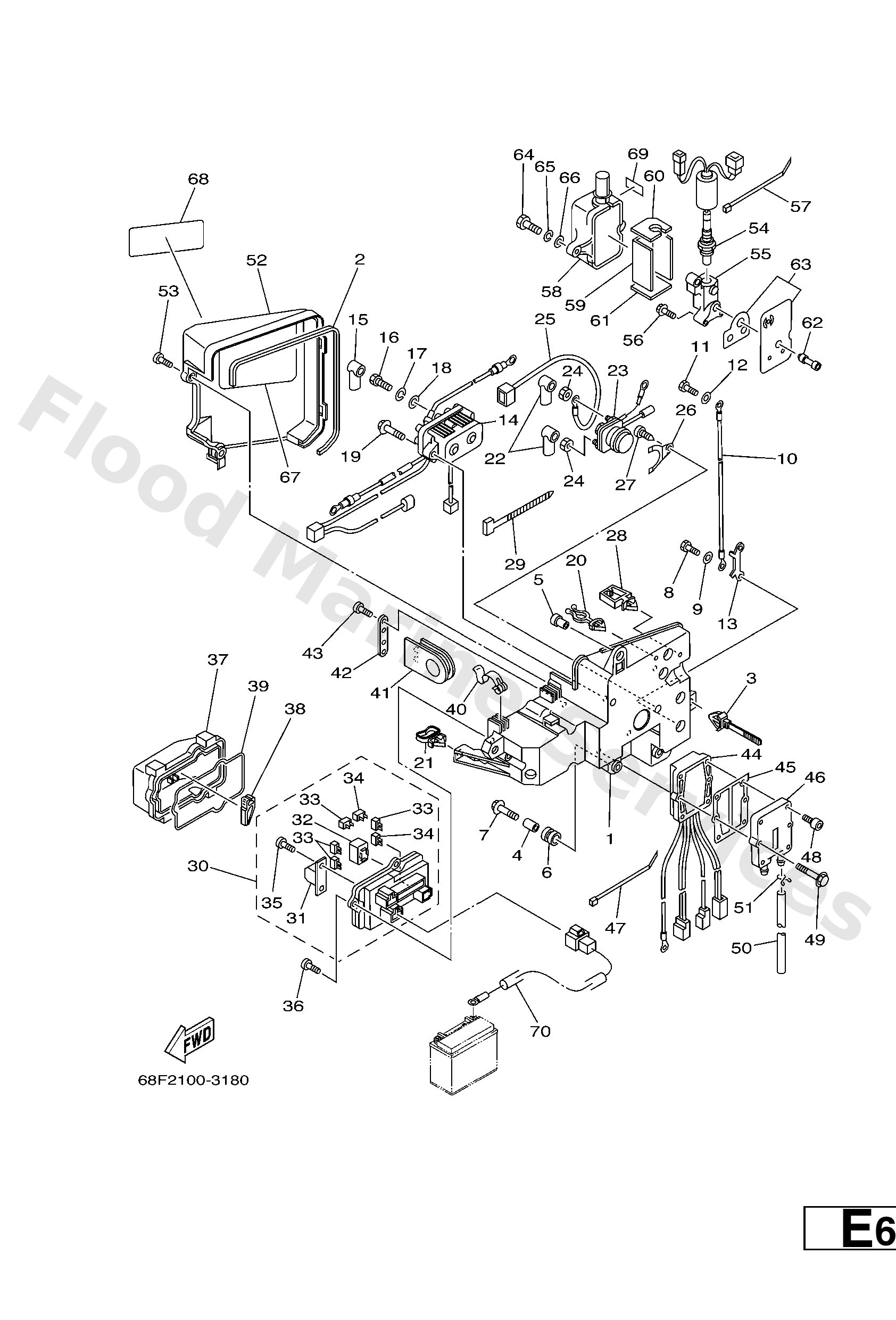

Diagram: ELECTRICAL 3
Parts List
Reference
Description
Price
1
68F8194800
Bracket
Loading…
↗
2
68F8253500
Grommet
Loading…
↗
3
9046512M56
Clamp(62t)
Loading…
↗
4
6244254200
Collar
Loading…
↗
5
9038706M91
Collar
Loading…
↗
6
6A08231700
Damper, ignition coil
Loading…
↗
7
9011906M65
Bolt, with washer
Loading…
↗
8
9709506012
Bolt(gh1)
Loading…
↗
9
9299506600
Washer, plain (646)
Loading…
↗
10
68F8194920
Wire, lead
Loading…
↗
13
61A8714900
Connector
Loading…
↗
14
68F8195001
Relay assembly
Loading…
↗
15
6828211901
Cover, lead wire
Loading…
↗
16
9709506010
Bolt
Loading…
↗
17
9299506100
Washer(6a1)
Loading…
↗
19
9011906MA4
Bolt, with washer
Loading…
↗
20
9046418M46
Clamp(65j)
Loading…
↗
21
9046423199
Clamp(4hm)
Loading…
↗
23
61A8194A00
Relay
Loading…
↗
24
9578006300
Nut, nylon (6g1)
Loading…
↗
25
68F8211700
Wire, lead
Loading…
↗
26
61A8195200
Holder, relay
Loading…
↗
27
9778050612
Screw, tapping(61a)
Loading…
↗
28
9046405141
Clamp(7ly)
Loading…
↗
29
9046511M52
Clamp(6e7)
Loading…
↗
30
68F8217000
Go to P/N ) PE0-OM-070039
Fuse box assembly
Loading…
↗
31
68F8215100
Go to P/N ) PE0-OM-070039
Fuse (80A)
Loading…
↗
32
68F8195A00
Relay assembly
Loading…
↗
33
67F8215100
Fuse
Loading…
↗
34
67F8215110
Fuse
Loading…
↗
35
68F8284600
Screw, pan head (m5)
Loading…
↗
36
9778050620
Screw, tapping
Loading…
↗
37
68F8554400
Case
Loading…
↗
38
67F2812A00
Puller, fuse
Loading…
↗
39
68F8217600
Damper
Loading…
↗
40
68F8572S00
Spring
Loading…
↗
41
68F8133600
Grommet
Loading…
↗
42
68F8112800
Clamp
Loading…
↗
43
9778050616
Screw, pan head tapping (ak5)
Loading…
↗
44
68F8196001
Rectifier & regulator assembly
Loading…
↗
45
69J81975A0
Plate, rectifier fitting
Loading…
↗
46
69J81972011S
Cover, rectifier
Loading…
↗
47
9046513M18
Clamp
Loading…
↗
48
9011006M07
Bolt, hexagon socket head
Loading…
↗
50
9044509097
Hose (l1500)
Loading…
↗
51
9046708M18
Clip
Loading…
↗
52
68F8194200
Cover
Loading…
↗
53
9016905M00
Screw truss head tapping
Loading…
↗
54
68F8592A00
Sensor
Loading…
↗
55
65L1139500
Holder
Loading…
↗
56
9011906M74
Bolt, with washer(63m)
Loading…
↗
58
65L8583200
Case, under
Loading…
↗
59
65L1135400
Gasket
Loading…
↗
60
65L1131N00
Gasket, holder
Loading…
↗
61
65L1139600
Gasket, holder
Loading…
↗
62
68F1135300
Joint
Loading…
↗
63
68FW113500
Seal, cylinder
Loading…
↗
64
9709506030
Bolt(jf7)
Loading…
↗
67
68F8191910
Graphic, Regulator
Loading…
↗
68
68F8191900
Go to P/N ) PE0-OM-070039
Graphic, Regulator
Loading…
↗
69
65L8362550
Mark 5
Loading…
↗
70
68F8194900
AP
Wire, lead
Loading…
↗
