Z200NETO (2003)
ELECTRICAL 3

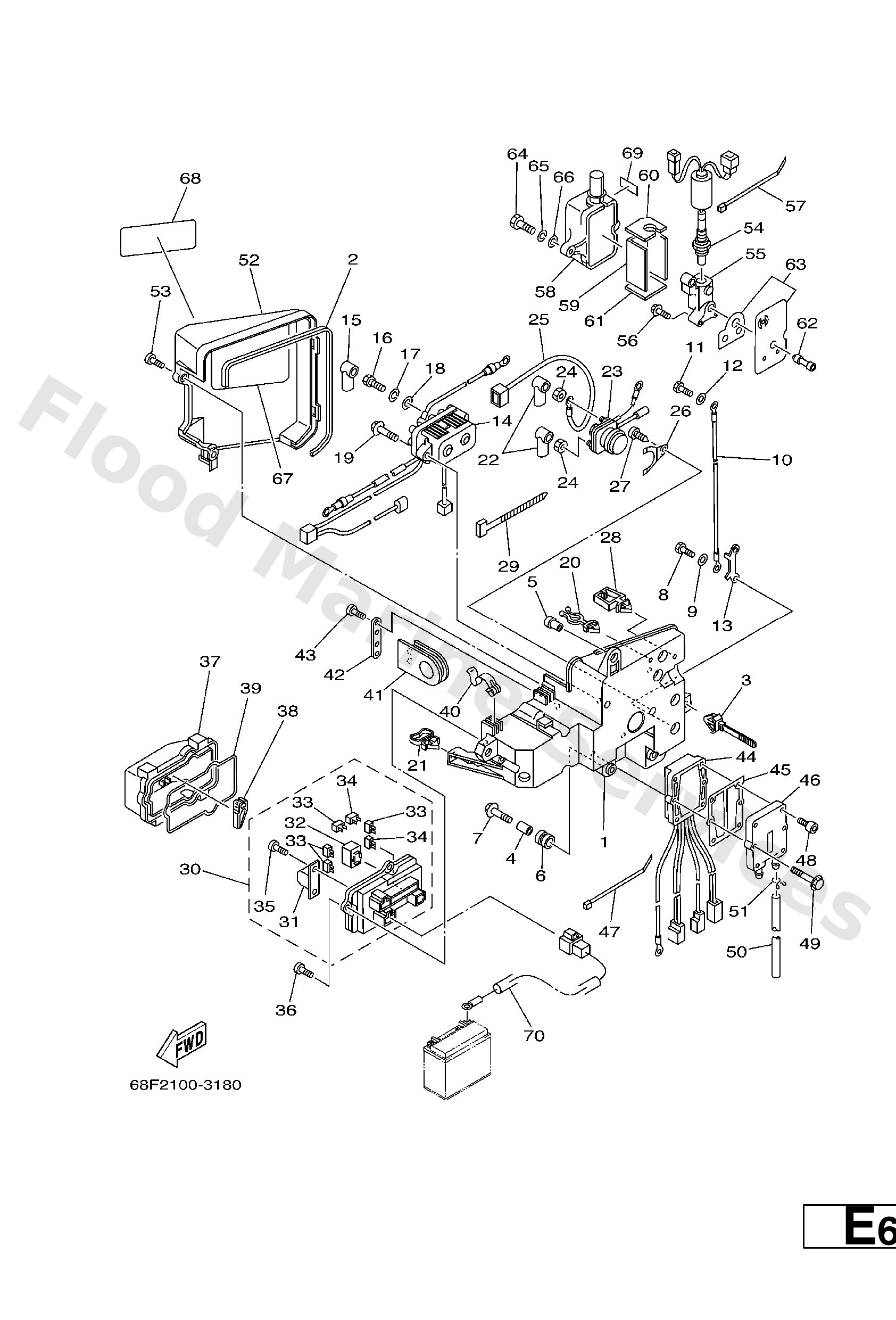

Diagram: ELECTRICAL 3
Parts List
Reference
Description
Price
1
68F−81948−00
Bracket
Loading…
↗
2
68F−82535−00
Grommet
Loading…
↗
3
90465−12M56
Clamp(62t)
Loading…
↗
4
624−42542−00
Collar
Loading…
↗
5
90387−06M91
Collar
Loading…
↗
6
6A0−82317−00
Damper, ignition coil
Loading…
↗
7
90119−06M65
Bolt, with washer
Loading…
↗
8
97095−06012
Bolt(gh1)
Loading…
↗
9
92995−06600
Washer, plain (646)
Loading…
↗
10
68F−81949−20
Wire, lead
Loading…
↗
13
61A−87149−00
Connector
Loading…
↗
14
68F−81950−01
Relay assembly
Loading…
↗
15
682−82119−01
Cover, lead wire
Loading…
↗
16
97095−06010
Bolt
Loading…
↗
17
92995−06100
Washer(6a1)
Loading…
↗
19
90119−06MA4
Bolt, with washer
Loading…
↗
20
90464−18M46
Clamp(65j)
Loading…
↗
21
90464−23199
Clamp(4hm)
Loading…
↗
23
61A−8194A−00
Relay
Loading…
↗
24
95780−06300
Nut, nylon (6g1)
Loading…
↗
25
68F−82117−00
Wire, lead
Loading…
↗
26
61A−81952−00
Holder, relay
Loading…
↗
27
97780−50612
Screw, tapping(61a)
Loading…
↗
28
90464−05141
Clamp(7ly)
Loading…
↗
29
90465−11M52
Clamp(6e7)
Loading…
↗
30
68F−82170−00
Go to P/N ) PE0-OM-070038
Fuse box assembly
Loading…
↗
31
68F−82151−00
Go to P/N ) PE0-OM-070038
Fuse (80A)
Loading…
↗
32
68F−8195A−00
Relay assembly
Loading…
↗
33
67F−82151−00
Fuse
Loading…
↗
34
67F−82151−10
Fuse
Loading…
↗
35
68F−82846−00
Screw, pan head (m5)
Loading…
↗
36
97780−50620
Screw, tapping
Loading…
↗
37
68F−85544−00
Case
Loading…
↗
38
67F−2812A−00
Puller, fuse
Loading…
↗
39
68F−82176−00
Damper
Loading…
↗
40
68F−8572S−00
Spring
Loading…
↗
41
68F−81336−00
Grommet
Loading…
↗
42
68F−81128−00
Clamp
Loading…
↗
43
97780−50616
Screw, pan head tapping (ak5)
Loading…
↗
44
68F−81960−01
Rectifier & regulator assembly
Loading…
↗
45
69J−81975−A0
Plate, rectifier fitting
Loading…
↗
46
69J−81972−01−1S
Cover, rectifier
Loading…
↗
47
90465−13M18
Clamp
Loading…
↗
48
90110−06M07
Bolt, hexagon socket head
Loading…
↗
50
90445−09097
Hose (l1500)
Loading…
↗
51
90467−08M18
Clip
Loading…
↗
52
68F−81942−00
Cover
Loading…
↗
53
90169−05M00
Screw truss head tapping
Loading…
↗
54
68F−8592A−00
Sensor
Loading…
↗
55
65L−11395−00
Holder
Loading…
↗
56
90119−06M74
Bolt, with washer(63m)
Loading…
↗
58
65L−85832−00
Case, under
Loading…
↗
59
65L−11354−00
Gasket
Loading…
↗
60
65L−1131N−00
Gasket, holder
Loading…
↗
61
65L−11396−00
Gasket, holder
Loading…
↗
62
68F−11353−00
Joint
Loading…
↗
63
68F−W1135−00
Seal, cylinder
Loading…
↗
64
97095−06030
Bolt(jf7)
Loading…
↗
67
68F−81919−10
Graphic, Regulator
Loading…
↗
68
68F−81919−00
Go to P/N ) PE0-OM-070038
Graphic, Regulator
Loading…
↗
69
65L−83625−50
Mark 5
Loading…
↗
70
68F−81949−00
AP
Wire, lead
Loading…
↗
