Z250DETO (2003)
ELECTRICAL 3

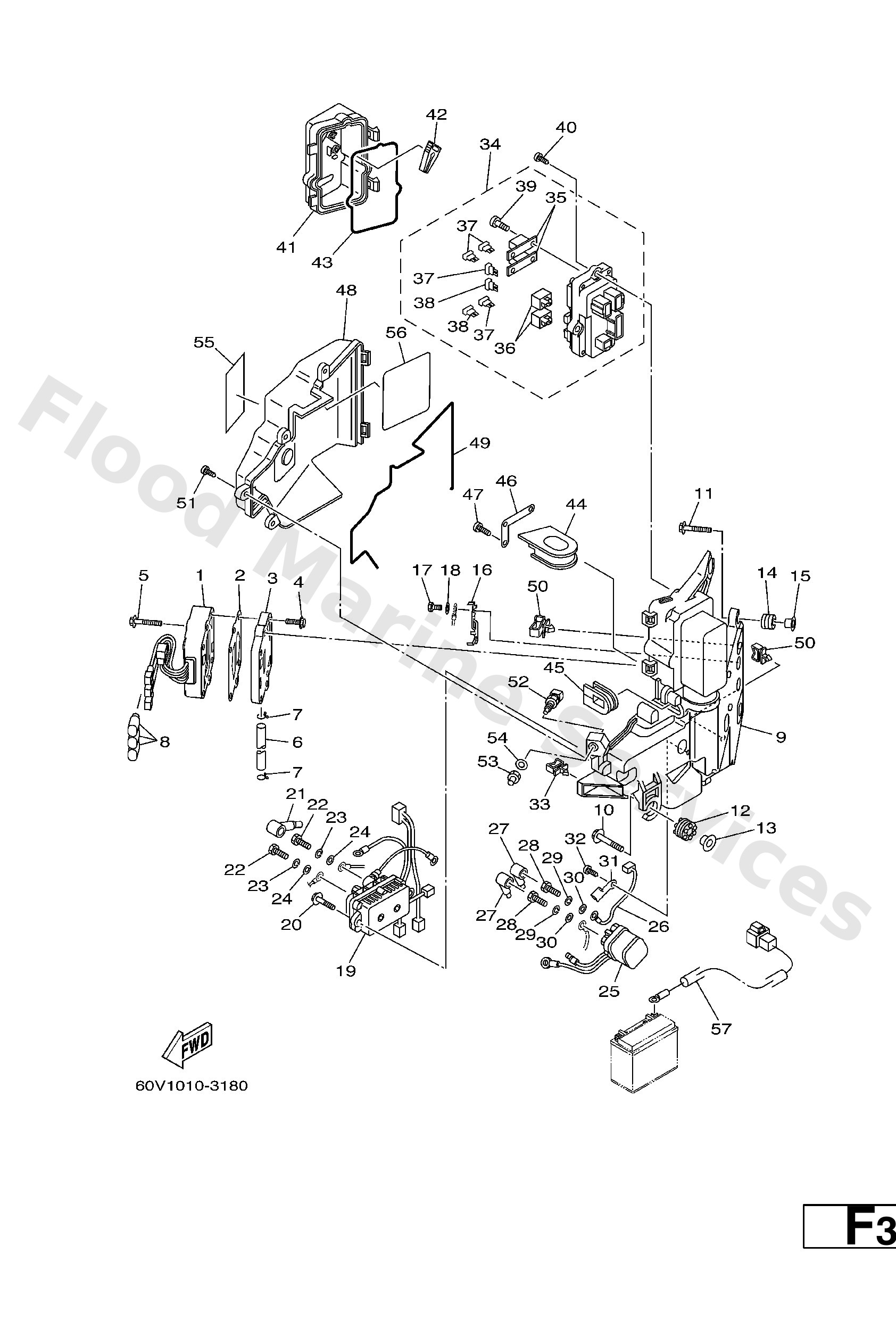

Diagram: ELECTRICAL 3
Parts List
Reference
Description
Price
1
60V−81960−00
Rectifier & regulator assembly
Loading…
↗
2
60V−81975−A0
Plate, rectifier fitting
Loading…
↗
3
60V−81972−00−1S
Cover, rectifier
Loading…
↗
4
90119−06MA3
Bolt, with washer
Loading…
↗
5
90119−06MA4
Bolt, with washer
Loading…
↗
6
90445−09M25
Hose (l1500)
Loading…
↗
7
90467−08M18
Clip
Loading…
↗
8
6L2−82599−01
Cover, connecter
Loading…
↗
9
60V−81948−00
Bracket
Loading…
↗
10
68F−85119−00
Bolt
Loading…
↗
11
90119−06M65
Bolt, with washer
Loading…
↗
12
68F−85516−01
Spacer
Loading…
↗
13
68F−86129−00
Collar
Loading…
↗
14
6A0−82317−00
Damper, ignition coil
Loading…
↗
15
624−42542−00
Collar
Loading…
↗
16
60V−87149−00
Connector
Loading…
↗
17
97095−06012
Bolt(gh1)
Loading…
↗
18
92995−06600
Washer, plain (646)
Loading…
↗
19
60V−81950−00
Relay assembly
Loading…
↗
21
682−82119−01
Cover, lead wire
Loading…
↗
22
97095−06010
Bolt
Loading…
↗
23
92995−06100
Washer(6a1)
Loading…
↗
25
68V−8194A−00
Relay
Loading…
↗
26
68F−82117−00
Wire, lead
Loading…
↗
31
68V−81953−00
Stay, relay
Loading…
↗
32
97780−60620
Screw, tapping(6k8)
Loading…
↗
33
90464−23199
Clamp(4hm)
Loading…
↗
34
60V−82170−00
Go to P/N ) PE0-OM-070040
Fuse box assembly
Loading…
↗
35
60V−82151−00
Go to P/N ) PE0-OM-070040
Fuse (100A)
Loading…
↗
36
68F−8195A−00
Relay assembly
Loading…
↗
37
67F−82151−00
Fuse
Loading…
↗
38
67F−82151−10
Fuse
Loading…
↗
39
68F−82846−00
Screw, pan head (m5)
Loading…
↗
40
97780−50616
Screw, pan head tapping (ak5)
Loading…
↗
41
60V−85544−00
Case
Loading…
↗
42
67F−2812A−00
Puller, fuse
Loading…
↗
43
60V−82157−00
Damper
Loading…
↗
44
60V−81336−00
Grommet
Loading…
↗
45
60V−81336−10
Grommet
Loading…
↗
46
60V−81128−00
Clamp
Loading…
↗
48
60V−81942−00
Cover
Loading…
↗
49
60V−82176−00
Damper
Loading…
↗
51
90169−05M00
Screw truss head tapping
Loading…
↗
52
65L−85886−00
Thermosensor
Loading…
↗
53
60V−85553−00
19 −
Loading…
↗
54
90201−12M34
Washer (692)
Loading…
↗
55
60V−81919−00
Go to P/N ) PE0-OM-070040
Graphic, Regulator
Loading…
↗
56
60V−81919−10
Graphic, regulator
Loading…
↗
57
69J−81949−00
AP
Wire, lead (isolator, 3.8m )
