250BETO (2002)
ELECTRICAL 4

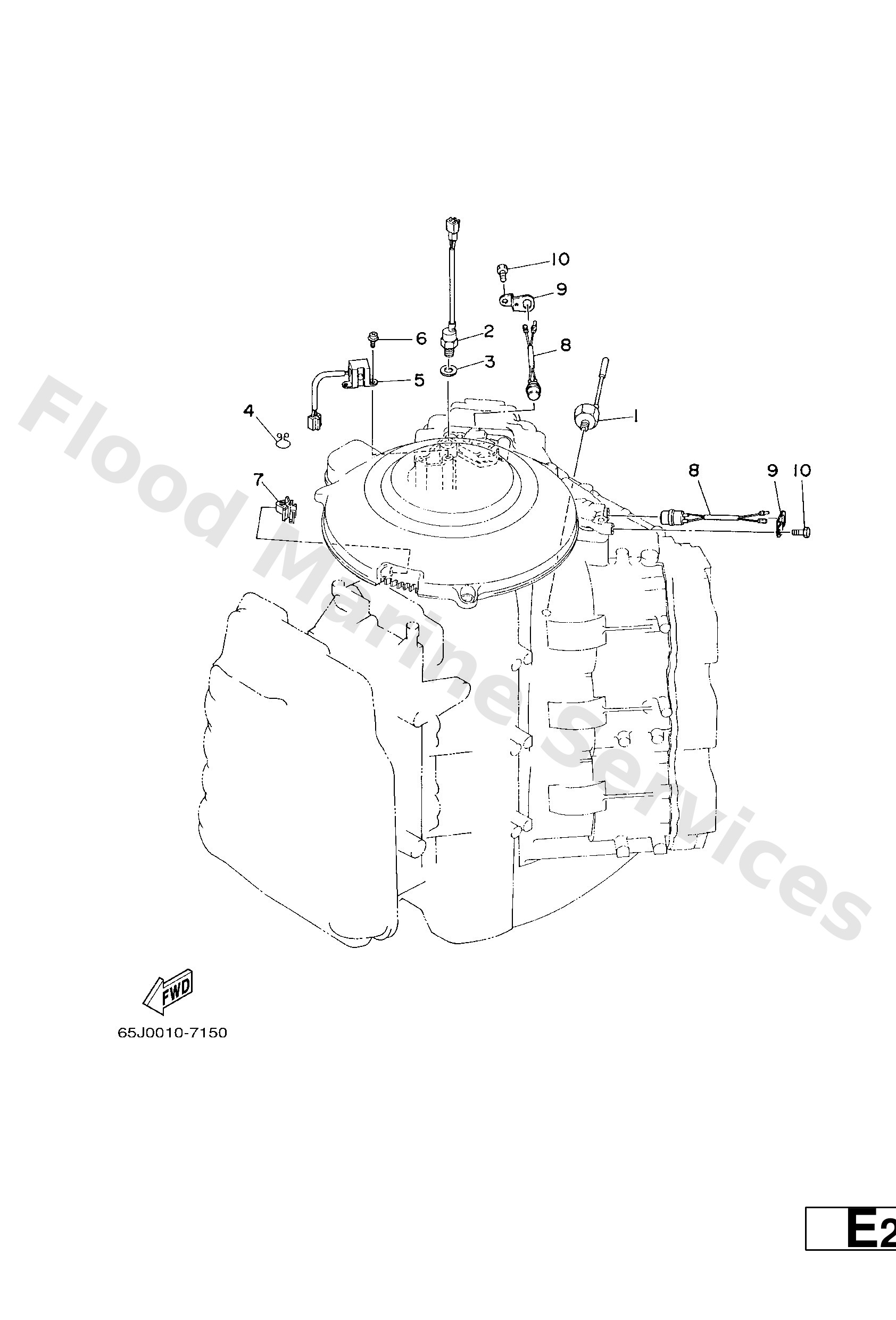

Diagram: ELECTRICAL 4
Parts List
Reference
Description
Price
1
61A--85780--00
Sensor, knock
Loading…
↗
2
61A--85790--00
Thermosensor assembly
Loading…
↗
3
92990--10600
Washer, plate
Loading…
↗
4
90464--12M48
Clamp
Loading…
↗
5
61A8589500
Crank position sender
Loading…
↗
6
97885--05012
Screw,pan head (646)
Loading…
↗
7
90464--09M47
Clamp(65j)
Loading…
↗
8
61A--82560--00
Thermo switch assembly
Loading…
↗
9
61A--8252U--00
Cover
Loading…
↗
10
97080--06012
Bolt(gh1)
Loading…
↗
