E60HWHD (2003)
ELECTRICAL 4

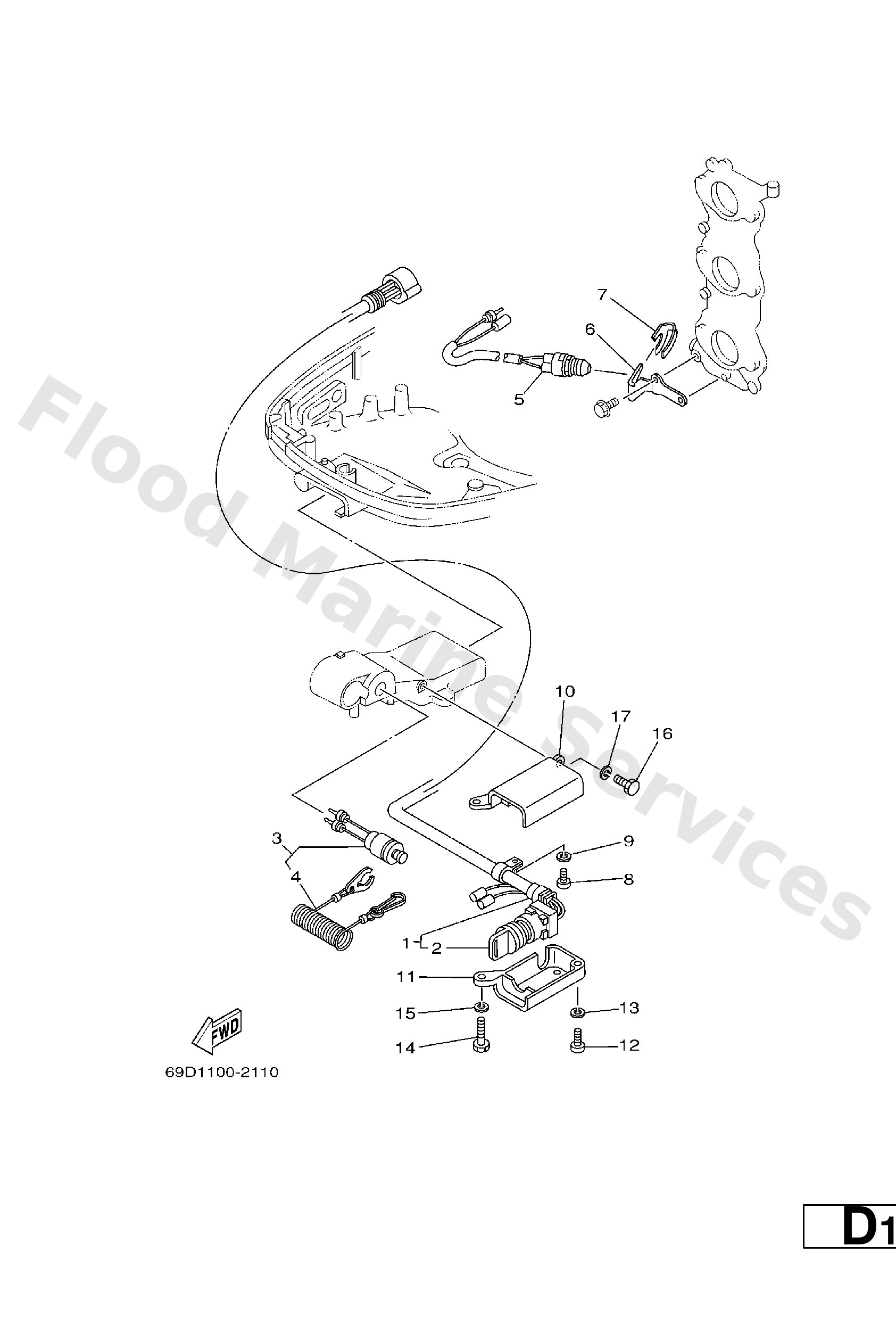

Diagram: ELECTRICAL 4
Parts List
Reference
Description
Price
1
6H3−82510−02
Main switch assembly
Loading…
↗
2
676−82577−00
Cap, key
Loading…
↗
3
688−82575−01
Engine stop switch assembly
Loading…
↗
4
682−82556−00
Lanyard, stop switch
Loading…
↗
5
6H3−82540−00
Neutral switch assembly
Loading…
↗
6
6H3−82554−00
Stay, neutral switch
Loading…
↗
7
663−82555−01
Plate
Loading…
↗
8
97885−06012
Screw, pan head(62j)
Loading…
↗
9
92995−06100
Washer(6a1)
Loading…
↗
10
697−8252E−01−4D
15 −
Loading…
↗
11
697−8252F−01−4D
Cover, main switch 2
Loading…
↗
12
97880−06025
Screw, pan head(6b0)
Loading…
↗
13
92990−06100
Washer(6a1)
Loading…
↗
14
97013−06030
Bolt
Loading…
↗
15
92903−06100
Washer(6a1)
Loading…
↗
16
97013−06020
Bolt(62y)
Loading…
↗
