F100FET (2017)
ELECTRICAL 4

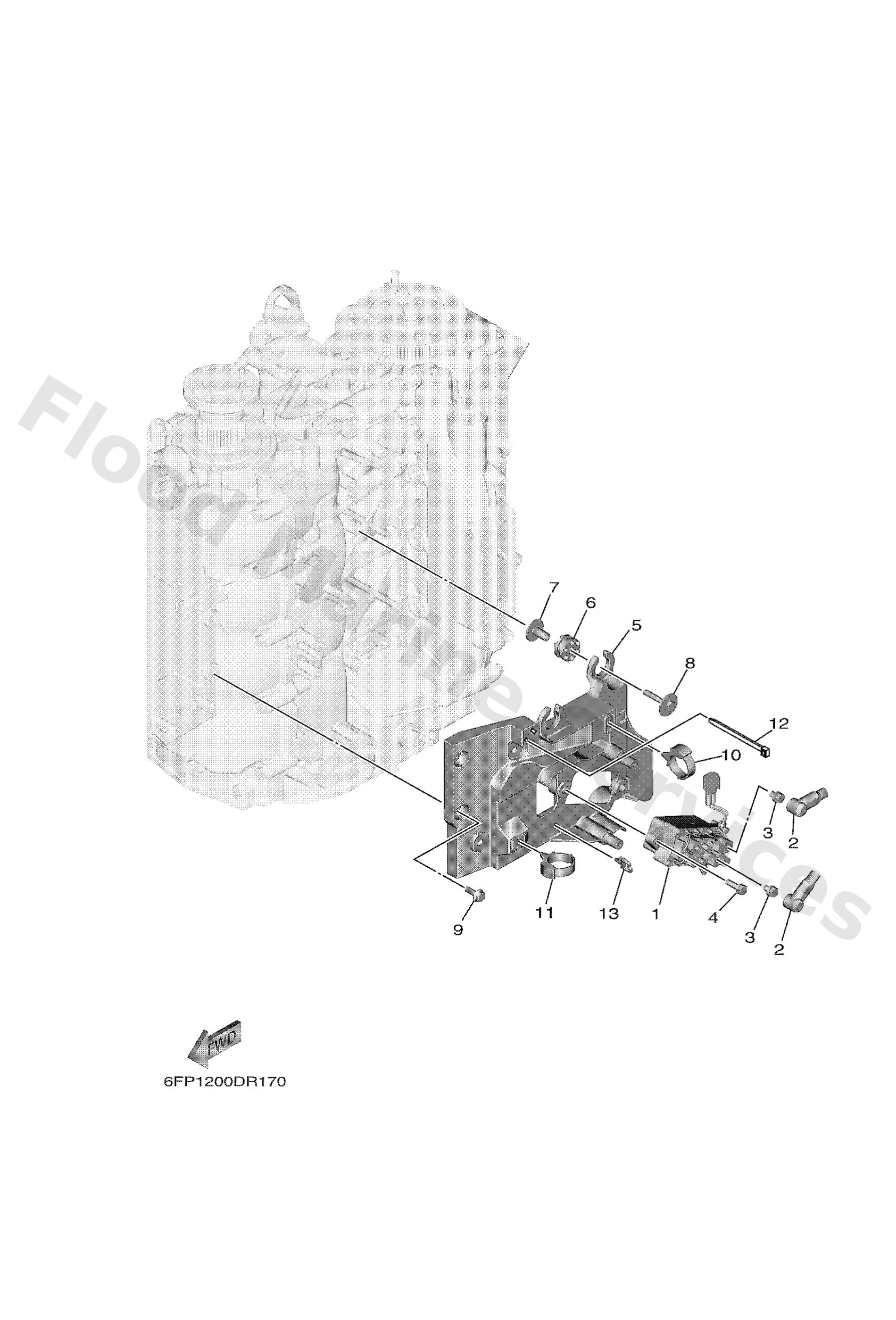

Diagram: ELECTRICAL 4
Parts List
Reference
Description
Price
1
63P8195000
Relay assembly
Loading…
↗
2
6828211901
Cover, lead wire
Loading…
↗
3
9759506610
Bolt, hexagon w/w deep recess
Loading…
↗
4
9759506520
Bolt(7u8)
Loading…
↗
5
6FP8195200
Holder, relay
Loading…
↗
6
68F8551601
Spacer
Loading…
↗
7
9038706176
Collar
Loading…
↗
8
68F8511900
Bolt
Loading…
↗
9
9589506016
Bolt, flange deep recess
Loading…
↗
10
9046412183
Clamp(jn2)
Loading…
↗
12
9046513M11
Clamp (6e5)
Loading…
↗
13
9046411121
Clamp(4gy)
Loading…
↗
