F130AET (2015)
ELECTRICAL 4

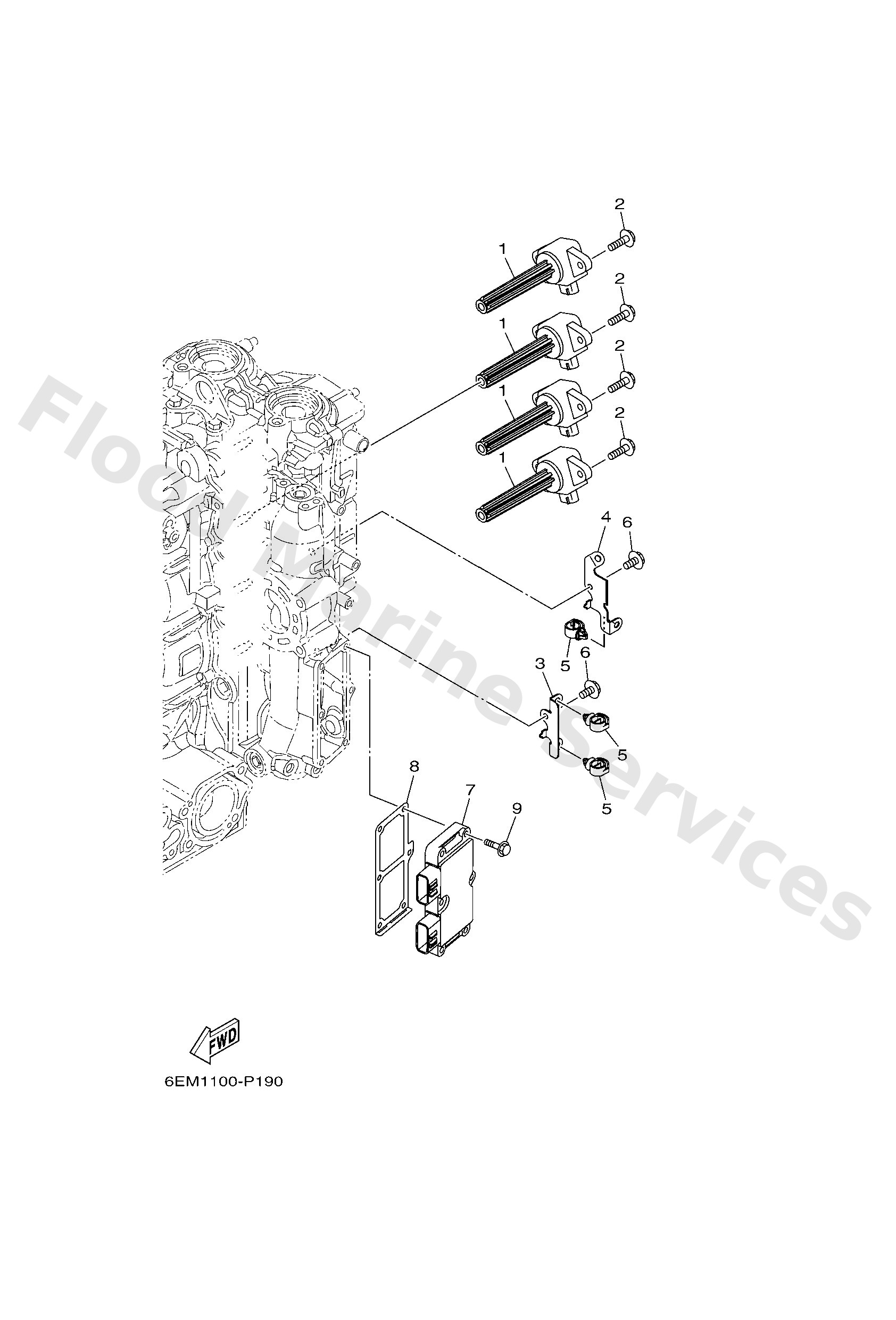

Diagram: ELECTRICAL 4
Parts List
Reference
Description
Price
1
6P28231001
Ignition coil assembly
Loading…
↗
2
9589506020
Bolt, flange(jk3)
Loading…
↗
3
6EM8238800
Plate
Loading…
↗
4
6EM8238900
Plate 2
Loading…
↗
5
9046413249
Clamp
Loading…
↗
6
9589506012
Bolt, flange deep recess
Loading…
↗
7
6EK8196000
Rectifier & regulator assembly
Loading…
↗
8
6EK8197500
Plate, rectifier fitting
Loading…
↗
9
9759506530
Bolt, hexagon w/w deep recess
Loading…
↗
