F200B (2021)
ELECTRICAL 4

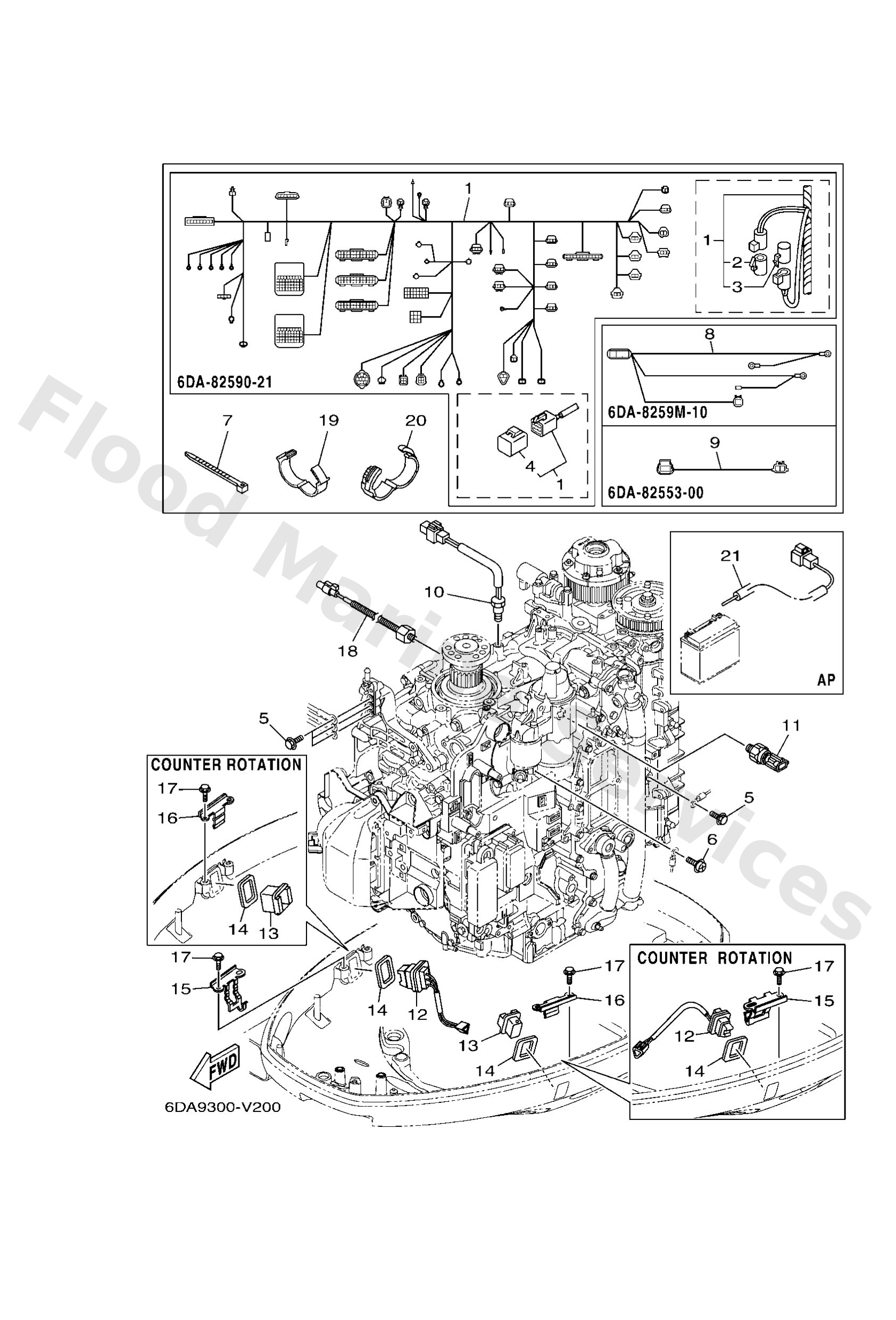

Diagram: ELECTRICAL 4
Parts List
Reference
Description
Price
1
6DA8259021
Wire harness assembly
Loading…
↗
2
6DA8258200
Cap 1 (female)
Loading…
↗
3
6DA8258210
Cap 1 (male)
Loading…
↗
4
6Y88258211
White cap 1 (4pin)
Loading…
↗
5
97E9506516
Bolt, hexagon w/w deep recess
Loading…
↗
6
9798504308
Screw, with washer
Loading…
↗
7
9046511M59
Clamp(63m)
Loading…
↗
8
6DA8259M10
Wire harness assembly 2
Loading…
↗
9
6DA8255300
Extension, wire lead
Loading…
↗
10
6CB8579000
Thermosensor assembly
Loading…
↗
11
6AW8365100
Sender, oil pressure
Loading…
↗
12
69J8256301
Trim & tilt switch assembly
Loading…
↗
13
69J4272301
Cover, bottom
Loading…
↗
14
69J8258701
Gasket
Loading…
↗
15
63P8361401
Bracket
Loading…
↗
16
6DA8361400
Bracket
Loading…
↗
17
95D9506012
Bolt, flange deep recess
Loading…
↗
18
6CJ8578000
Sensor, knock
Loading…
↗
19
9046426001
Clamp
Loading…
↗
20
9046428003
Clamp
Loading…
↗
21
69J8194903
AP
Wire, lead (isolator, 3.8m )
