F200CB (2023)
ELECTRICAL 4

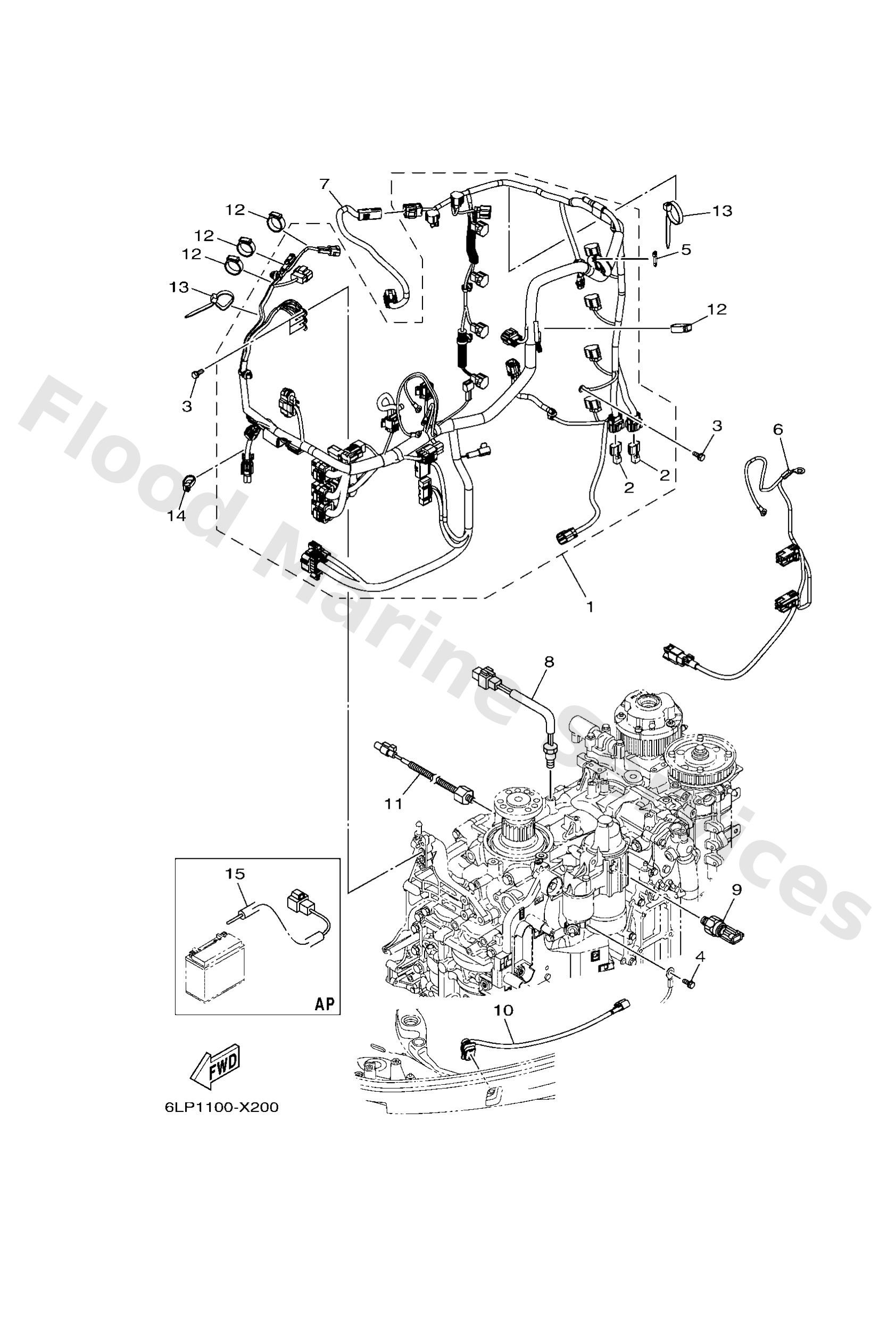

Diagram: ELECTRICAL 4
Parts List
Reference
Description
Price
1
6LP8259000
Wire harness assembly
Loading…
↗
2
6AW8258200
Cap 1
Loading…
↗
3
97E9506516
Bolt, hexagon w/w deep recess
Loading…
↗
4
9798504308
Screw, with washer
Loading…
↗
5
9046511M59
Clamp(63m)
Loading…
↗
6
6DA8259M00
Wire harness assembly 2
Loading…
↗
7
6DA8255300
Extension, wire lead
Loading…
↗
8
6CB8579000
Thermosensor assembly
Loading…
↗
9
6AW8365101
Sender, oil pressure
Loading…
↗
10
6LH8256300
Trim & tilt switch assembly
Loading…
↗
11
6CJ8578001
Sensor, knock
Loading…
↗
12
9046426001
Clamp
Loading…
↗
13
9046415195
Clamp(4fm)
Loading…
↗
14
9046511M10
Clamp
Loading…
↗
15
69J8194903
AP
Wire, lead (isolator, 3.8m )
Loading…
↗
