F200FET (2013)
ELECTRICAL 4

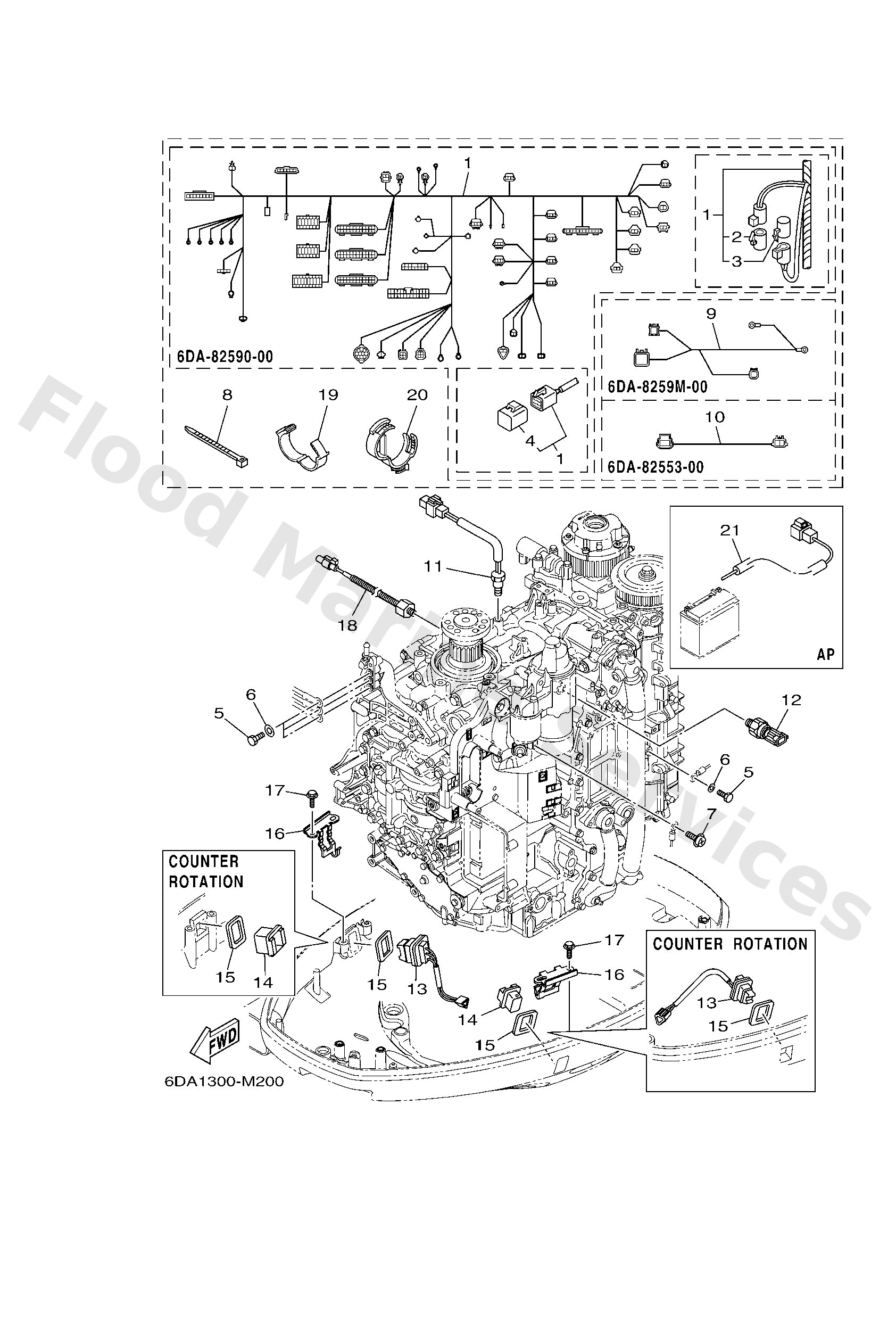

Diagram: ELECTRICAL 4
Parts List
Reference
Description
Price
1
6DA8259000
Wire harness assembly
Loading…
↗
2
6DA8258200
Cap 1 (female)
Loading…
↗
3
6DA8258210
Cap 1 (male)
Loading…
↗
4
6Y88258211
White cap 1 (4pin)
Loading…
↗
5
9709506016
Bolt, hexagon deep recess
Loading…
↗
6
9299506600
Washer, plain (646)
Loading…
↗
7
9798504308
Screw, with washer
Loading…
↗
8
9046511M59
Clamp(63m)
Loading…
↗
9
6DA8259M00
Wire harness assembly 2
Loading…
↗
10
6DA8255300
Extension, wire lead
Loading…
↗
11
6CB8579000
Thermosensor assembly
Loading…
↗
12
6AW8365100
Sender, oil pressure
Loading…
↗
13
69J8256300
Trim & tilt switch assembly
Loading…
↗
14
69J4272301
Cover, bottom
Loading…
↗
15
69J8258700
Gasket
Loading…
↗
16
63P8361401
Bracket
Loading…
↗
17
9589506012
Bolt, flange deep recess
Loading…
↗
18
6CJ8578000
Sensor, knock
Loading…
↗
19
9046426001
Clamp
Loading…
↗
20
9046430003
Clamp
Loading…
↗
21
69J8194902
AP
Wire, lead (isolator, 3.8m )
Loading…
↗
