F20BEP (2022)
ELECTRICAL 4

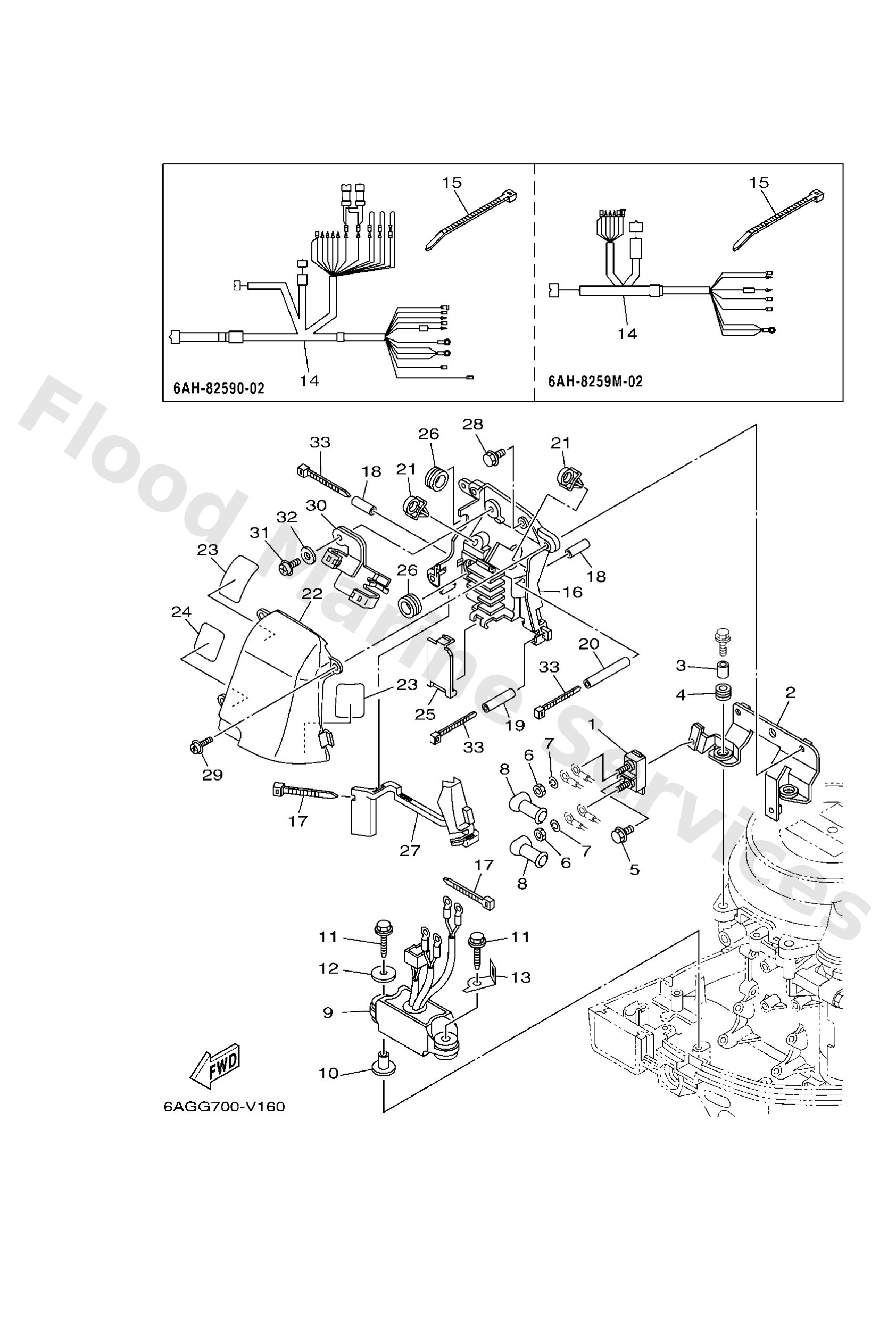

Diagram: ELECTRICAL 4
Parts List
Reference
Description
Price
1
6H58192500
Terminal
Loading…
↗
2
6AH8192901
Bracket, terminal
Loading…
↗
3
9038706182
Collar
Loading…
↗
4
6AH8231701
Damper, ignition coil
Loading…
↗
5
97E9506514
Bolt, hexagon w/w deep recess
Loading…
↗
6
9017006M30
Nut(62x)
Loading…
↗
7
9020406M00
Washer, spring(62x)
Loading…
↗
8
6G58211900
Cover, lead wire
Loading…
↗
9
6AH8195001
Relay assembly
Loading…
↗
10
9038706M03
Collar (676)
Loading…
↗
11
9010906MA2
Bolt
Loading…
↗
12
9020106416
Washer, plate(663)
Loading…
↗
13
6AH8238800
Plate
Loading…
↗
14
6AH8259002
Wire harness assembly
Loading…
↗
14
6AH8259M02
Wire harness assembly 2
Loading…
↗
15
9046513M18
Clamp
Loading…
↗
16
6AH8552A10
Housing
Loading…
↗
18
9044507025
Hose
Loading…
↗
19
9044507026
Hose
Loading…
↗
20
9044507027
Hose
Loading…
↗
21
9046412001
Clamp
Loading…
↗
22
6AH8552E10
Cover, case
Loading…
↗
23
6AH4273511
Protector
Loading…
↗
24
6AH4273521
Protector
Loading…
↗
25
6AH8553710
Cover
Loading…
↗
26
9048019368
Grommet(75v)
Loading…
↗
27
6AH8554711
Damper
Loading…
↗
29
9798506214
Screw, with washer
Loading…
↗
30
6AH8552510
Plate
Loading…
↗
32
9020106068
Washer,plate (6k8)
Loading…
↗
33
9046476001
Clamp
Loading…
↗
