F20GMH (2019)
ELECTRICAL 4

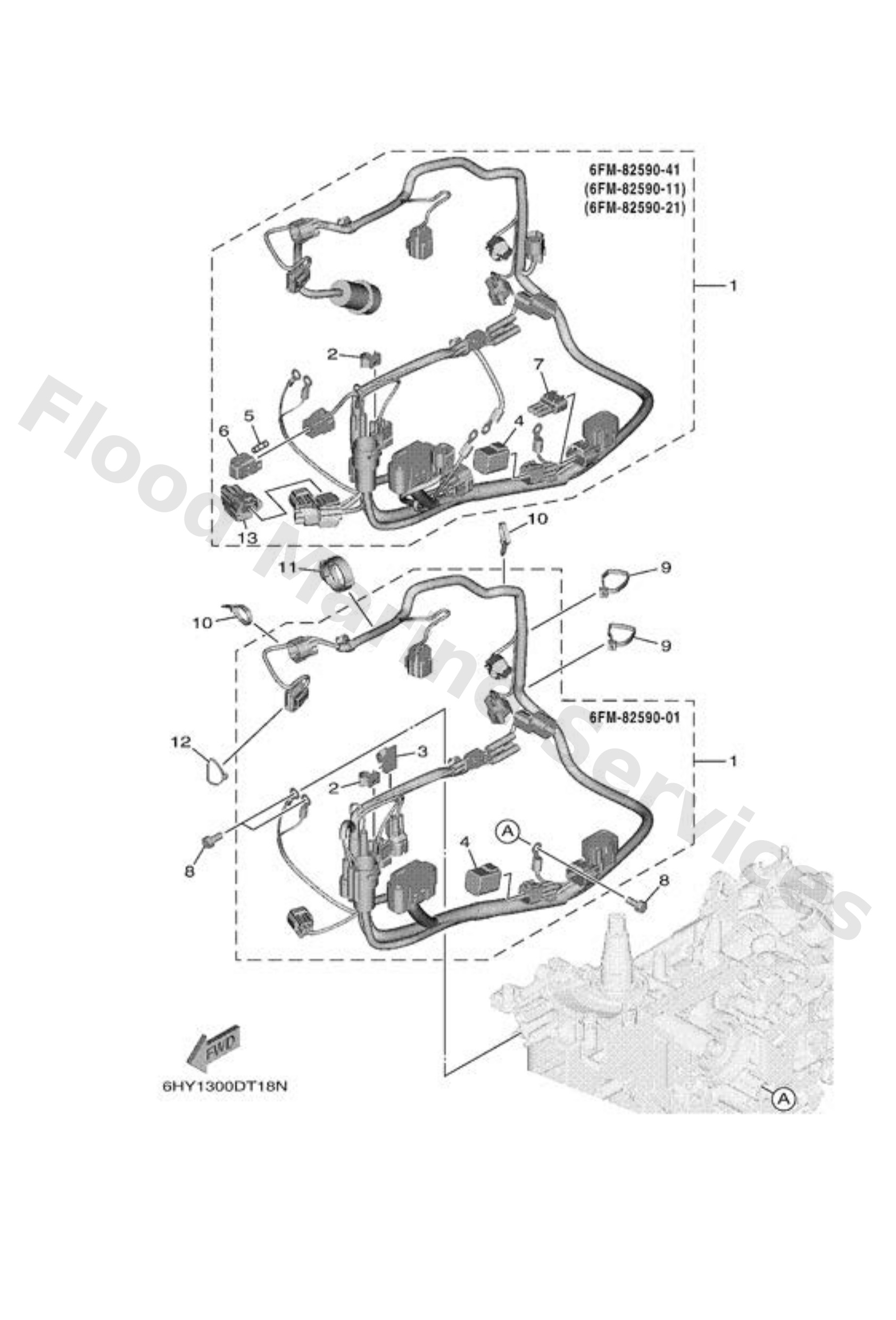

Diagram: ELECTRICAL 4
Parts List
Reference
Description
Price
1
6FM8259001
Wire harness assembly
Loading…
↗
1
6FM8259011
Wire harness assembly
Loading…
↗
1
6FM8259021
Wire harness assembly
Loading…
↗
1
6FM8259041
Wire harness assembly
Loading…
↗
2
9046409M47
Clamp(65j)
Loading…
↗
3
9046412002
Clamp
Loading…
↗
4
6Y88258211
White cap 1 (4pin)
Loading…
↗
5
67F8215100
Fuse
Loading…
↗
6
67F8215B10
Cap (yellow)
Loading…
↗
7
6FM8258200
Cap 1 (3p)
Loading…
↗
8
97E9506516
Bolt, hexagon w/w deep recess
Loading…
↗
9
9046511M52
Clamp(6e7)
Loading…
↗
10
9046513M11
Clamp (6e5)
Loading…
↗
11
9046428003
Clamp
Loading…
↗
12
9046511M59
Clamp(63m)
Loading…
↗
13
6FM8198000
Diode assembly
Loading…
↗
